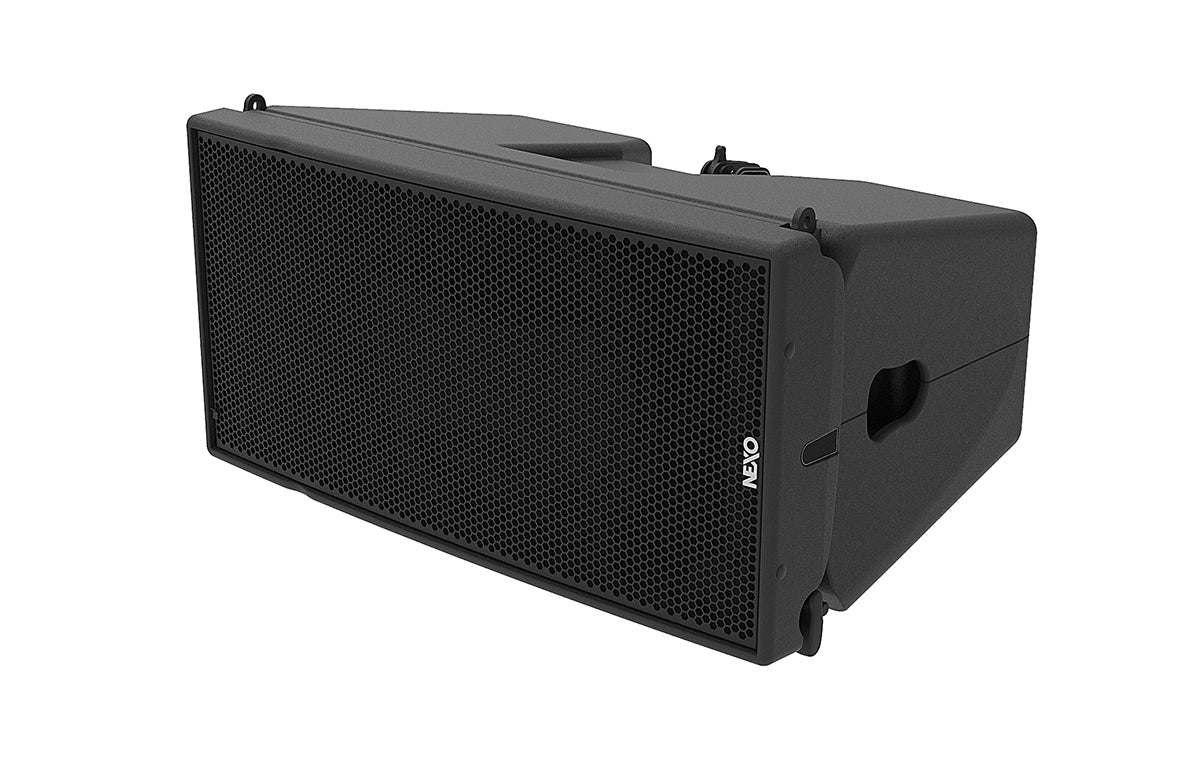

Nexo GEO M1210 Line Array Loudspeaker

Nexo GEO M1210 Line Array Loudspeaker

SoundPro Item: 44336 | Part Number: GEOM1210

$4,909.00
$4,909.00 $4,909.00
Your Price Sold out
MSRP: $4,909.00 | MAP: $4,909.00

Usually ships in 5-7 business days

  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
  • Available in black, white and custom RAL colours
Log in or register for YOUR best price

The GEO M1210 is 2-way passive or active line array element with 12? LF and 3? voice coil / 1.4" throat HF drivers. Measuring 700mm wide x 370mm high x 446mm deep and weighing 34kg, the GEO M1220 is a touring version of the GEOM12 with 10° vertical dispersion. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a honeycomb-structure urethane co-polymer material and feature integral rigging with no loose parts and handles on the rear and sides. GEO M1210 is available in black, white or custom RAL colors.

View full details

Specifications

Frequency Response @-6 dB
50 Hz to 20 kHz
Sensitivity 1W@1m
105 dB SPL Nominal
Peak SPL@1m
140 dB
Vertical Dispersion
10°
Horizontal Dispersion
80° / 120°
Passive Mode Crossover Frequency
1.1 kHz
Nominal Impedance
Active mode: (8 LF + 16 HF) / Passive mode: 8Ω
Recommended Power
Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts
LF Component
1 x 12” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component
1 x 3” voice coil 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Height x Width x Depth
370mm x 700mm x 446 mm (14.6” x 27.6” x17.6”)
Weight: Net
34 kg (75 lbs)
Connectors
2 x NL4, 4 poles connectors
Connectors pinout
Passive mode: (1+/1- Through, 2+/2- GEO M12) / Active Mode: (1+/1- LF, 2+/2- HF)
Active / Passive mode selection
Ruggedized, recessed, waterproof 2 position switch
Construction
Lightweight Polyurethane Composite
Fittings
2 x Side handles horizontal + back grip
Front Finish
Steel front grill + back mesh
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
