• Nexo GEO M1220-I Line Array Loudspeaker
1 1

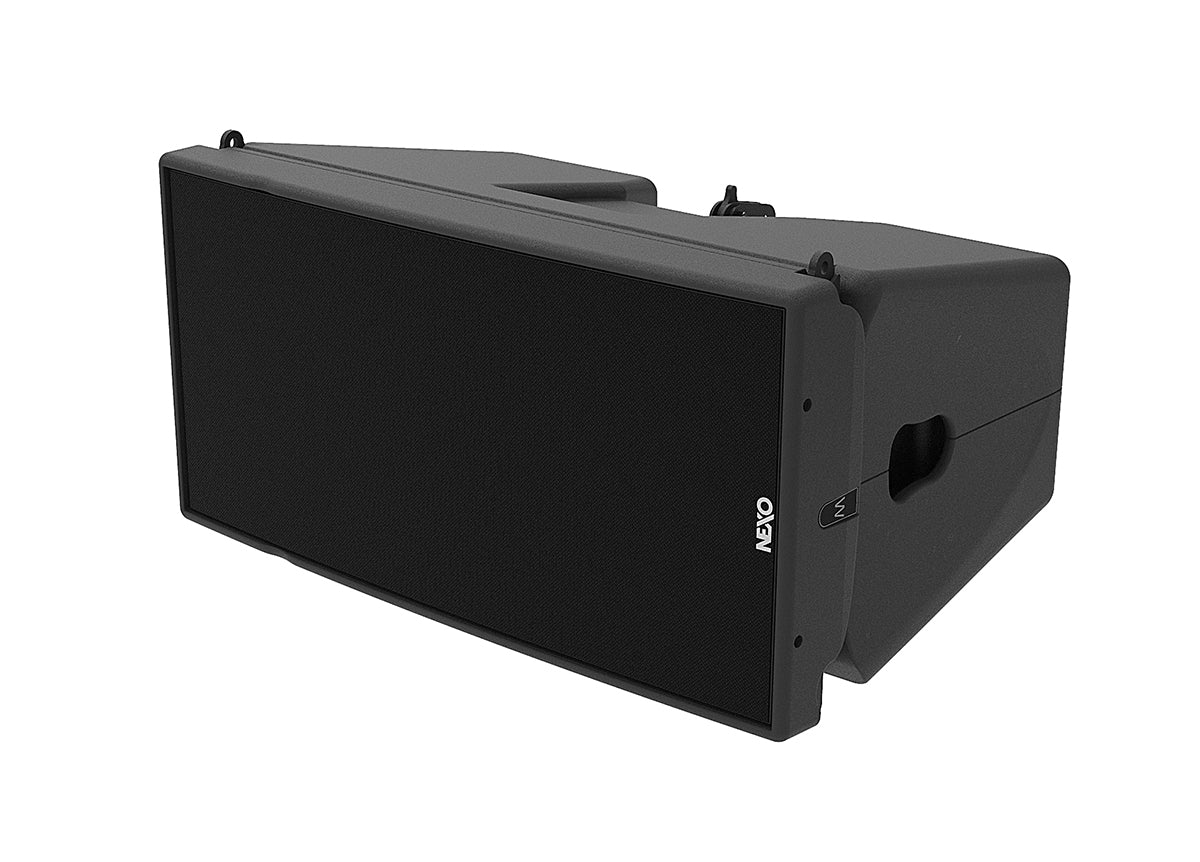

Nexo GEO M1220-I Line Array Loudspeaker

Nexo GEO M1220-I Line Array Loudspeaker

SoundPro Item: 113318 | Part Number: GEOM1220-I

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
  • Available in black, white and custom RAL colours
Log in or register for YOUR best price

The GEO M1220-I is 2-way passive or active line array element with 12? LF and 3? voice coil / 1.4? throat HF drivers. Measuring 700mm wide x 370mm high x 446mm deep and weighing 34kg, the GEO M1220-I is an installation version of the GEOM12 with 20° vertical dispersion. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a honeycomb-structure urethane co-polymer material and feature integral rigging with no loose parts and handles on the rear and sides. GEO M1220-I is available in black, white or custom RAL colors.

View full details

Specifications

Frequency Response @-6 dB
50 Hz to 20 kHz
Sensitivity 1W@1m
105 dB SPL Nominal
Peak SPL@1m
140 dB
Vertical Dispersion
20°
Horizontal Dispersion
80° / 120°
Passive Mode Crossover Frequency
1.1 kHz
Nominal Impedance
Active mode: (8 LF + 16 HF) / Passive mode: 8 Ω
Recommended Power
Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts
LF Component
1 x 12” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component
1 x 3” voice coil 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Height x Width x Depth
370mm x 700mm x 446 mm (14.6” x 27.6” x17.6”)
Weight: Net
34 kg (75 lbs)
Connectors
2 x Cable gland with 4 cores cables
Active / Passive mode selection
Ruggedized, recessed, waterproof 2 position switch
Construction
Lightweight Polyurethane Composite
Fittings
2 x Side handles horizontal + back grip
Front Finish
Acoustic fabric fitted front grill
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
