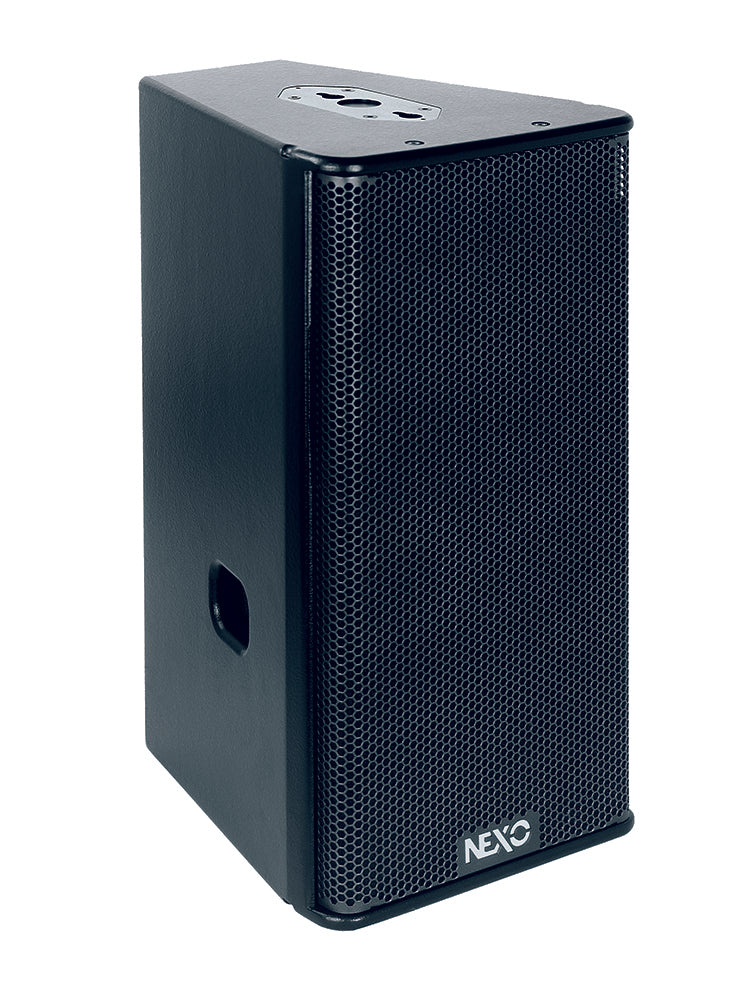

NEXO GEO S1230 Professional Loudspeaker

NEXO GEO S1230 Professional Loudspeaker

SoundPro Item: 15644 | Part Number: GEOS1230

$4,700.00
$4,700.00 $4,700.00
Your Price Sold out
MSRP: $4,700.00 | MAP: $4,700.00

Usually ships in 5-7 business days

  • Coherent Wave Propagation from NEXO's Advanced GEO Hyperbolic Wavesource
  • Advanced Constant Velocity Profile Output from 28.5° Wavefront Curvature
  • Integral Rigging System with Angles from 22.5° to 30°
  • NS-1 Configurable, EtherSoundTM (Network)
Log in or register for YOUR best price

The compact, 2-way GEO S1230 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO's proprietary Directivity Phase Device (DPD). A narrow-Q (30°) device in single-source mode, S1230's unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yielding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.

View full details

Specifications

Frequency response
53Hz - 19kHz ±3dB
Usable range @-6dB
50Hz - 20kHz
Sensitivity
103dB SPL nominal
Peak SPL @ 1m
131 to 133dB Peak (for 500 to 900 W RMS Amplifier)
Dispersion
Coupling Plane: 28.5° Non-Coupling Plane: Configurable 80° / 120°
Crossover frequency
LF- HF: 1.1kHz Passive or Active (internally configurable)
Nominal impedance
16Ω
Recommended amplifiers
3x GEO S1210 in parallel
HF: 875 to 1550W into 4Ω, LF: 1750 to 3100W into 4Ω
4x GEO S1210 in parallel
HF: 1000 to 1800W into 4Ω, LF: 2000 to 3600W into 4Ω
6x GEO S1210 in parallel
HF: 1650 to 3000W into 2Ω, LF: 3300 to 6000W into 2Ω
Components
HF: 1x 3” voice coil, 1.4” throat 16Ω driver on a 30° hyperboloid reflective wavesource
Height x Width x Depth
344 x 674 x 400 mm (13 1/2” x 26 1/2” x 15 1/2”) excluding accessories
Rigging axis to axis height: 345mm (13 1/2”)
Shape
30° Trapezoid
Weight net
26.8kg (59.1lbs) excluding accessories
Connectors
2x NL4MP SPEAKON 4-pole (In & Through)
Construction
Baltic Birch ply with structured black coating
Front finish
Molded dark grey metal grille
Flying points
Two plates connecting with external accessories
Intercabinet angle adjustments = (16°) - 22.5° - 30°
