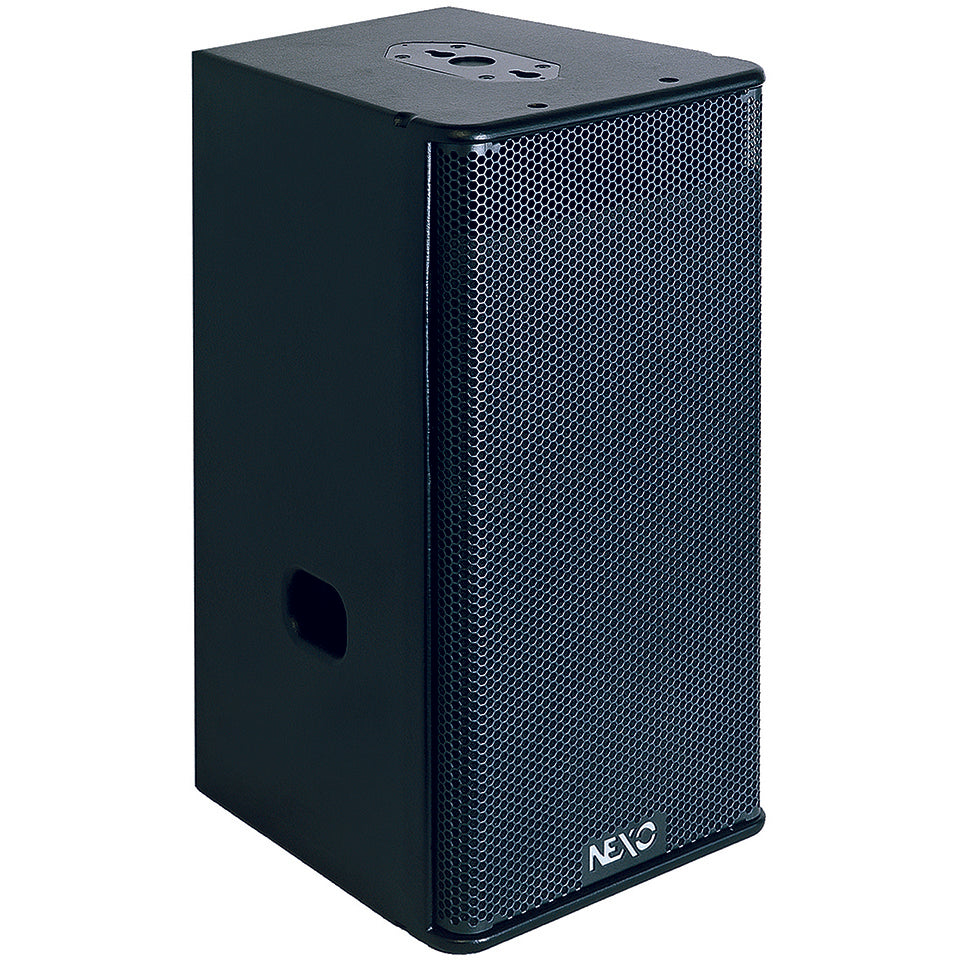

Nexo GEO S1230-ST Column Speaker

Nexo GEO S1230-ST Column Speaker

SoundPro Item: 15645 | Part Number: GEOS1230ST

$5,617.00
$5,617.00 $5,617.00
Your Price Sold out
MSRP: $5,617.00 | MAP: $5,617.00

Usually ships in 5-7 business days

  • High SPL for long-throw applications
  • Enhanced speech intelligibility
  • Coherent Wave Propagation from NEXO's Advanced GEO Hyperbolic Wavesource
  • Advanced Constant Velocity Profile Output from 28.5° Wavefront Curvature
  • NS-1 Configurable, EtherSound™ (Network)
Log in or register for YOUR best price
NEXO's compact, 2-way GEO S1230-ST is a high-output, long throw version of the standard GEO S1230 cabinet, designed for stadium installations. While a narrow-Q (30°) device in single-source mode, S1230-ST's unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1230-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1230-ST's coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°.The S1230-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12? loudspeaker and NEXO's proprietary Directivity Phase Device (DPD).
View full details

Specifications

Frequency response
53Hz - 19kHz ±3dB
Usable range @-6dB
50Hz - 20kHz
Sensitivity 1W @ 1m
105dB SPL nominal
Peak SPL @ 1m
133 to 135dB Peak (for 500 to 900 W RMS Amplifier)
Dispersion
Coupling Plane: 28.5° Non-Coupling Plane: Configurable 80° / 120°
Crossover frequency
LF- HF: 1.1kHz Passive or Active (internally configurable
Nominal impedance
HF: 16Ω; LF: 16Ω
Recommended amplifiers
3x GEO S1230-ST in parallel
HF: 875 to 1550W into 4Ω, LF: 1750 to 3100W into 4Ω
4x GEO S1230-ST in parallel
HF: 1000 to 1800W into 4Ω, LF: 2000 to 3600W into 4Ω-ST
6x GEO S1230 in parallel
HF: 1650 to 3000W into 2Ω, LF: 3300 to 6000W into 2Ω
Components
HF: 1 x 3” voice coil, 1.4” throat 16Ω ND driver on a 5° hyperboloid reflective wavesource
LF: 1 x 12” (30cm) high excursion neodymium 16Ω driver
344 x 675 x 400 mm (13 1/2” x 26 1/2” x 15 1/2”) excluding accessories
Height x Width x Depth
344 x 675 x 400 mm (13 1/2” x 26 1/2” x 15 1/2”) excluding accessories
Rigging axis to axis height: 345mm (13 1/2”)
Shape
30° Trapezoid
Weight net
26.8kg (59.1lbs) excluding accessories
Connectors
2x NL4MP SPEAKON 4-pole (In & Through)
Construction
Baltic Birch ply with structured black coating
Front finish
Molded dark grey metal grille
Flying points
Two plates connecting with external accessories
Intercabinet angle adjustments = (16°) - 22.5° - 30°
