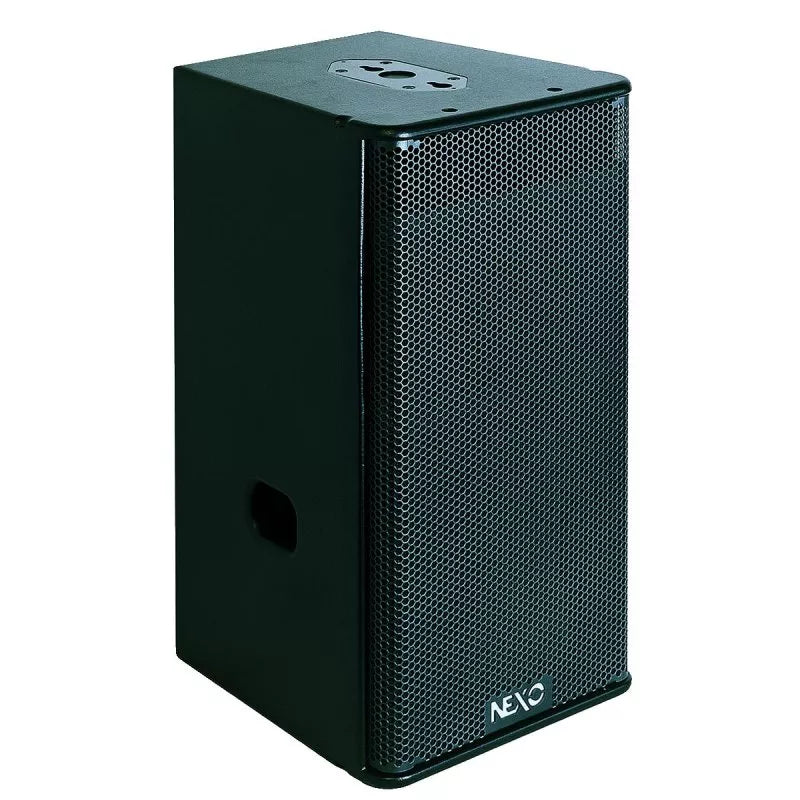

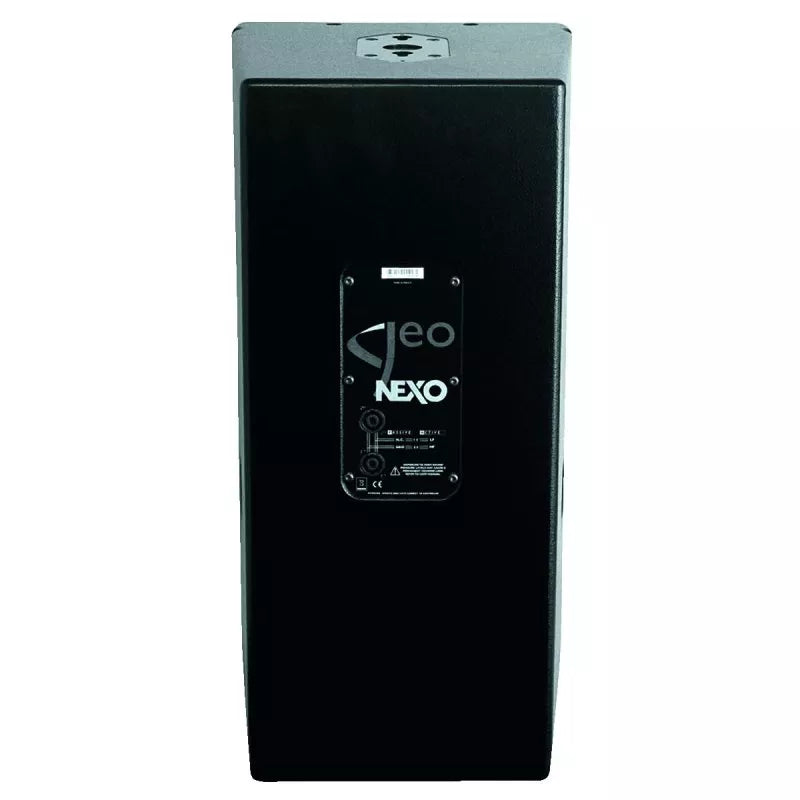

Nexo GEOS1210-PW 12" Scalable Loudspeaker Module (10 degree Trap, White)
Nexo GEOS1210-PW 12" Scalable Loudspeaker Module (10 degree Trap, White)
SoundPro Item: 15605 | Part Number: GEOS1210-PW
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Coherent Wave Propagation
- Advanced Constant Velocity Profile Output from 5.1° Wavefront Curvature
- Integral Rigging System with Angles from 0.20° to 10°
- NS-1 Configurable
- Bottom-Line Engineering for Theatre to Arena-Sized Fixed & Mobile Applications
The compact, 2-way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dBSPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO's proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210's unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional
Coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software. Non-coupled MF/HF coverage is adjustable, via NEXO's patented Configurable Directivity Device (CDD) flanges, at either 80° or 120°. Comprehensive hardware accessories, for both fixed and mobile systems, optimize inter-cabinet angles and rigging. NEXO's NXAMP TDcontroller maximizes S1210's MF/HF coherency while providing EtherSound network control.
Freq Res: 53Hz-19kHz +-3dB
Disp: 80° or 120° in non-coupling plane
HF: 3” voice coil, 1.4” throat
LF: 12” high excursion neodymium driver
Peak SPL: 133dB (for 900W RMS amplifiers)
Sensitivity: 103dB SPL nominal
Nominal Impedance: 16?
Dimensions/Shape (HxWxD): 13 1/2” x 26 1/2” x 14 7/8”, 10° Trapezoid
Weight: 61.8 lbs
Specifications
