• NEXO ID14-I 4-Inch Super Compact Passive Installation Speaker

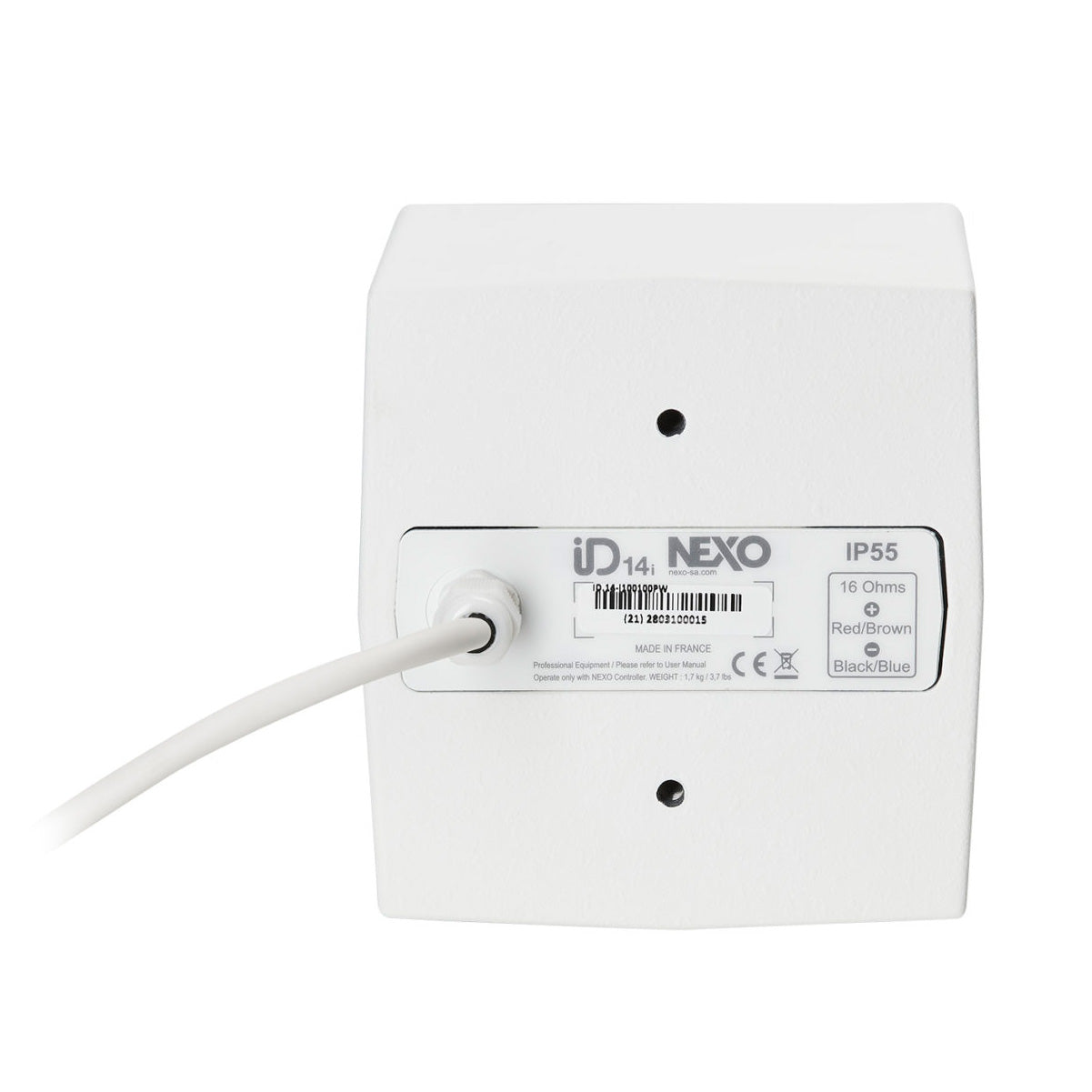

  • NEXO ID14-I 4-Inch Super Compact Passive Installation Speaker back
1 2

NEXO ID14-I 4-Inch Super Compact Passive Installation Speaker | Color: White, Coverage: 100x100

NEXO ID14-I 4-Inch Super Compact Passive Installation Speaker | Color: White, Coverage: 100x100

SoundPro Item: 113328 | Part Number: ID14-I100100-PW

$659.99
$823.00 $659.99
Your Price Sold out
MSRP: $823.00 | MAP: $659.99

Usually ships in 5-7 business days

  • Compact, high-powered sound reinforcement speaker
  • 116 dB peak SPL
  • Measures just 130mm W x 130mm H x 120mm D
  • Available in 100° x 100° and 90° x 140° HF dispersion versions
  • IP55-rated installation version with 2-core cable connectivity
  • Black, white and custom RAL colors available (only black pictured)
Log in or register for YOUR best price

130mm wide, 130mm high and 120mm front to back, the ID14-I is a super-compact full range speaker employing a custom-designed coaxial driver with a 1.3” voice coil for the 4” LF component and a 1.4” diaphragm for the HF motor, delivering smooth, clean sound and impressive power. The Installation version is available in black, white or custom RAL colors and features an acoustic cloth over the front of the grille and captive 2-core cable connectivity.

Thanks to their fully symmetric design, there are there are no left or right versions of the ID14, so all speakers in the inventory can be the same. To ensure maximum versatility, the ID14 can be specified with either 100° x 100° or 90° x 140° HF dispersion. NEXO ID14-I Features

View full details
  • Frequency Response @-6 dB120 Hz to 20 kHz
  • Sensitivity 1W@1m95 dB
  • Peak SPL@1m116 dB
  • Available Crossover Frequencies120, 150 Hz
  • HF Dispersion (upon ordering) 100° x 100° or 90° x 140°
  • Nominal Impedance16 Ohms
  • Recommended Power110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier)
  • Number of ways2 ways passive
  • Components1 x Coaxial Neodymium LF 4” long excursion & HF 1.4“ diaphragm
  • Connectors1 x Cable gland with 2 cores cable
  • Rigging points1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back
  • ConstructionPolyurethane
  • FinishBlack: Raw sandblasted polyurethane / White: Structural paint
  • Front FinishUV Resistant acoustic fabric fitted Magnelis® front grille
  • Operating temperature range0°C - 40°C (32°F - 104°F)
  • Storage temperature range-20°C - 60°C (-4°F - 140°F)
  • Height x Width x Depth130x130x120 mm (5.1x5.1x4.7”)
  • Net Weight1.7 kg (3.7 lbs)
  • System Operation
    • Recommended powering solution:DTDcontroller + DTDAMP4x0.7: up to 4 x ID14 per channel
    • Optional powering solution
      • DTDcontroller + DTDAMP4x1.3: up to 4 x ID14 per channel
      • NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel
      • NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel"
