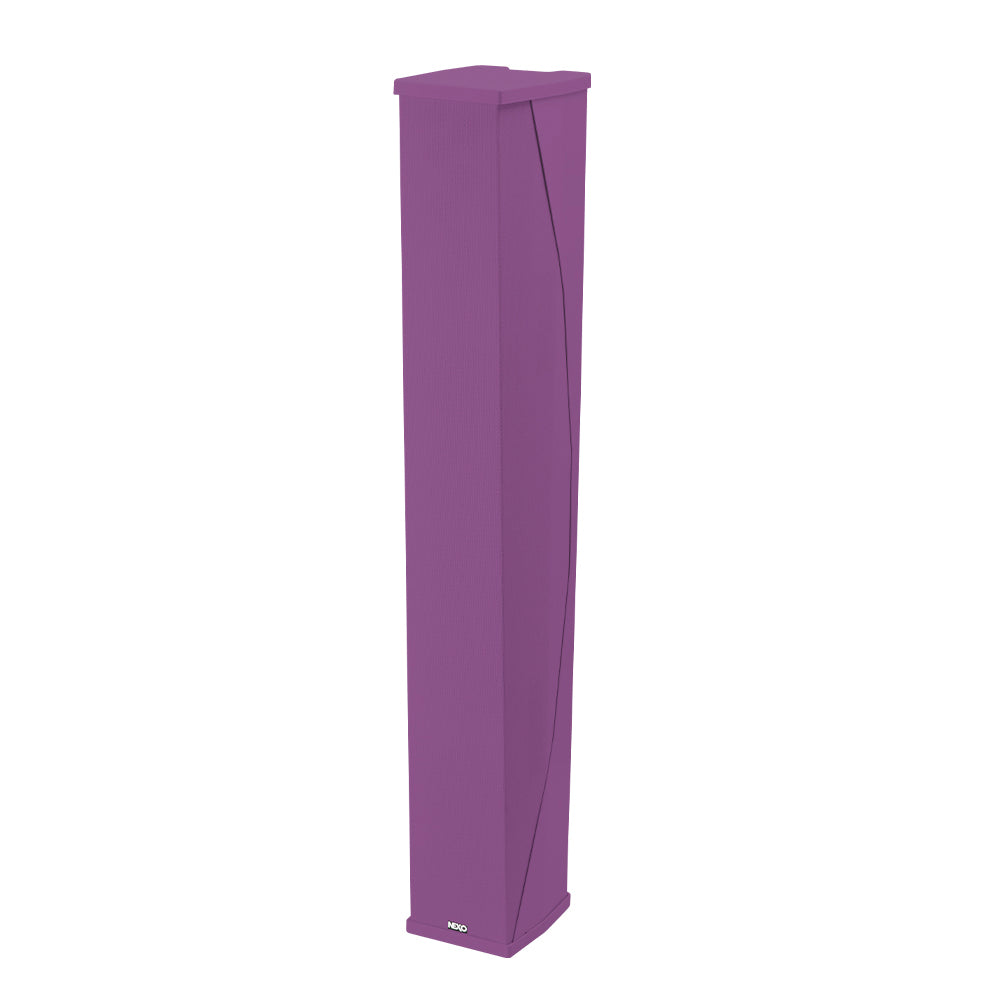

Nexo ID84-TIS Column Speaker

Nexo ID84-TIS Column Speaker

SoundPro Item: 122164 | Part Number: ID84-TIS

$2,754.99
$3,441.00 $2,754.99
Your Price Sold out
MSRP: $3,441.00 | MAP: $2,754.99

Usually ships in 5-7 business days

  • Compact, high-powered column speaker
  • 8 x 4 inch LF drivers + 8 x dome HF drivers in patent-pending arrangement
  • 135 dB peak SPL
  • Switchable +0°/-10° (Narrow Mode) or +0°/-25° (Wide Mode) vertical HF dispersion
  • TIS version with cloth covered grille and Speakon connectivity
  • Black, white and custom RAL colours
Log in or register for YOUR best price

Measuring 150mm wide x 215mm deep x the standard 1m high (39.0? x 5.9? x 8.5?) and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminum cabinet with a rigid steel spine. The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi' performance that extends the ID84's suitability well beyond the traditional column speaker role of voice reproduction into music applications. The ID84 achieves a frequency range of 90Hz to 20kHz with a peak SPL of 136dB. The unique directivity switch on the rear panel enables instant switching of vertical HF dispersion, and cabinets can be linked ‘end-to-end' to create longer columns. Multiple rigging options and a comprehensive range of accessories make it easy to deploy the ID84 in a wide range of fixed installations and mobile applications. Also available in black, white and custom RAL colors, the hybrid TIS version (ID84-TIS) features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.

View full details

Specifications

Frequency Response @-6 dB
90 Hz to 20 kHz
Sensitivity
105 dB SPL Nominal
Peak SPL@1m
135 dB
Available Crossover Frequencies
90 Hz, 120 Hz
HF Dispersion
Vertical: +0°/-10° (Narrow Mode) or +0°/-25° (Wide mode) | Horizontal: 100°
Nominal Impedance
4Ω
Recommended Power
650 to 1080 Watts / 4Ω
Number of ways
2 way passive
Components
LF: 8 x 4" 8 Ohms long excursion Neodymium driver HF: 8 x 1" 8 Ohms HF driver on a patent-pending arrangement
Narrow/Wide Mode Selection
Ruggedized, recessed, waterproof 2 position switch
Connectors
2x NL4 connectors (2+/2-) + 1x integrated connector in the base
Rigging Points
2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6
Construction
Aluminum body and Magnelis® covers & grille
Finish
Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL
Front Finish
UV & Fire resistant acoustic fabric
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth
990mm x 150mm x 215 mm (39.0" x 5.9" x 8.5")
Weight: Net
15 kg (33 lbs)
IP Rating
IP2x
System Operation
Recommended powering solution
NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84 per channel
Electronic controllers
DTDcontroller + DTDAMP4x0.7 : 1 x ID84 per channel
DTDcontroller + DTDAMP4x1.3 : 1 x ID84 per channel
NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84 per channel
NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84 per channel
