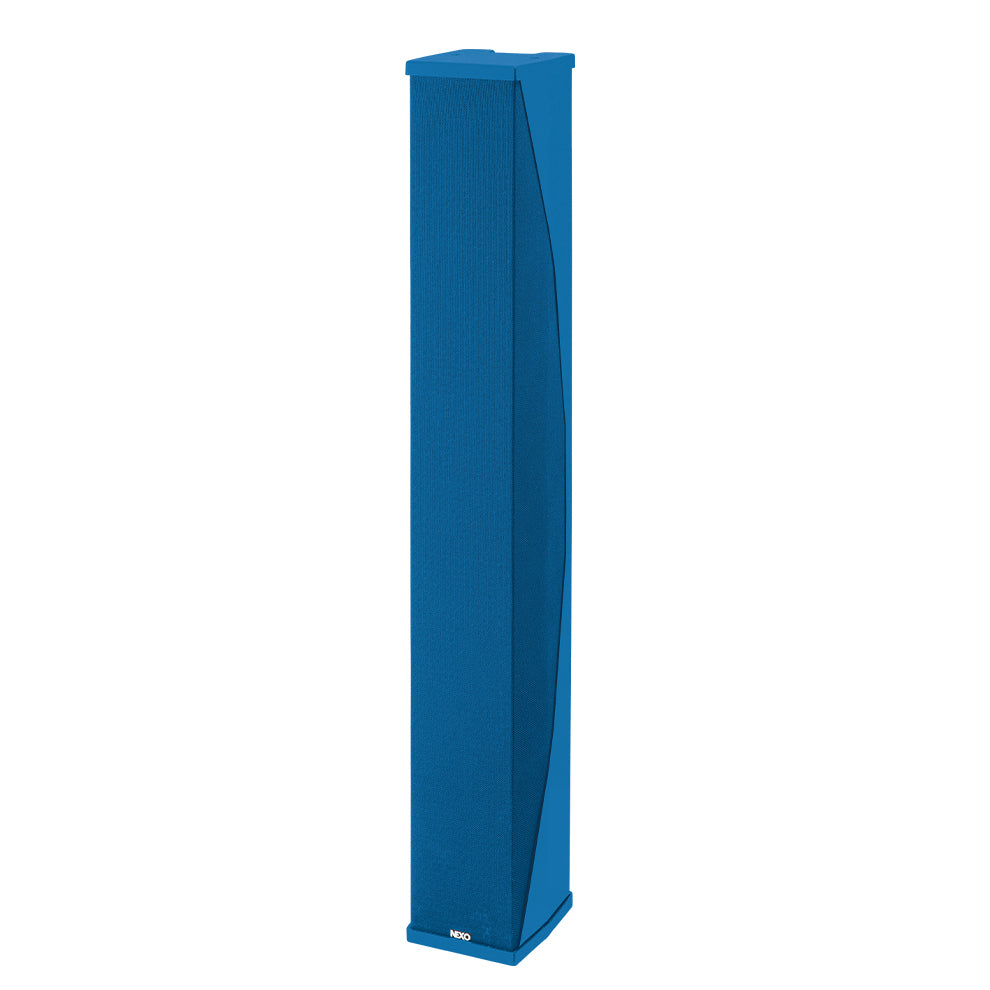

Nexo ID84L-TIS Column Speaker

Nexo ID84L-TIS Column Speaker

SoundPro Item: 122170 | Part Number: ID84L-TIS

$2,194.99
$2,743.00 $2,194.99
Your Price Sold out
MSRP: $2,743.00 | MAP: $2,194.99

Usually ships in 5-7 business days

  • LF extension column speaker
  • 8 x 4 inch LF drivers
  • 132 dB peak SPL
  • TIS version with cloth covered grille and Speakon connectivity
  • Black, white and custom RAL colours
Log in or register for YOUR best price

Also available, the ID84L is an LF extension version of the ID84, identical in every way but without the dome tweeters. The cabinet measures 990mm x 150mm x 163 mm. Also available in black, white and custom RAL colors, the hybrid TIS version (ID84L-TIS) features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.

View full details

Specifications

Frequency Response @-6 dB
90 Hz to 1.5 kHz
Sensitivity
102 dB SPL Nominal
Peak SPL@1m
132 dB
Available Crossover Frequencies
90 Hz, 120 Hz
HF Dispersion
Vertical: Depends on ID84 Main module configuration and assembly | Horizontal: 100°
Nominal Impedance
4Ω
Recommended Power
650 to 1080 Watts / 4Ω
Number of ways
1 way
Components
LF: 8 x 4" 8 Ohms long excursion Neodymium driver
Connectors
2x NL4 connectors (1+/1-)
Rigging Points
2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6
Construction
Aluminum body and Magnelis® covers & grille
Finish
Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL
Front Finish
UV & Fire resistant acoustic fabric
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth
990mm x 150mm x 163 mm (39.0" x 5.9" x 6.4")
Weight: Net
14 kg (31 lbs)
IP Rating
IP2x
System Operation
Recommended powering solution
NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84L per channel
Electronic controllers
DTDcontroller + DTDAMP4x0.7 : 1 x ID84L per channel
DTDcontroller + DTDAMP4x1.3 : 1 x ID84L per channel
NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84L per channel
NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84L per channel
