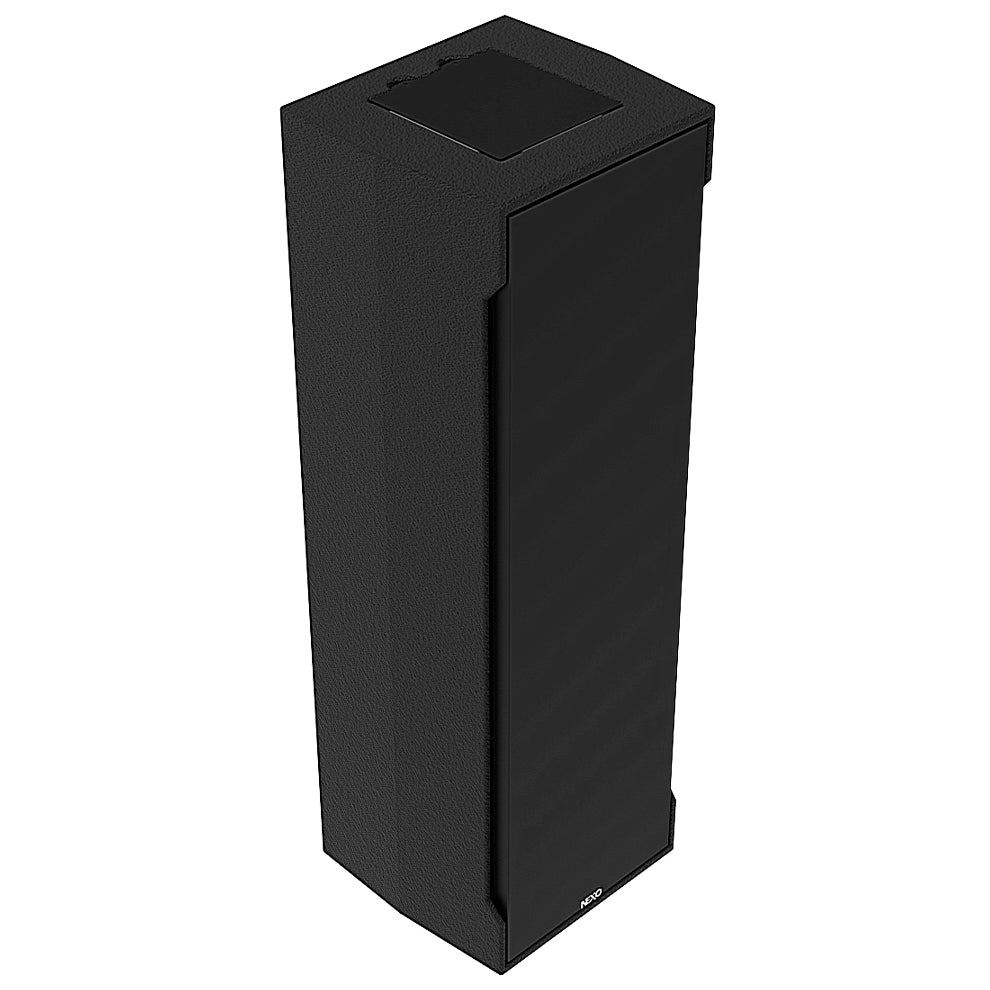

Nexo IDS312-TIS Column Subwoofer

Nexo IDS312-TIS Column Subwoofer

SoundPro Item: 122177 | Part Number: IDS312-TIS

Regular price $2,709.99
Regular price $3,384.00 Sale price $2,709.99
Your Price Sold out
MSRP: $3,384.00 | MAP: $2,709.99

Usually ships in 5-7 business days

  • Powerful column sub that can be stacked with or without its companion main speaker the ID84
  • Can be stacked horizontally or vertically
  • Ideal size to bring the ID84 to the audience height
  • Lightweight (31 kg / 68 lbs) using Neodymium drivers and birch plywood enclosure
  • TIS version with cloth covered grille and Speakon connectivity
  • Black, white and custom RAL colours

Measuring 1160mm x 380mm x 350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top, extending system LF response down to 40Hz and creating a full range system that's 2 metres in height. Constructed from 15mm Baltic birch plywood, the IDS312 also features rubber strips to isolate vibration in horizontally-mounted applications. Also available in black, white and custom RAL colors, the hybrid TIS version (IDS312-TIS) is IP2X rated and features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.

View full details

Specifications

Frequency Response @-6 dB
40 Hz to 120 Hz
Sensitivity
105 dB SPL Nominal
Peak SPL@1m
138 dB
Available Crossover Frequencies
40-85 Hz, 40-120 Hz, 40-150 Hz, 63-120 Hz, 63-150 Hz
Nominal Impedance
Recommended Power
1300 to 2100 Watts / 2Ω
Components
3 x Neodymium 12" 6 Ohms long excursion
Connectors
2 NL4 connectors (1+/1- & 2+/2-) + Quick connect system for ID84
Rigging Points
1 x pair of M6 rigging points to link the IDS312 to a base plate
Construction
15mm baltic birch plywood
Finish
Black structural paint (RAL9005), White structural paint (RAL9016) or Custom RAL
Front Finish
UV & Fire resistant acoustic fabric
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth
1160mm x 380mm x 350mm (45.7" x 15.0" x 13.8")
Weight: Net
31 kg (68 lbs)
IP Rating
IP2X
System Operation
Recommended powering solution
NXAMP4x1mk2 Powered TDcontroller: 1 x IDS312 per channel
Electronic controllers
NXAMP4x2mk2 Powered TDcontroller: 1 x IDS312 per channel
NXAMP4x4mk2 Powered TDcontroller: 1 x IDS312 per channel
