• NEXO L20 20-Inch Band-Pass Horn Loaded Subwoofer
1 1

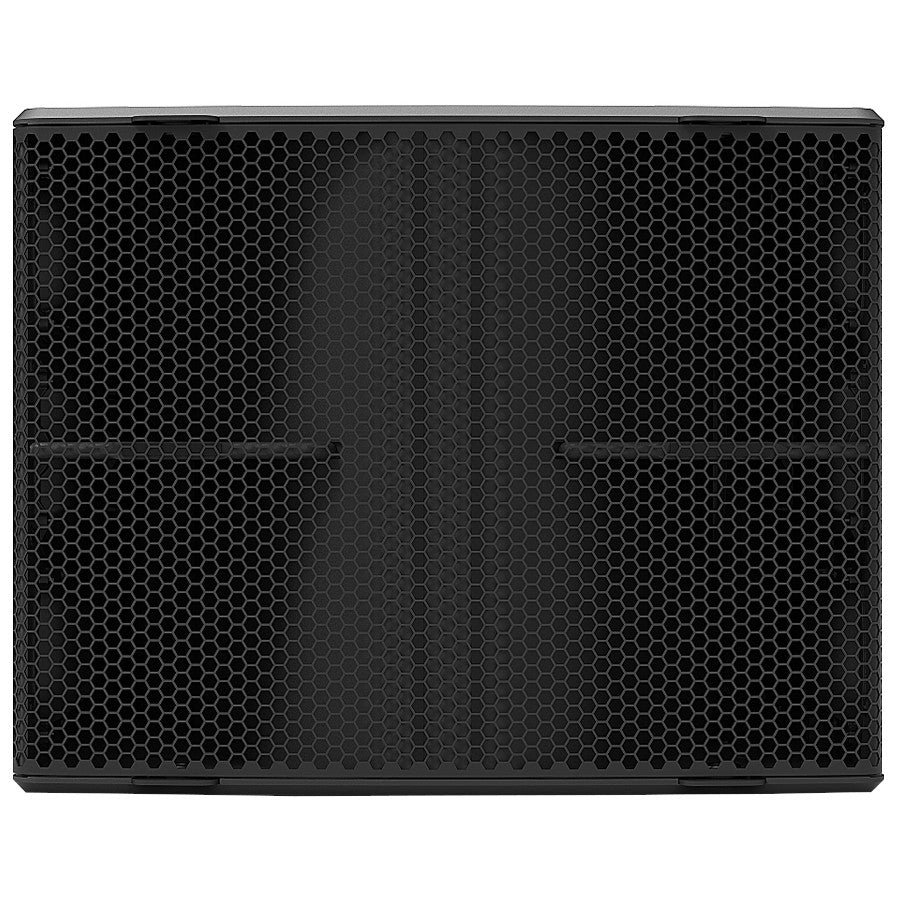

NEXO L20 20-Inch Band-Pass Horn Loaded Subwoofer

NEXO L20 20-Inch Band-Pass Horn Loaded Subwoofer

SoundPro Item: 141332 | Part Number: L20

$5,499.00
$5,499.00 $5,499.00
Your Price Sold out
MSRP: $5,499.00 | MAP: $5,499.00

Usually ships in 5-7 business days

  • Dedicated partner sub for P18 with matching footprint
  • Extends LF performance to 28Hz
  • 141dB peak SPL
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20
Log in or register for YOUR best price

With a frequency range of 28Hz-120Hz, and 141dB Peak SPL, the L20 is specially designed in a footprint to match the P18, making it a perfect partner in flown applications, and for use as a drum fill or side fill.

Measuring 755mm wide x 594mm high x 905mm deep and weighing 59Kg, the L20 sub employs a 20” long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting.

View full details
  • Frequency Response @-6 dB28 Hz to 120 Hz
  • Peak SPL@1m141 dB Peak
  • Operating Voltage80 Vrms (180 Vpeak)
  • Crossover Frequency60 Hz, 85 Hz or 120 Hz
  • Nominal Impedance4 Ohms
  • Components1 x Neodymium 20” 4 Ohms long excursion
  • Connectors2 x NL4, 4 poles connectors
  • Rigging points1 x universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
  • MaterialCustom made bent plywood of baltic birch and poplar
  • FinishBlack or White structural paint
  • Front FinishSteel front grille
  • Height x Width x Depth594x755x905 mm (23.4x29.7x35.6”)
  • Weight: Net59 kg (130 lbs)
  • Operating temperature range0°C - 40 °C (32° F - 104° F)
  • Storage temperature range-20°C - 60°C (-4°F - 140°F)
  • System Operation
    • Recommended powering solution:NXAMP4x4mk2 Powered TDcontroller: Up to 2 x L20 per channel
    • Optional powering solution
      • NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x L20 per channel
      • NXAMP4x2mk2 Powered TDcontroller (Bridged): 1 x L20 per channel"
