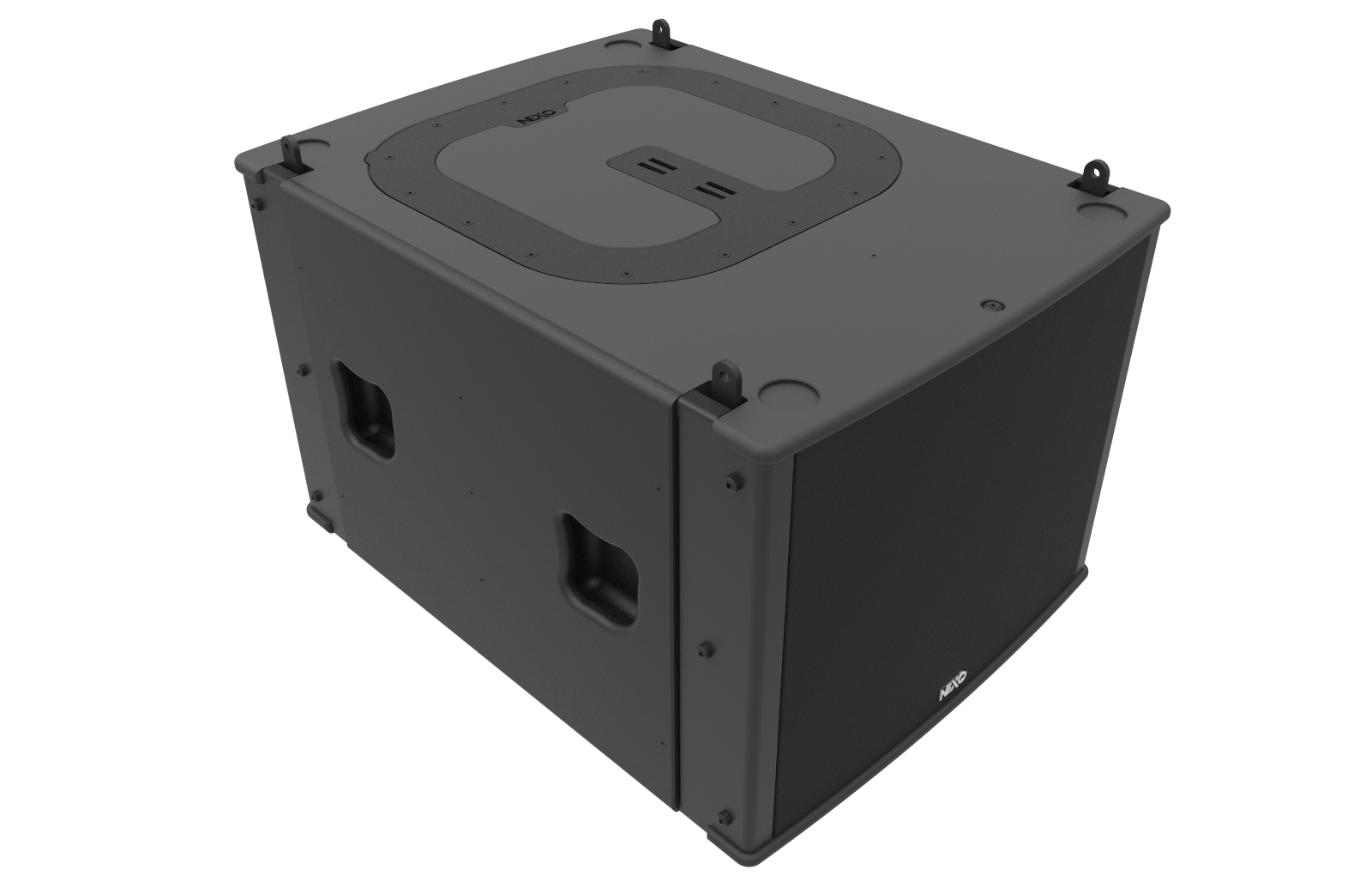

Nexo MSUB15-I High Performance Subwoofer

Nexo MSUB15-I High Performance Subwoofer

SoundPro Item: 74551 | Part Number: MSUB15-I

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
  • Installation version features acoustic fabric grille and cable connectors
Log in or register for YOUR best price

Measuring 437mm wide x 531mm high x 704mm deep and weighing 40Kg, the MSUB15-I is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 15″ diameter / 3″ voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15-I can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colors. The Installation version features an acoustic fabric grille and cable connectors (front and back).

View full details

Specifications

Frequency Response @-6 dB
40 Hz to 120 Hz
Sensitivity 1W@1m
101 dB SPL Nominal
Peak SPL@1m
136 dB
Available Crossover Frequencies
40-65, 40-75, 40-85, 40-95, 40-120 Hz
Nominal Impedance
8 Ohms
Recommended Power
900 Watts
Component
1 x 15” 8 Ohms long excursion Neodymium driver
Height x Width x Depth
437mm x 531mm x 704mm (17.2” x 20.9” x 27.7”)
Weight: Net
40 kg / 89 lbs
Connectors
2 x Cable gland with 2 cores cables
Construction
Baltic Birch Plywood & textured black or white coating
Fittings
4 x Side handles
Front Finish
Acoustic fabric fitted from grill
Operating temperature range
0°C - 40 °C
Storage temperature range
-20 °C - 60 °C
System Operation
Recommended powering solution
NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel
Optional powering solution
NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel
NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel
DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel
