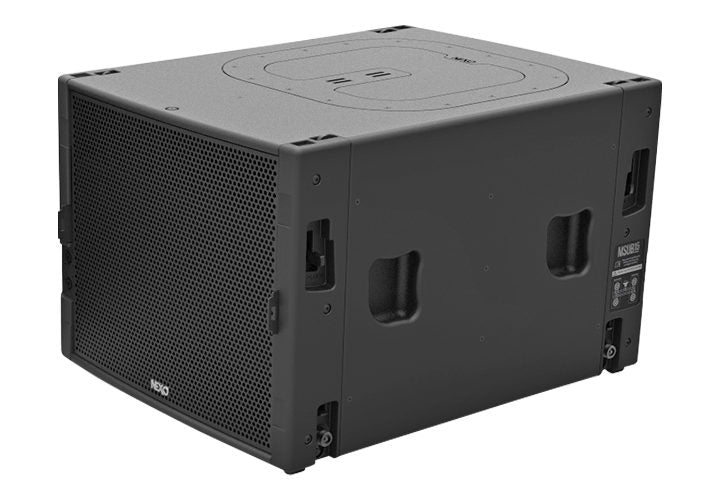

NexoO MSUB15 Passive Subwoofer

NexoO MSUB15 Passive Subwoofer

SoundPro Item: 74612 | Part Number: MSUB15

$4,569.00
$4,569.00 $4,569.00
Your Price Sold out
MSRP: $4,569.00 | MAP: $4,569.00

Usually ships in 5-7 business days

  • Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
  • Touring version with steel grille and Speakon connectors
Log in or register for YOUR best price

Measuring 437mm wide x 531mm high x 704mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 15" diameter / 3" voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colors. The touring version features a steel front grille and Speakon connectors (front and back).

View full details

Specifications

Frequency Response @-6 dB
40 Hz to 120 Hz
Sensitivity 1W@1m
101 dB SPL Nominal
Peak SPL@1m
136 dB
Available Crossover Frequencies
40-65, 40-75, 40-85, 40-95, 40-120 Hz
Nominal Impedance
8 Ohms
Recommended Power
900 Watts
Component
1 x 15” 8 Ohms long excursion Neodymium driver
Height x Width x Depth
437mm x 531mm x 704mm (17.2” x 20.9” x 27.7”)
Weight: Net
40 kg / 89 lbs
Connectors
4 x NL4, 4 poles connectors (1+/1- MSUB15 / 2+/2- Through)
Construction
Baltic Birch Plywood & textured black or white coating
Fittings
4 x Side handles
Front Finish
Steel front grill + back mesh
Operating temperature range
0°C - 40 °C
Storage temperature range
-20 °C - 60 °C
System Operation
Recommended powering solution
NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel
Optional powering solution
NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel
NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel
DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel
