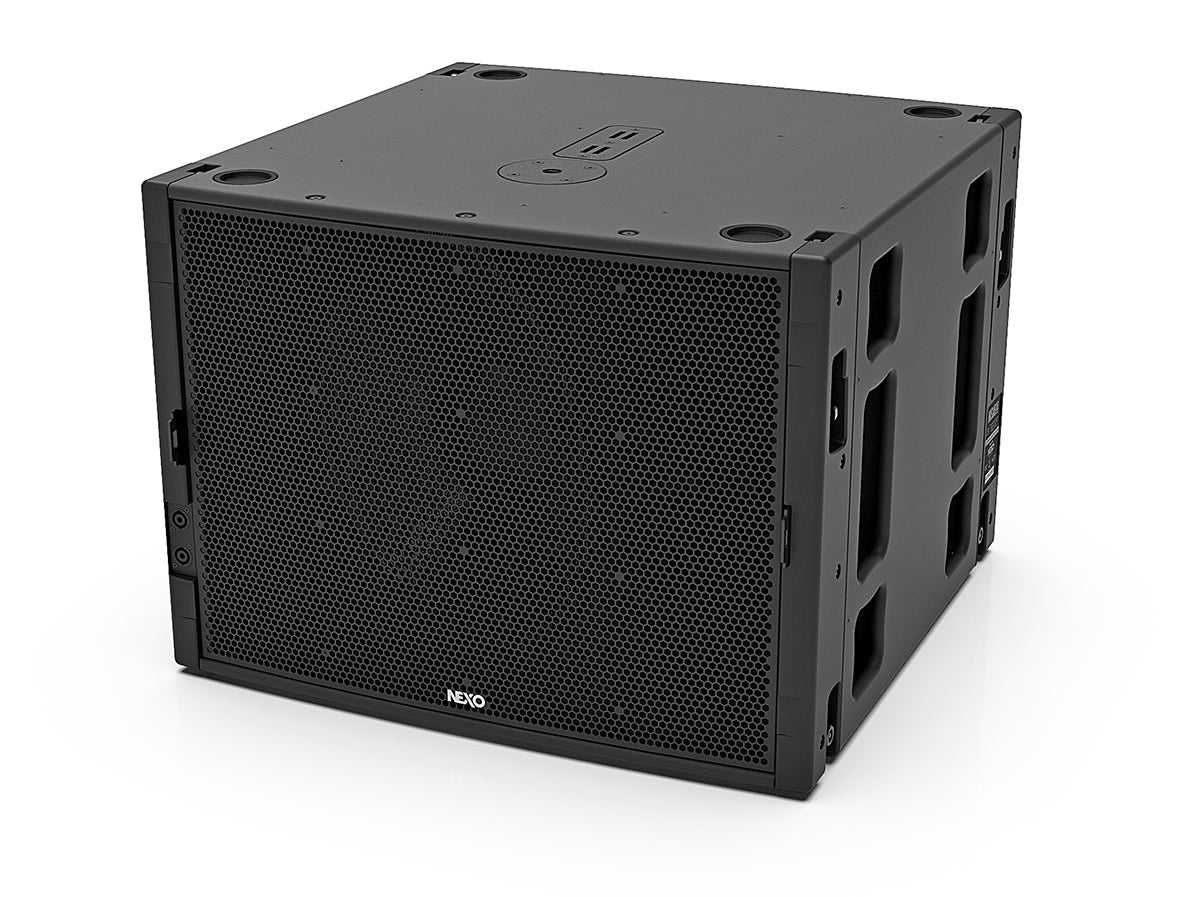

Nexo MSUB18 Arrayable Subwoofer

Nexo MSUB18 Arrayable Subwoofer

SoundPro Item: 44338 | Part Number: MSUB18

$5,179.00
$5,179.00 $5,179.00
Your Price Sold out
MSRP: $5,179.00 | MAP: $5,179.00

Usually ships in 5-7 business days

  • Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
  • Available in black, white and custom RAL colours
Log in or register for YOUR best price

Measuring 701mm wide x 525mm high x 704mm deep and weighing 55 kg, the MSUB18 is the same width as the GEO M12 main cabinet, and 41% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 18" diameter voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB18 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colors. The MSUB18 is the touring version.

View full details

Specifications

Frequency Response @-6 dB
32 Hz to 120 Hz
Sensitivity 1W@1m
107 dB SPL Nominal
Peak SPL@1m
139 dB
Available Crossover Frequencies
32-65, 32-75, 32-85, 32-95, 32-120 Hz
Nominal Impedance
4 Ohms
Recommended Power
2000 Watts
Component
1 x 18” 4 Ohms very long excursion Neodymium driver
Height x Width x Depth
525mm x 701mm x 704mm (20.6” x 27.6” x 27.7”)
Weight: Net
55 kg / 122 lbs
Connectors
4 x NL4, 4 poles connectors (1+/1- MSUB18 / 2+/2- Through)
Construction
Baltic Birch Plywood & textured black or white coating
Fittings
8 x Side handles
Front Finish
Steel front grill + back mesh
Operating temperature range
0°C - 40 °C
Storage temperature range
-20 °C - 60 °C
