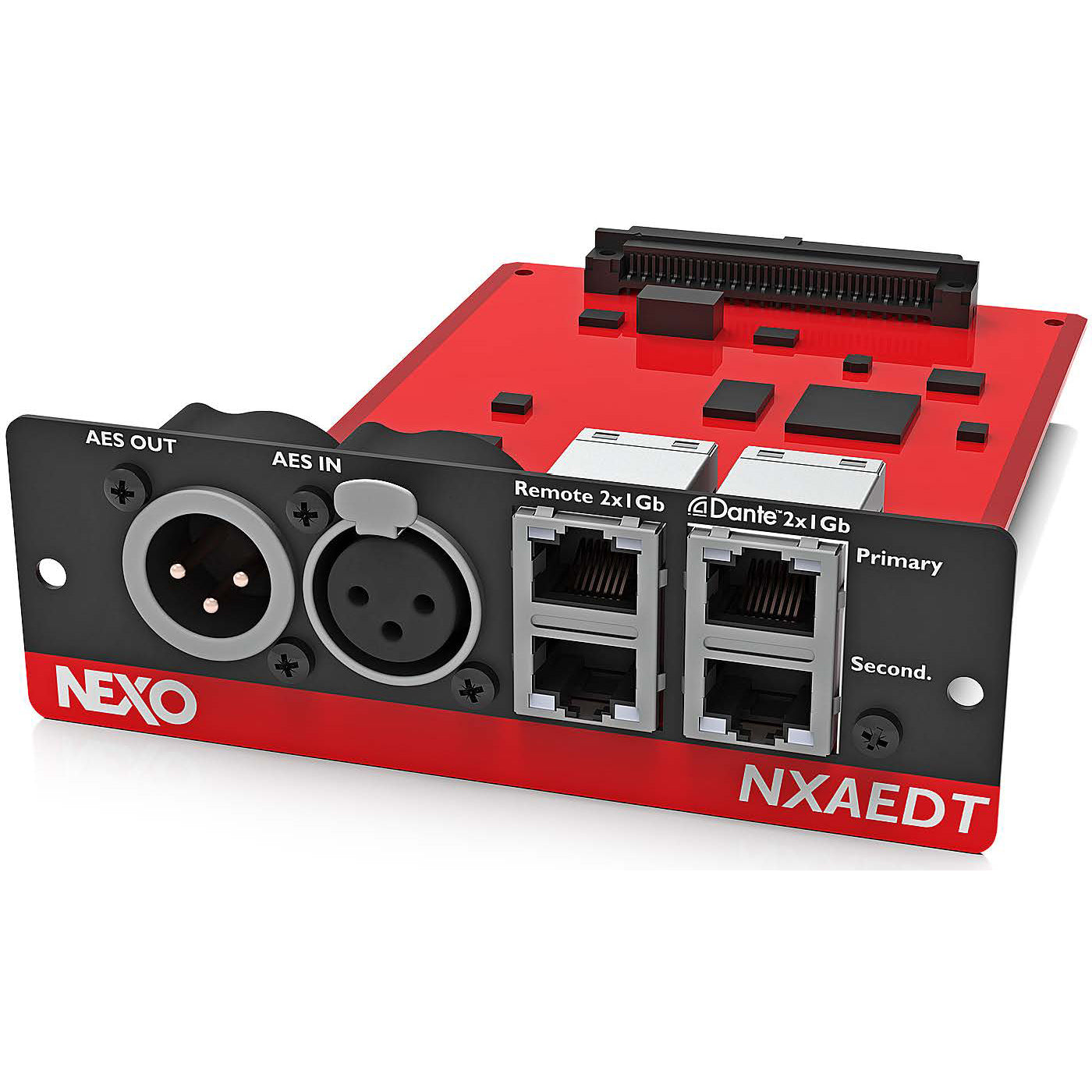

Nexo NXAEDT Digital Inputs Extension Card

Nexo NXAEDT Digital Inputs Extension Card

SoundPro Item: 138963 | Part Number: NXAEDT

$1,019.99
$1,273.00 $1,019.99
Your Price Sold out
MSRP: $1,273.00 | MAP: $1,019.99

Usually ships in 5-7 business days

  • Adds both AES/EBU and DanteTM inputs to NXAMPmk2 Powered Controllers
  • 4 channels of DanteTM inputs with Switched/Redundant mode and 44.1 kHz to 96 kHz digital audio support
  • 2 channels of AES/EBU inputs with buffered outputs and 44.1 kHz to 96 kHz digital audio support
  • Highly flexible 4 ports gigabit switch with 4 different configuration modes
  • Remote control ports configurable as separate network or from the DanteTM network
Log in or register for YOUR best price

Digital Inputs extension card for NXAMPmk2, Not compatible with first-generation NXAMPmk1.

View full details

Specifications

DIGITAL AUDIO 1 INPUT FORMAT
Digital Audio type
DanteTM networks
Media type
Standard TCP/IP over 1minimum 100 Mb / recommended 1 Gb ethernet network
Number of channels
4 channels from up to 4 different DanteTM devices
Resolution
24 bits
Sample Rate
44.1, 48, 88.2 or 96 kHz
Latency
0.25 ms to 5.0 ms (typical 1 ms)
DIGITAL AUDIO 2 INPUT FORMAT
Digital Audio type
AES/EBU
Media type
110 Ohms 3 wires twisted pair with XLR connector
Number of channels
2
Resolution
24 bits
Sample Rate
44.1, 48, 88.2 or 96 kHz
Latency
<0.07 ms
REMOTE CONTROL FORMAT
Network format
Standard TCP/IP
Device addressing
Automatic, based on IP address with Zeroconf
FRONT PANEL FEATURES
Digital audio 1 input/link connectors
4x shielded 1 Gb RJ45 connectors
Digital audio 2 input/link connectors
1x XLR-F and 1x XLR-M buffered output with fail safe relay
LEDs on network ports
Link/Activity (Green) and Gigabit (Orange)
GENERAL SPECIFICATIONS
Height x Width x Depth (Net)
40mm x 120mm x 170mm (1.6” x 4.7” x 6.7”)
Height x Width x Depth (Gross)
56mm x 166mm x 225mm (2.2” x 6..5“ x 8.9”)
Weight (Net)
160 g
Weight (Gross)
300 g
Operating temperature range
0° C - 40 °C (32° F - 104° F)
Storage temperature range
-20° C - 60° C (-4° F - 140° F)
SYSTEM OPERATION
Compatible Host
NXAMPmk2 Powered TD Controllers
