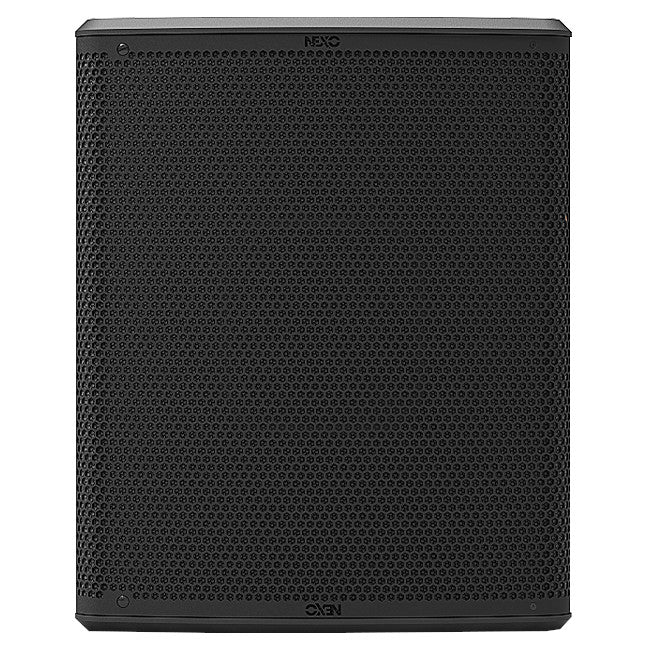

• NEXO P12 12-Inch High Output Compact Point Source Speaker
1 1

NEXO P12 12-Inch High Output Compact Point Source Speaker | Color: Black, Version: Install

NEXO P12 12-Inch High Output Compact Point Source Speaker | Color: Black, Version: Install

SoundPro Item: 55483 | Part Number: P12-I

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Available in black or white finishes (white not pictured)
  • Choose from touring or install models
  • Compact, low-profile, curvilinear enclosure
  • 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes
  • 140dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions
Log in or register for YOUR best price

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 534mm x 432mm x 314mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colors and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

View full details

Specifications

Audio
Frequency Response (+6 dB)
60 Hz - 20 kHzSensitivity 1W@1m107 dBPeak SPL Level (1m)138dB Peak (Passive mode) / 140dB Peak (Active mode)Recommended Amplifiers800 to 1250W / 8ΩHF Dispersion (according to horns) 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°Crossover Frequency60 Hz, 85 Hz, 120 HzNominal ImpedanceActive mode (8Ω LF, 8Ω HF), Passive mode: 8ΩRecommended PowerActive: (800 to 1270W LF + 400 to 630W HF) / Passive: 800 to 1270WComponentsLF: 1x12" - 8Ω; HF : 1x3" - 8Ω - Neodymium driverNumber of ways (Touring/TIS versions) 2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchableNumber of ways (Install version) 2 ways passivesConnectors (Touring/TIS versions) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)Connectors (Install version) 1 x Cable gland with 2 cores cableRigging points1 x universal accessory fit on each side + 1 x on the bottomMaterialCustom made bent plywood of baltic birch and poplarFinishBlack or White structural paintFront Finish (Touring version) Steel front grille + back meshFront Finish (Install/TIS versions) Acoustic fabric fitted front grilleNet Weight 20 kg (44 lbs)Height x Width x Depth534x432x314 mm (21x17x12.3”)Operating Temperature Range0°C - 40°C (32°F - 104°F)Storage Temperature Range-20°C - 60°C (-4°F - 140°F)System OperationRecommended Powering Solution:NXAMP4X2MK2: Up to 2 x P12 per channelOptional powering solutionDTDcontroller + DTDAMP4x0.7 : 1 x P12 per channel NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P12 per channel NXAMP4x4mk2 Powered TDcontroller: up to 4 x P12 per channel"
