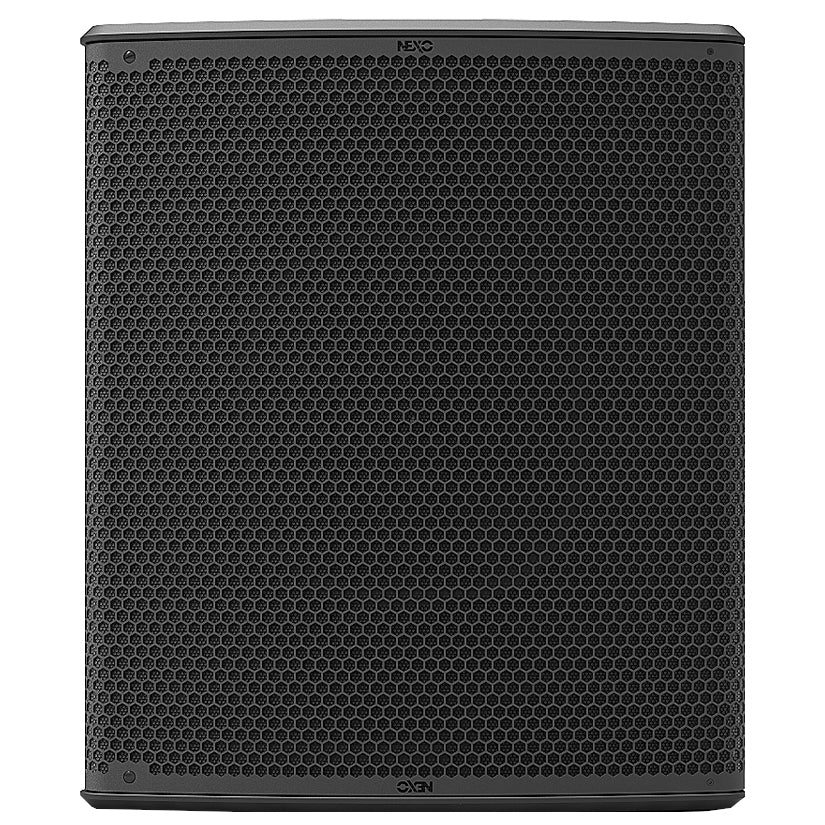

• NEXO P18 18-Inch High Output Compact Point Source Speaker
1 1

NEXO P18 18-Inch High Output Compact Point Source Speaker

NEXO P18 18-Inch High Output Compact Point Source Speaker

SoundPro Item: 141331 | Part Number: P18

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Compact, low-profile, curvilinear enclosure
  • 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes (Touring and TIS versions)
  • 142dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions
Log in or register for YOUR best price

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours (Passive only) and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

View full details

Specifications

Audio
Frequency Response @-6 Db
50 Hz to 20 kHzSensitivity 1W@1m107 dB SPL NominalPeak SPL@1m140 dB Peak (Passive mode) / 142 dB Peak (Active mode)Operating Voltage55 Vrms (180 Vpeak)HF Dispersion (according to flanges) 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)Crossover Frequency50 Hz, 85 Hz, 120 HzNominal ImpedanceActive: (8 Ohms LF + 8 Ohms HF)Passive: 8 Ohms Recommended PowerActive: (1200 to 1900W LF + 600 to 950 W HF)Passive: 1200 to 1900WComponents1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 OhmsNumber of ways (Touring and TIS version) 2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchableNumber of ways (Install version) 2 ways passiveConnectors (Touring and TIS version) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)Connectors (Install version) 1 x Cable gland with 2 cores cableRigging points1 x universal accessory fit on each side + 1 x on the bottomMaterialCustom made bent plywood of baltic birch and poplarFinishBlack or White structural paintFront Finish (Touring version) Magnelis® front grille + back fabric behindFront Finish (Install and TIS version) Acoustic fabric fitted front grilleHeight x Width x Depth680x579x446mm (26.8x22.8x17.6”)Net Weight33 kg (73 lbs)Operating temperature range0°C - 40°C (32°F - 104°F)Storage temperature range-20°C - 60°C (-4°F - 140°F)System OperationRecommended powering solution:NXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channelOptional powering solutionDTDcontroller + DTDAMP4x0.7 (Bridged): 1 x P18 per bridged channels NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P18 per bridged channels NXAMP4x2mk2 Powered TDcontroller: 1 x P18 per channel"
