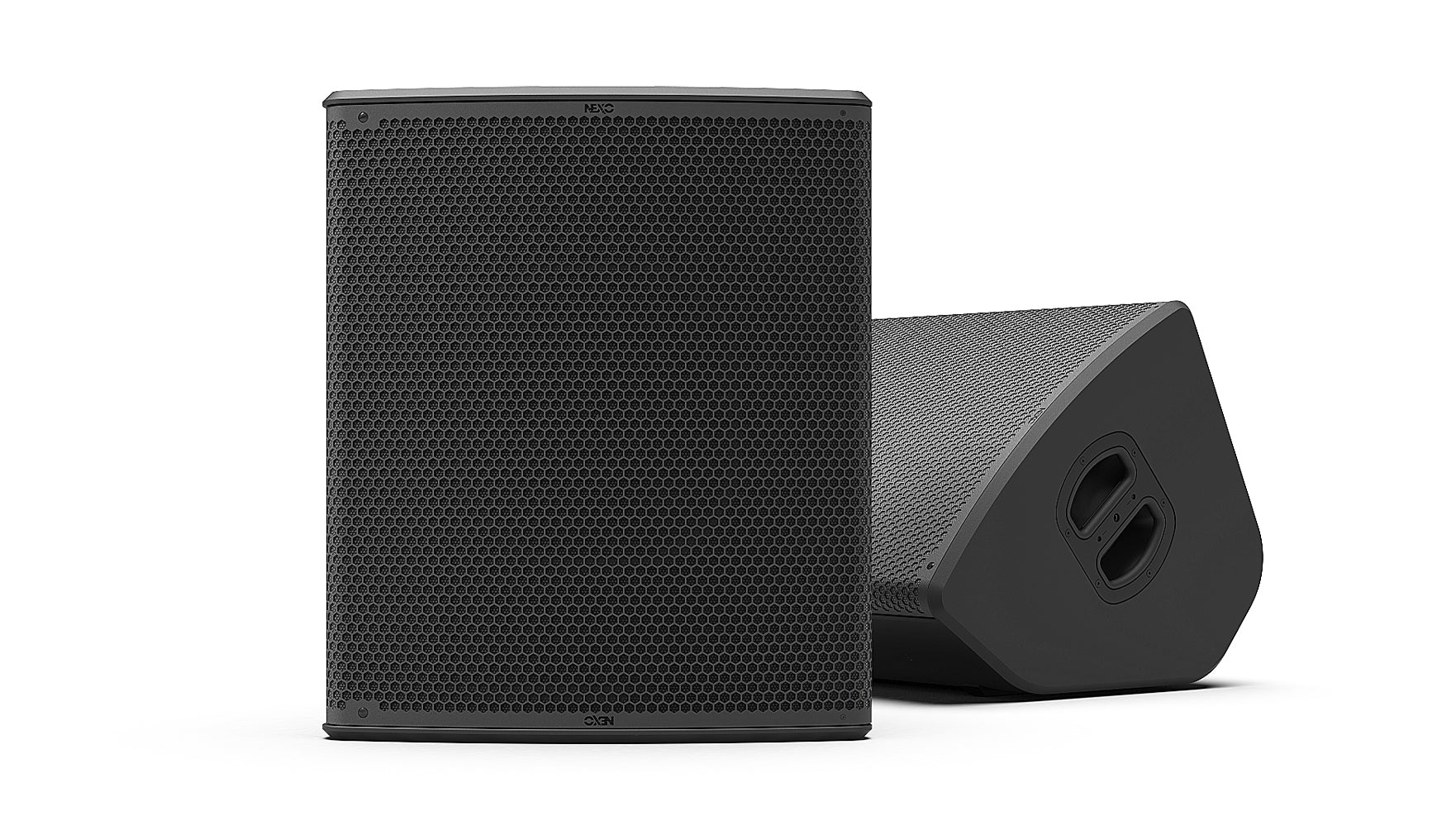

Nexo P18-I High Output Point-Source Loudspeaker (Installation version)

Nexo P18-I High Output Point-Source Loudspeaker (Installation version)

SoundPro Item: 148342 | Part Number: P18-I

$5,200.00
$5,200.00 $5,200.00
Your Price Sold out
MSRP: $5,200.00 | MAP: $5,200.00

Usually ships in 5-7 business days

  • 3 locations for hanging, 1 on the back and on both sides
  • Compact, low-profile, curvilinear enclosure
  • 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes (Touring and TIS versions)
  • 142dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions
Log in or register for YOUR best price

The dispersion characteristics of the P18 can be changed in seconds through the addition of optional magnetic flanges. The standard cabinet uses a 60° x 60° horn with additional 90° x 40° and Asymmetrical (PS Type) 50° - 90° x 40° also available. Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18? LF Neodymium driver and 4? diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colors (Passive only) and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

View full details

Specifications

Frequency Response @-6 dB
50 Hz to 20 kHz
Sensitivity 1W@1m
107 dB SPL Nominal
Peak SPL@1m
140 dB Peak (Passive mode) / 142 dB Peak (Active mode)
Operating Voltage
55 Vrms (180 Vpeak)
HF Dispersion (according to flanges)
60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
Crossover Frequency
50 Hz, 85 Hz, 120 Hz
Nominal Impedance
Active: (8 Ohms ? LF + 8 Ohms ? HF) / Passive: 8 Ohms ?
Recommended Power
Active: (1200 to 1900 W LF + 600 to 950 W HF) / Passive: 1200 to 1900 W
Components
1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms
Number of ways (Touring and TIS version)
2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Number of ways (Install version)
2 ways passive
Connectors (Touring and TIS version)
4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version)
1 x Cable gland with 2 cores cable
Rigging points
1 x universal accessory fit on each side + 1 x on the bottom
Material
Custom made bent plywood of baltic birch and poplar
Finish
Black or White structural paint
Front Finish (Touring version)
Magnelis front grille + back fabric behind
Front Finish (Install and TIS version)
Acoustic fabric fitted front grille
Height x Width x Depth
680mm x 579mm x 446mm (26.8” x 22.8” x 17.6”)
Weight: Net
33 kg (73 lbs)
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
System Operation
Recommended powering solution
NXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channel
Optional powering solution
DTDcontroller + DTDAMP4x0.7 (Bridged) : 1 x P18 per bridged channels
NXAMP4x1mk2 Powered TDcontroller (Bridged)
up to 2 x P18 per bridged channels
NXAMP4x2mk2 Powered TDcontroller
1 x P18 per channel
