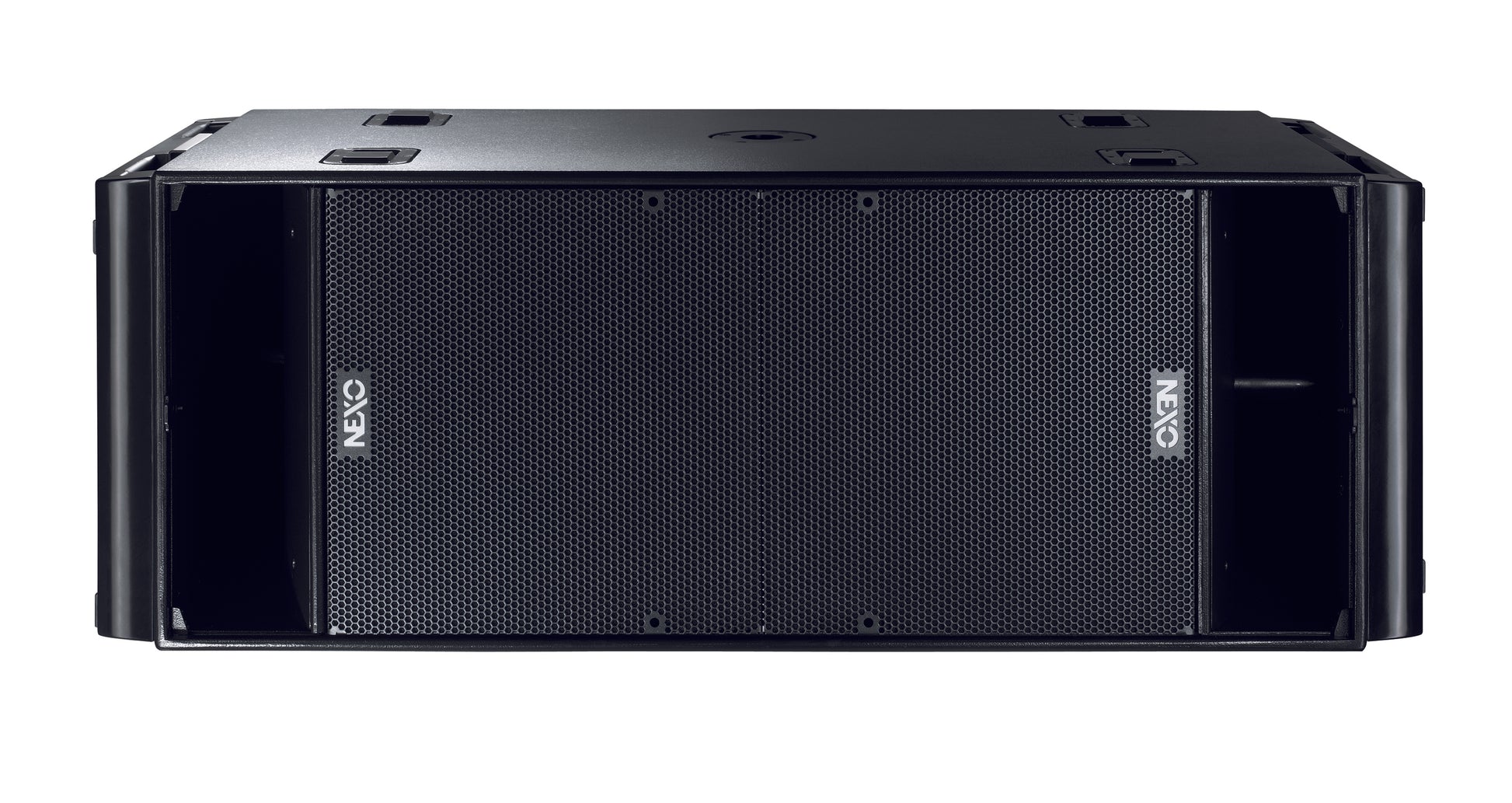

Nexo RS18-PI Dual 18" Subwoofer Installation Version

Nexo RS18-PI Dual 18" Subwoofer Installation Version

SoundPro Item: 63170 | Part Number: RS18-PI

$7,909.00
$7,909.00 $7,909.00
Your Price Sold out
MSRP: $7,909.00 | MAP: $7,909.00

Usually ships in 5-7 business days

  • Low profile, high output, modular scalable bass
  • Configurable directivity pattern
  • Cardioid pattern reduces rear levels by minimising rear/side wall reflections
  • Aerodynamic profiled vents with 20db noise reduction and improved linearity at high SPL
  • 2 x 18" (46cm) long excursion neodymium 8Ω drivers
  • Applies across entire NEXO Product Line
  • Omni & Directional pattern over the entire useable bandwidth depending on controller
  • Baltic Birch ply finish with textured black or white coating. Dark grey carpet finish also available
  • 4 x NL4MP SPEAKON 4 pole on two connection plates (In & Through)
Log in or register for YOUR best price

The RS18 uses two 18" long excursion Neodymium drivers drivers in a low profile cabinet to extend system response down to 30Hz. NEXO’s patent pending RAY SUB Technology is based on optimizing the positioning and phase relationships of radiating surfaces in vented enclosures, permitting acoustic distance from rear to front sections to always increase as frequency decreases. Consequently rear and front sections sum up efficiently over the entire subwoofer bandwidth, allowing for an average of 5dB gain from the rear section in the forward direction and cancelling in the rear direction.

View full details

Specifications

Frequency Response @ -3db [a]
Omni & Directional: 30Hz–100Hz
Usable Range @ -6db [a]
Omni & Directional 29Hz–250Hz
Sensitivity 1W @ 1m [b]
Omni: 105dB SPL Nominal, Directional:103dB SPL Nominal
Peak SPL @ 1m [b]
Omni & Directional: 143–146dB Peak (2x1000W to 2 x 2000W/8Ω)
Dispersion
Omni & Directional pattern over the entire useable bandwidth depending on controller
Directivity Index [c]
Omni: 1.5 < Q < 2 1.7dB < DI < 3dB, Directional: Q=4.3 DI=5.3dB
Crossover Frequency
Omni & Directional: From 75Hz to 100Hz
Nominal Impedance
Omni & Directional 2 x 8Ω
Recommended Amplifiers
One amplifier channel is required for Omni mode operation, rated at 2000 to 4000 Watts into 4Ω
Two amplifier channels are required for Directional mode operation, each rated at 1000 to 2000 Watts into 8Ω
