• NEXO RS18 Tour Version Subwoofer
1 1

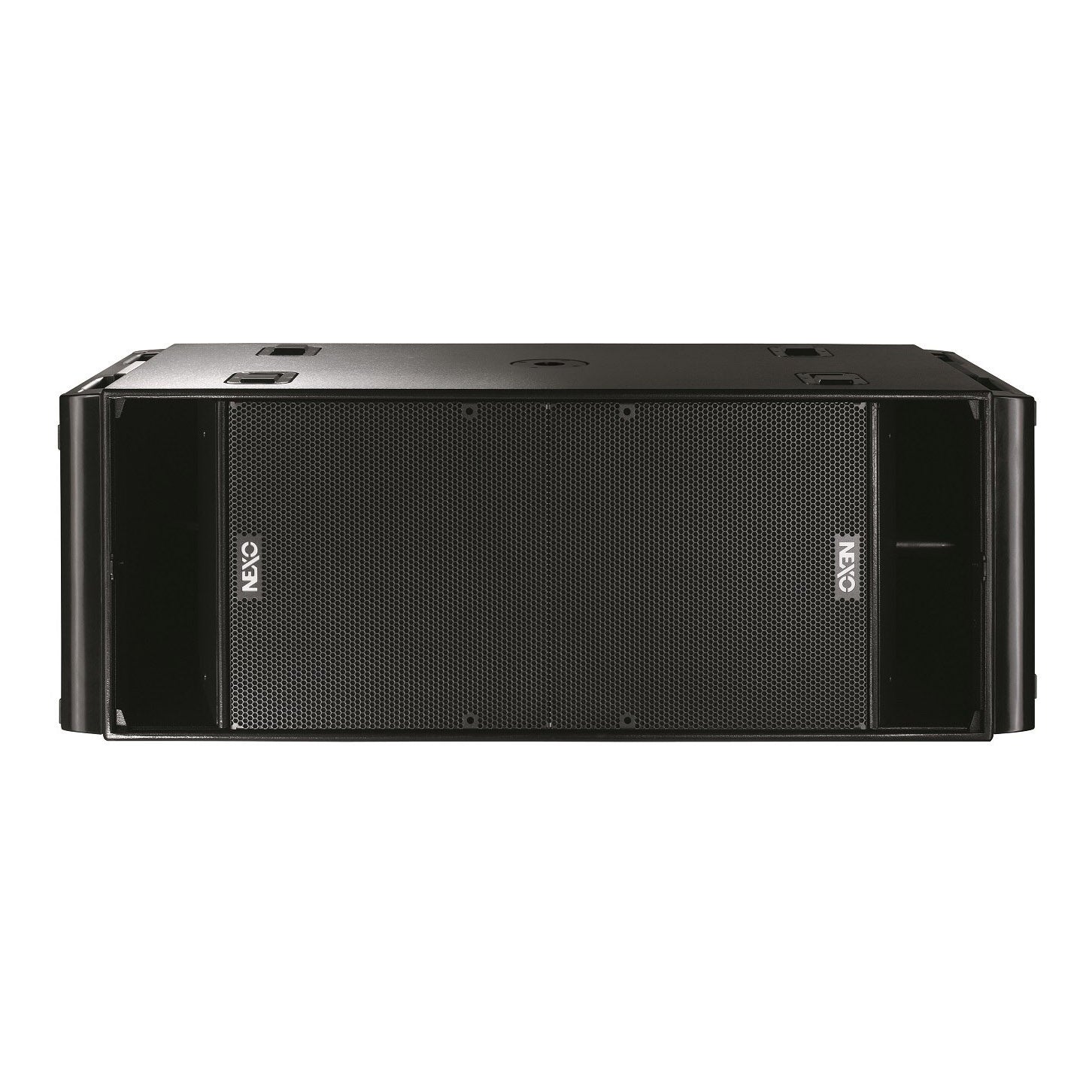

NEXO RS18 Tour Version Subwoofer

NEXO RS18 Tour Version Subwoofer

SoundPro Item: 63171 | Part Number: RS18-PT

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Low profile, high output, modular scalable bass
  • Configurable directivity pattern
  • Cardioid pattern reduces rear levels by minimising rear/side wall reflections
  • Aerodynamic profiled vents with 20db noise reduction and improved linearity at high SPL
  • Frequency response 30Hz - 100Hz
  • Sensitivity 105dB
  • 2 x 18" configuration
  • Applies across entire NEXO Product Line
Log in or register for YOUR best price

The RS18 uses two 18" long excursion Neodymium drivers drivers in a low profile cabinet to extend system response down to 30Hz. NEXO's patent pending RAY SUB Technology is based on optimising the positioning and phase relationships of radiating surfaces in vented enclosures, permitting acoustic distance from rear to front sections to always increase as frequency decreases. Consequently rear and front sections sum up efficiently over the entire subwoofer bandwidth, allowing for an average of 5dB gain from the rear section in the forward direction and canceling in the rear direction.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
Without handles (install version) 20.46x48.75x28.81" (520x1238x732mm)
Weight
Net Weight
199 lbs (90kg)
Net Weight with Handles
231.5 lbs (105kg)
Net Weight with Rigging System
278 lbs (126kg)
Audio
Dispersion
Omni & Directional pattern over the entire useable bandwidth depending on controller
[b] Sensitivity & Peak SPL
will depend on spectral distribution. Measured with band limited pink noise. Refers to the specified +/- 3 dB range. Data are for speaker + processor + recommended amplifier combinations.
Connectivity
Connectors
4 x NL4MP SPEAKON 4 pole on two connection plates (In & Through)
Construction
Construction
Baltic Birch ply finish with textured black or white coating. Dark grey carpet finish also available.
Included Items
Components
2 x 18" (46cm) long excursion neodymium 8Ω drivers
General
Omni
30Hz–100Hz
Directional
30Hz-100Hz
With Handles (touring versions)
20.46x55.24x28.81" (520x1403x732mm)
Shape
Rectangular
[a] Response Curves and Data
anechoic far field above 200 Hz, half-space anechoic below 200 Hz.
[c] Directivity Curves and Data
1/3 octave smoothed frequency response, normalized to on-axis response. Data obtained by computer processing of off-axis response curves.
