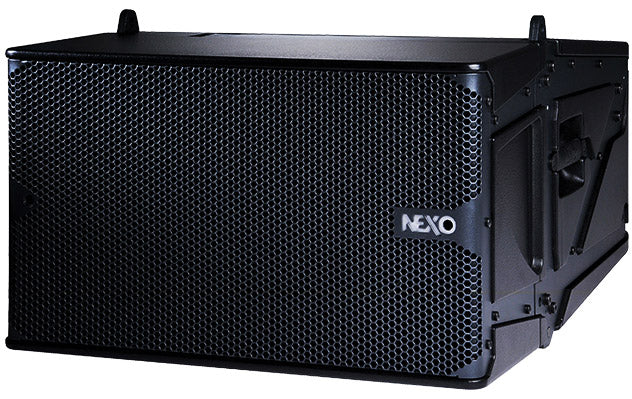

Nexo STM B112 Bass Module Professional Audio Component

Nexo STM B112 Bass Module Professional Audio Component

SoundPro Item: 15841 | Part Number: STM-B112

Regular price $5,799.00
Regular price $5,799.00 Sale price $5,799.00
Your Price Sold out
MSRP: $5,799.00 | MAP: $5,799.00

Usually ships in 5-7 business days

  • 1 x 3000W +/- 3cm excursion 12 inch LF Driver
  • 141dB peak SPL
  • Frequency response: 63Hz-200Hz
  • H350mm/W575mm/D715mm
  • 59Kg/130lb

Injection-moulded bass cabinet featuring a Neodymium high excursion 3000W 12? bass driver with 4" voice coil. It has the same format - dimensions, weight, gravity Centre - as the M46. The hybrid horn-loaded design maximizes the efficiency of the driver, delivering 6dB more than a standard front-loaded driver in this frequency range.B112 features innovative PistonRigTM and REDLockTM rigging, enabling any size of system to be flown safely by one person. REDLockTM handle locks front rigging points from rear of cabinet. All adjustments made from one position at rear of cluster.

View full details

Specifications

Frequency Response
63Hz - 200Hz ±3dB
Usable Range @-6dB
55Hz - 250Hz
Sensitivity 1W @ 1m
107dB SPL Nominal
Nominal Peak SPL @ 1m
141dB Peak
Nominal Impedance
16Ω (12 Ω min)
Amplified Controller
NXAMP4x4 - 3xSTM B112 in parallel on 2 NXAMP4x4 bridged channels - 8000W/4Ω
Components
LF: 1 x 12” (30cm) 3000W high excursion Neodymium 16 Ohms driver
Height x Width x Depth
350 x 575 x 715 mm - 13.78” x 22.64” x 28.15”
Weight : Net
59kg - 130lbs
Connectors
2 x NLT4-MDV Speakon 4 poles (in/out)
Construction
PU Composite Low Density - Polyurethane water based black coating
Handles
3 handles (2 sides and 1 rear)
Front
Perforated Dark Grey Metal Grille
Rigging
Integral 3 points flying system. Inter cabinet angle adjustments from 0.2° to 10° in logarithmic steps
