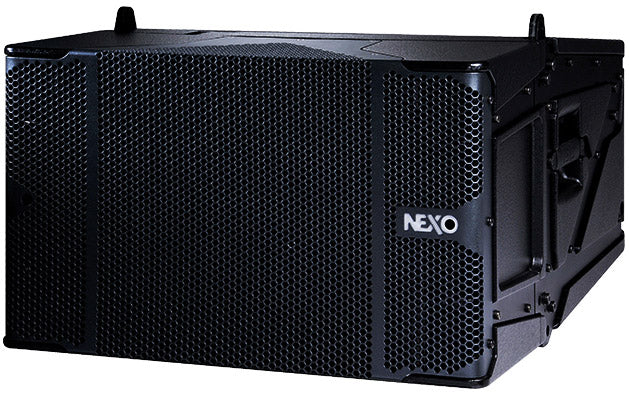

Nexo STM M46 Main Module Professional Loudspeaker

Nexo STM M46 Main Module Professional Loudspeaker

SoundPro Item: 15844 | Part Number: STM-M46

$10,545.00
$10,545.00 $10,545.00
Your Price Sold out
MSRP: $10,545.00 | MAP: $10,545.00

Usually ships in 5-7 business days

  • 4 x 6.5 inch LF/MF Drivers
  • 4 x HF Compression Drivers
  • 145dB peak SPL
  • Frequency response: 85Hz-20kHz
  • H350mm/W575mm/D715mm
  • 58Kg/128lb
  • Dispersion 90 ? H x 0-10 ?V
Log in or register for YOUR best price
Injection-moulded high-power cabinet with innovative components for enhanced performance. Flat-membrane drivers ensure completely even and full-range coverage over entire 90° horizontal dispersion. HF frequency range remains completely linear, using Ketone Polymer diaphragms that enhance tonal response and long throw.M46 features innovative PistonRigTM and REDLockTM rigging, enabling any size of system to be flown safely by one person. REDLockTM handle locks front rigging points from rear of cabinet. All adjustments made from one position at rear of cluster.
View full details

Specifications

Frequency Response
85Hz - 19kHz ±3dB
Usable Range @-6dB
80Hz - 20kHz
Sensitivity 1W @ 1m
110dB SPL Nominal
Nominal Peak SPL @ 1m
145dB Peak
Dispersion
90° Horizontal x 0-10° vertical
Crossover Frequency
850 Hz
Nominal Impedance
LF-MF:16Ω (12 Ω min) - HF: 16Ω (12 Ω min
Amplified Controller
NXAMP4x4 - 3xSTM M46 in parallel on 2 NXAMP4x4 channels - 2x4000W/2Ω
Components
LF-MF: 4 x 6.5” (17cm) 16 Ω flat membrane high excursion drivers
HF: 4 x 2.5” voice coil, 1.4” throat Neodymium 16 Ω drivers, Ketone Polymer diaphragm
Height x Width x Depth
350 x 575 x 715 mm - 13.78” x 22.64” x 28.15”
Weight : Net
59kg - 130lbs
Connectors
2 x NL8-MDV Speakon 8 poles (in/out) & 1 x NLT4-MDV Speakon 4
poles (to STM S118 and B112)
Construction
PU Composite Low Density - Polyurethane water based black coating
Handles
3 handles (2 sides and 1 rear
Front
Perforated dark grey metal grille
Rigging
Integral 3 points flying system. Inter cabinet angle adjustments from 0.2° to 10° in logarithmic steps
