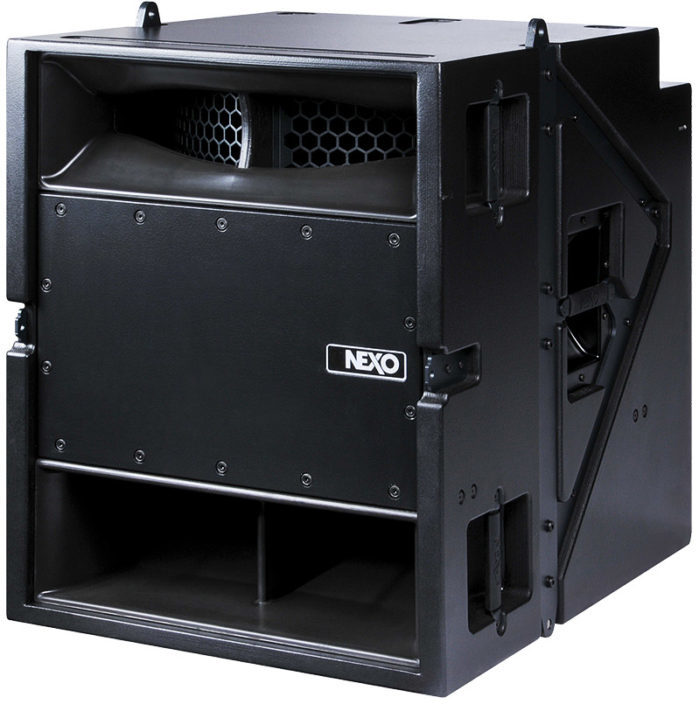

Nexo STM S118 Sub Module Sub-bass Loudspeaker (Subwoofer)

Nexo STM S118 Sub Module Sub-bass Loudspeaker (Subwoofer)

SoundPro Item: 15845 | Part Number: STM-S118

Regular price $7,909.00
Regular price $7,909.00 Sale price $7,909.00
Your Price Sold out
MSRP: $7,909.00 | MAP: $7,909.00

Usually ships in 5-7 business days

  • 1x18inchLFDriver
  • 143dB peak SPL
  • Frequency response: 25Hz-85Hz
  • H700mm/W575mm/D715mm
  • 85Kg/187lb
  • Omni or cardioid modes

Sub-bass cabinet featuring a Neodymium high excursion 3000W 18? driver. A bandpass load ensures SPL output equivalent to conventional dual 18? sub-basses. Same width, double the height of M46 main cabinet, double height of main cabinet so the S118 can be flown in the array or ground-stacked in line. Can be run in omnidirectional or cardioid sub mode.S118 features innovative PistonRigTM and REDLockTM rigging, enabling any size of system to be flown safely by one person. REDLockTM handle locks front rigging points from rear of cabinet. All adjustments made from one position at rear of cluster.

View full details

Specifications

Frequency Response
27Hz - 85Hz ±3dB
Usable Range @-6dB
23Hz - 100Hz
Sensitivity 1W @ 1m
109dB SPL Nominal
Nominal Peak SPL @ 1m
143dB Peak
Nominal Impedance
16Ω (12 Ω min)
Amplified Controller
NXAMP4x4 - 3xSTM S118 in parallel on 2 NXAMP4x4 bridged channels - 8000W/4Ω
Components
LF: 1 x 18” (46cm) 3000W high excursion Neodymium 16 Ohms driver
Height x Width x Depth
700 x 575 x 715 mm - 27.56” x 22.64” x 28.15”
Weight : Net
85kg - 187lbs
Connectors
2 x NLT4-MDV Speakon 4 poles (in/out)
Construction
Baltic birch ply finished with structured black coating
Handles
6 handles (3 per side)
Front
Perforated dark grey metal grille
Rigging
Integral 3 points flying and locking system
