Specifications
Dimensions
Dimensions (LxDxH)
817x300x100mm
Electrical
Power Requirements
Maximum power consumption 12v 1000mA, This product cannot be powered from USB
Connectivity
Rear Panel & Connectors
Power switch, DC power socket, USB B 2.0, MIDI IN, OUT, OUT2 / THRU - 3x 5-pin DIN sockets, Sustain and Expression pedal 1/4" TRS jack inputs, Footswitch pedal 1/4" TS jack input, CV, Gate, Modulation -1- on 3.5mm jack sockets, CV, Gate, Modulation -2- on 3.5mm jack sockets, Clock out, Kensington security slot
General
Product Hardware Specifications

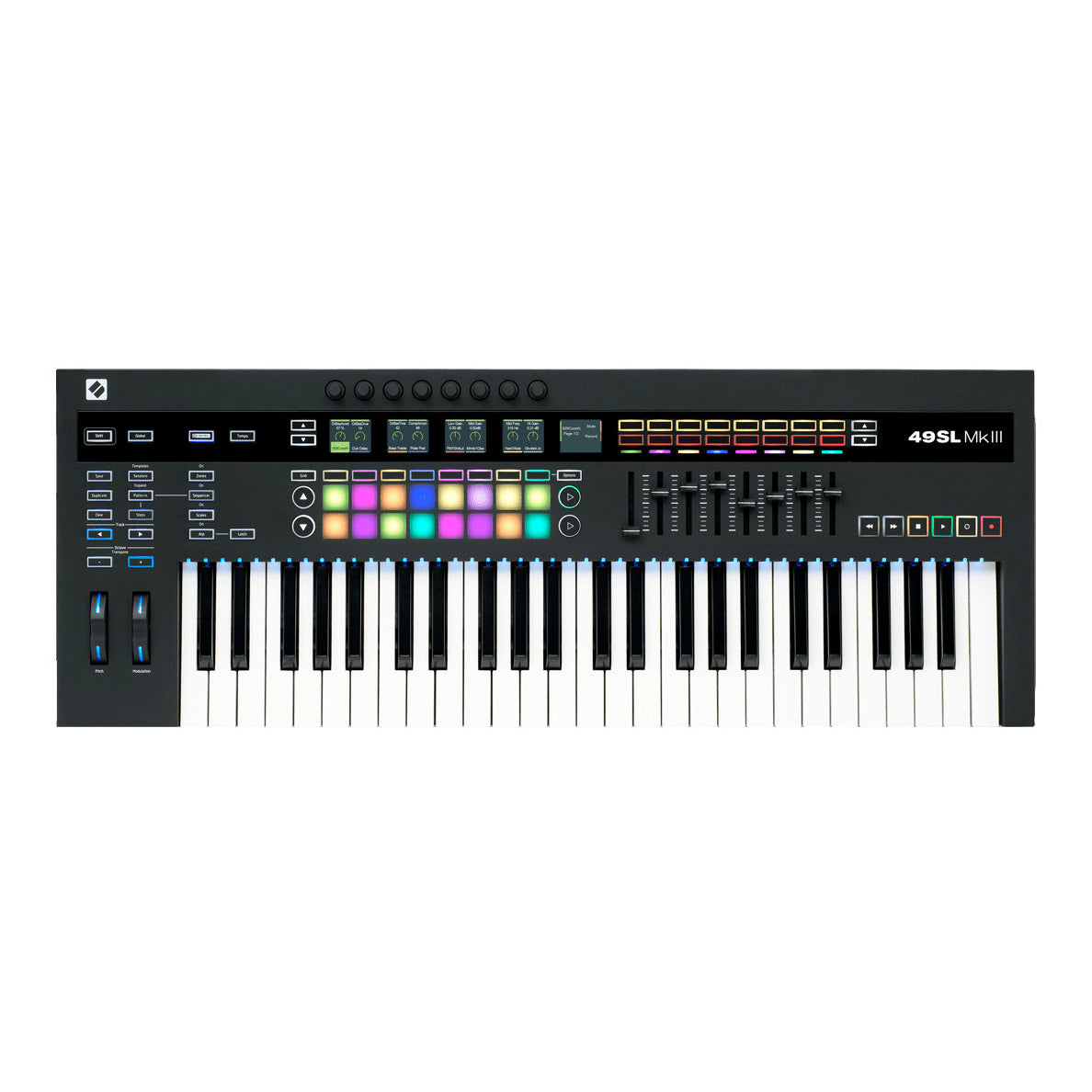

49 or 61 note velocity sensitive, individually sprung, synth style, semi-weighted keyboard, 16 full-color RGB backlit velocity sensitive drum pads, 2 Page and 2 scene launch buttons, 8 continuous rotary knobs, 8 sliders, 6 dedicated transport controls, RGB backlit pitch bend and modulation wheels, 2 octave / transpose buttons, 2 Track buttons, 5x RGB TFT LCD screens, 59 Backlit buttons with tact switches, 49 or 61 keybed RGB LEDs, 16 Assignable buttons x 2 pages (32 assignable buttons), Assignable grid x 2 pages | (32 assignable pads), Backlit RGB Mode switching buttons including InControl
Sequencer
64 Sessions, 8 Tracks per session, 8 Patterns per track (16 steps per Pattern for a total of 128 steps per track), Real time record (notes, with velocity and automation), Auto-quantize notes to steps and automation to 6 events per step, All assignable controls can be automated (8 maximum automation lanes), Internal tempo range 40 - 240, Swing 20 - 80%
Real Time Performance
16 Scale types and chromatic transposition, Split the keys into 8 playable zones, Pattern expand view - flip the grid, Pattern start and end, direction incl. random, Configurable pattern chain, Session instant switching and queued switch
Editing
Velocity and gate per step, Multiple gate lengths per step (via real time record), Automation edit per step, Clear step, automation parameter per pattern, pattern, session, Duplicate step, pattern
