Specifications
Dimensions
Dimensions (WxDxH)
18x10.75x3" (457x273x76mm)
Electrical
Power Requirements
USB bus powered, 9V DC power supply included, Maximum power consumption 9V DC 300mA
Compatibility
OS Compatibility
MacOS 10.12 Sierra, Mac OSX 10.11, Mac OSX 10.10, Mac OSX 10.9, Windows 10, Windows 8
General
Product Hardware Specifications

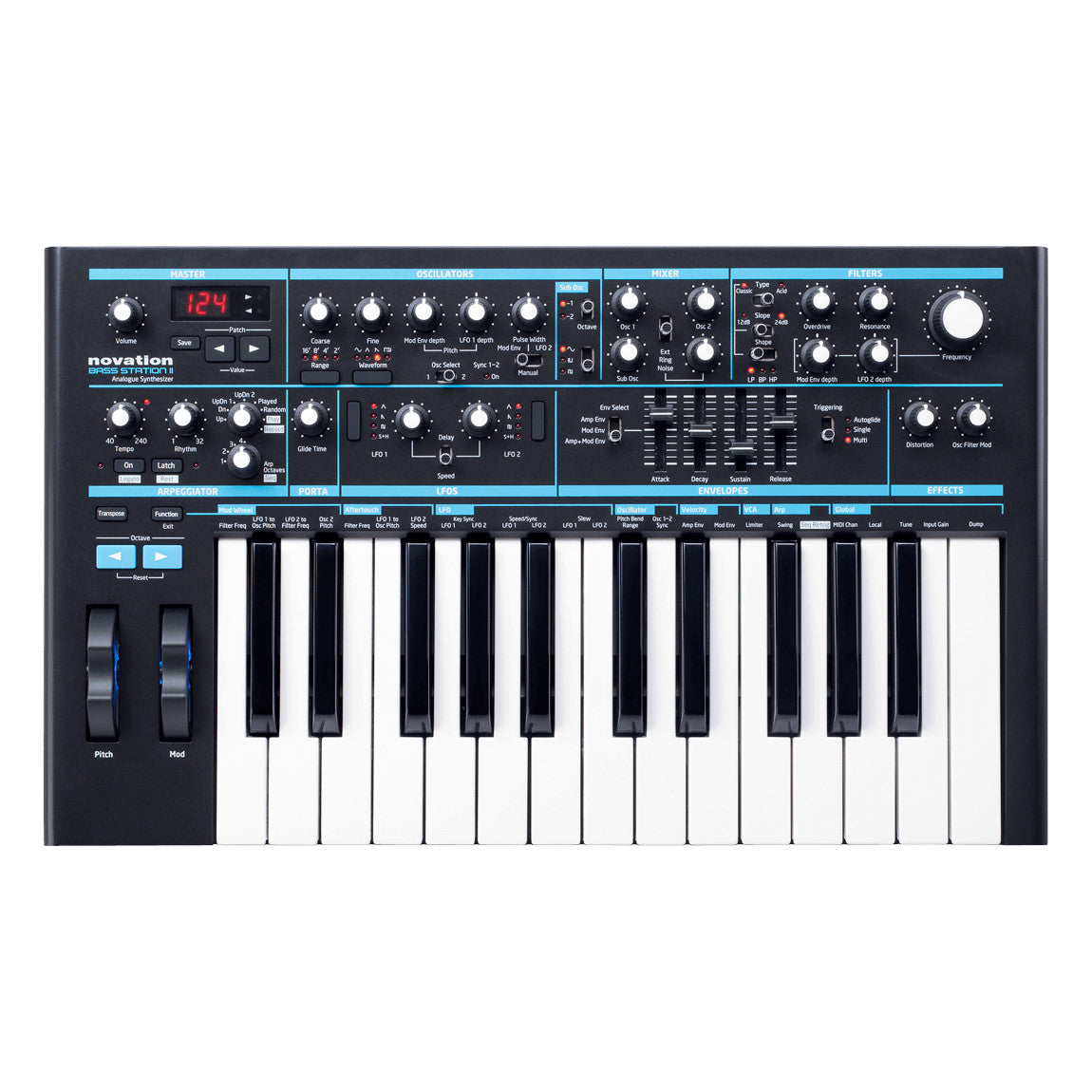

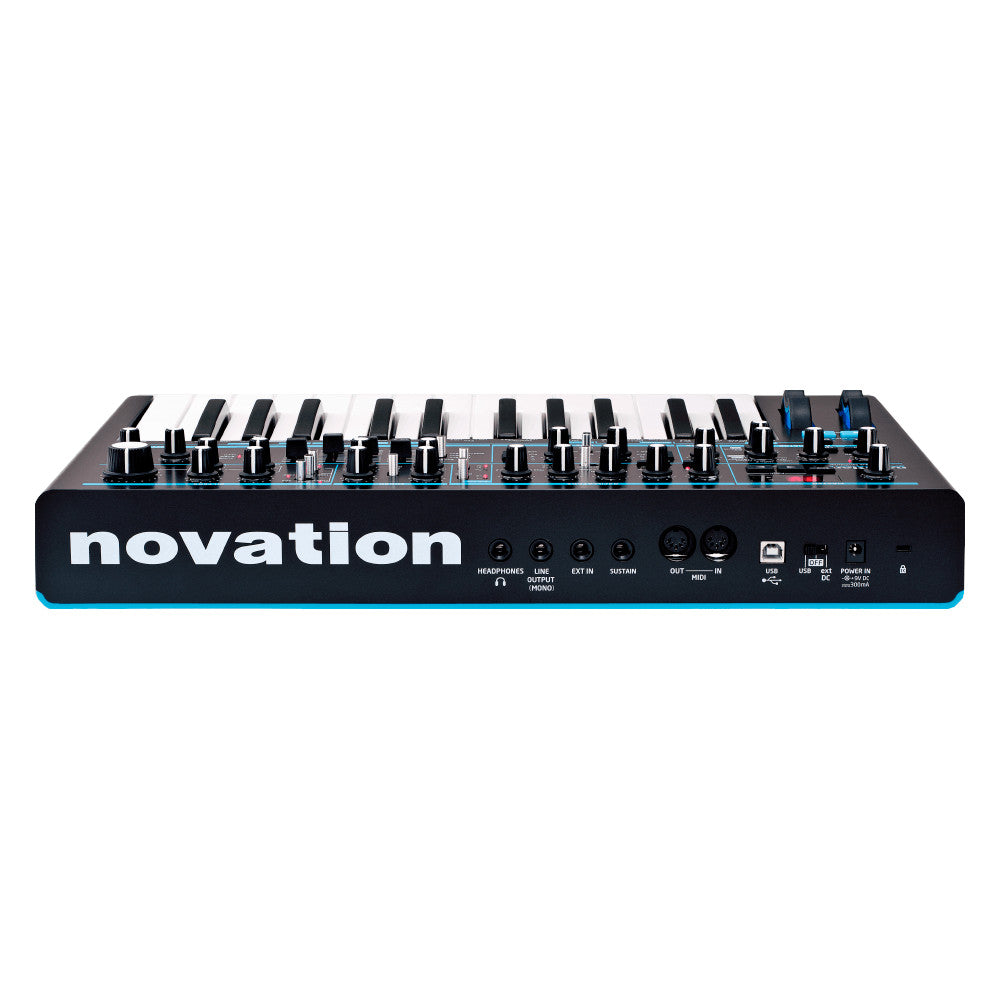

Hardware & controller assignment 25 note synth-action keyboardAftertouch can be assigned to modulate: Filter frequencyLFO 1to Osc pitchOsc 2 speedPitch wheelModulation wheel can be assigned to: LFO 2 to filter frequencyLFO 1 to Osc pitchOsc 2 pitchOctave up/ down buttons64 factory presets64 slots for user patches (and patch dump facility for storing more)Master volume dial, Inputs and Outputs USB 2 socket for MIDI (for connecting & powering Bass Station II via host computer)Mono output on 1/4" TRS jackHeadphone output on 1/4" TRS jackExternal input on 1/4" TRS jackSustain pedal input on 1/4" TS jackMIDI IN / MIDI OUT ports on 5 pin dinDC power inputSwitch between power off / DC powered / bus powered
Synth Engine
Oscillators Osc 1Osc 2Sub Osc (3)Noise generator, Osc 1 & 2
Select Between Waveforms
sinetrianglesawtoothsquare/variable pulse width
EnvelopesSelect Triggering Mode Between
Single trigger (holds envelope state when new note is played)Multi trigger (re-triggers with every new note played)Autoglide (engages portamento); There is also a VCA limiterLFOTwo
LFOs Each Selectable Between
TriangleSawtoothSquareSample and holdBoth LFOs independently adjustable between rate and delay timeKey sync LFO 1 & 2LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)Effects Distortion sendOscillator filter mod amount (FM effect created by Oscillator 2 modulating filter freq)Arpeggiator Up to 32 different patternsSelect between 1-4 octave rangeSwing functionSelect direction: updownup / down 1up / down 2As playedRandomLatch (hold the arpeggiator)Up to four sequencesAssign one of 32 preset rhythms or create your owninsert rests or legato (slide)Sequencer re-trigger functionPortamento Adjust glide timeSingle trigger or re-trigger modesIntegrate into step sequencer and arpeggiator
