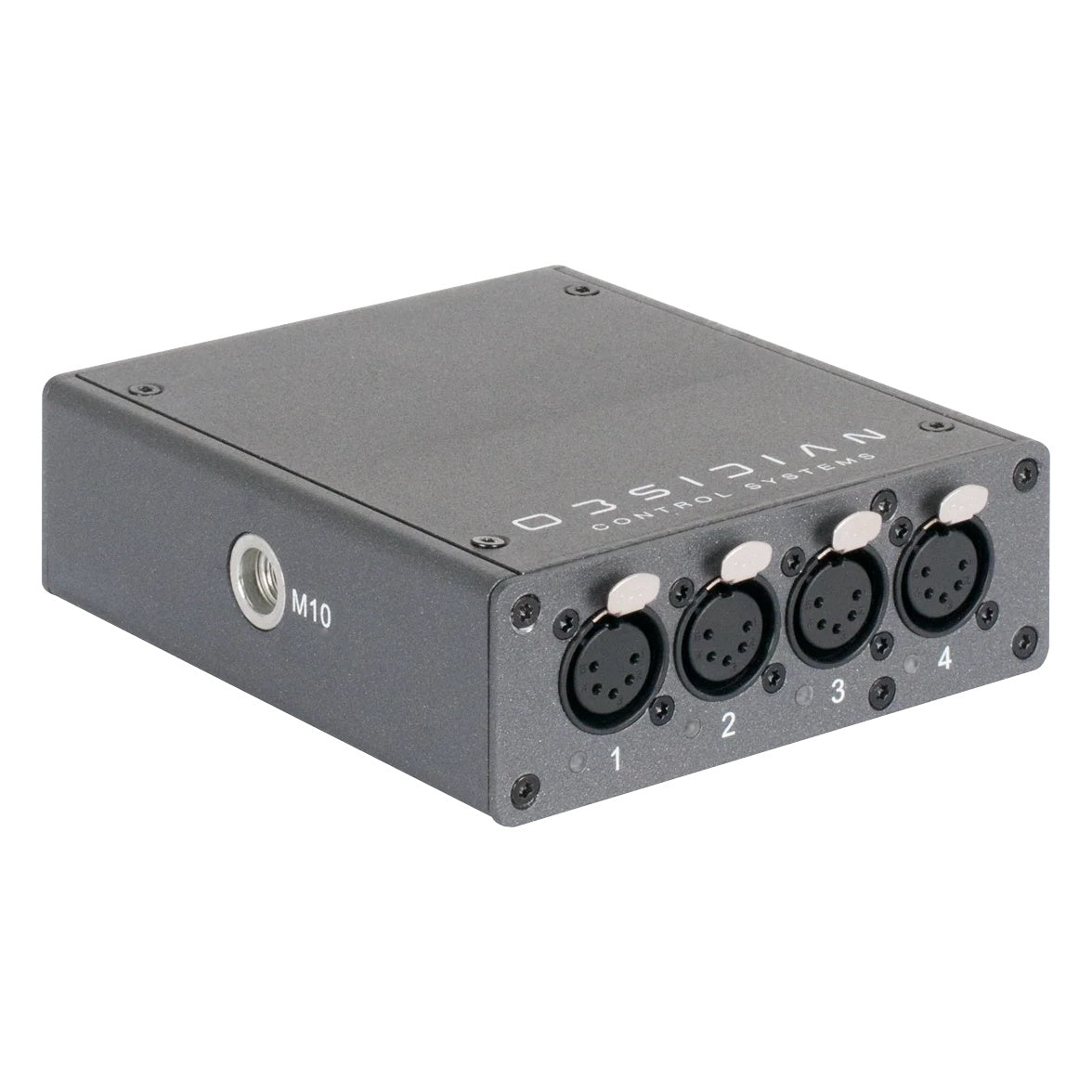

• NRE023 EP4 4-universe Art-Net sACN node angled view showing four 5-pin XLR DMX outputs and M10 mounting thread, OBSIDIAN Control Systems

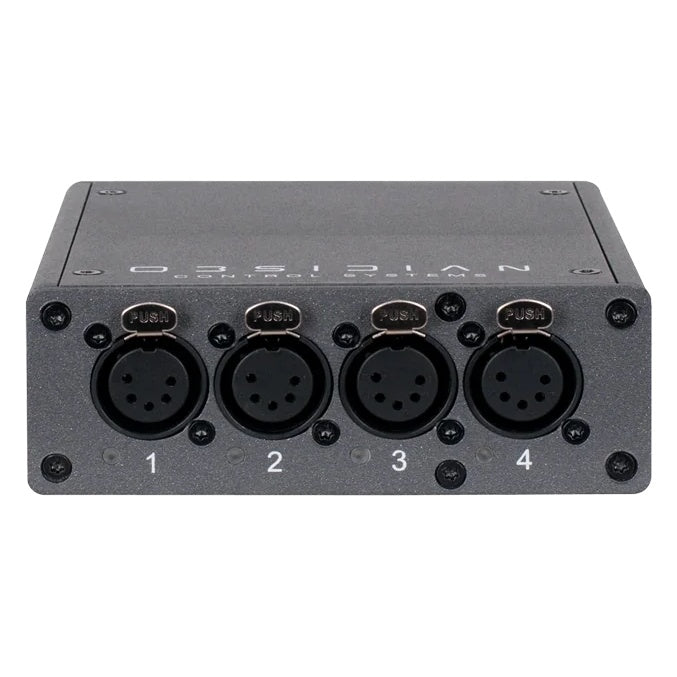

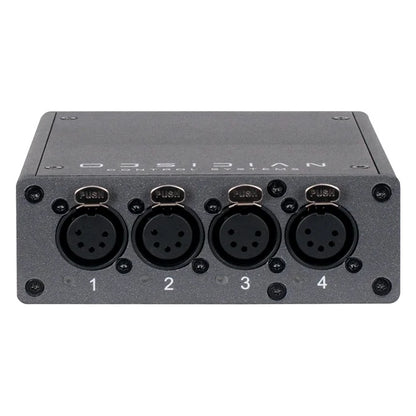

  • NRE023 EP4 node front view with four numbered 5-pin XLR DMX output ports and status LEDs, OBSIDIAN Control Systems

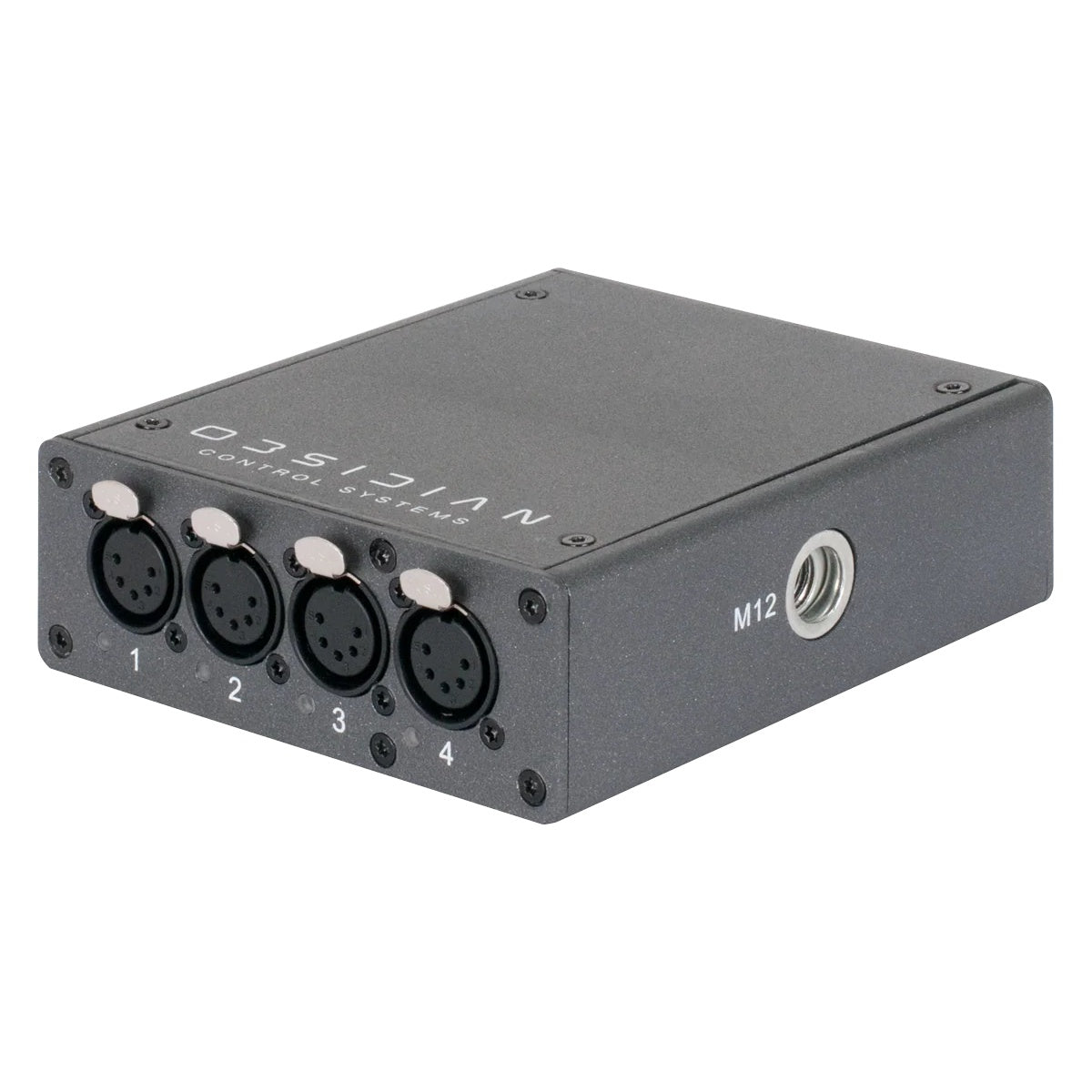

  • NRE023 EP4 node angled view from opposite side showing DMX output panel and M12 threaded mounting point, OBSIDIAN Control Systems

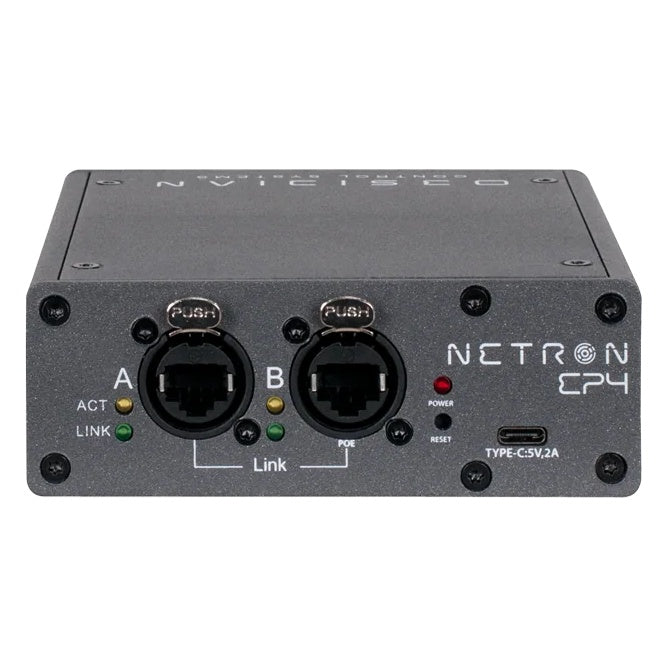

  • NRE023 EP4 node rear panel with dual etherCON A/B ports, PoE link LEDs, reset button and USB-C 5V power input, OBSIDIAN Control Systems

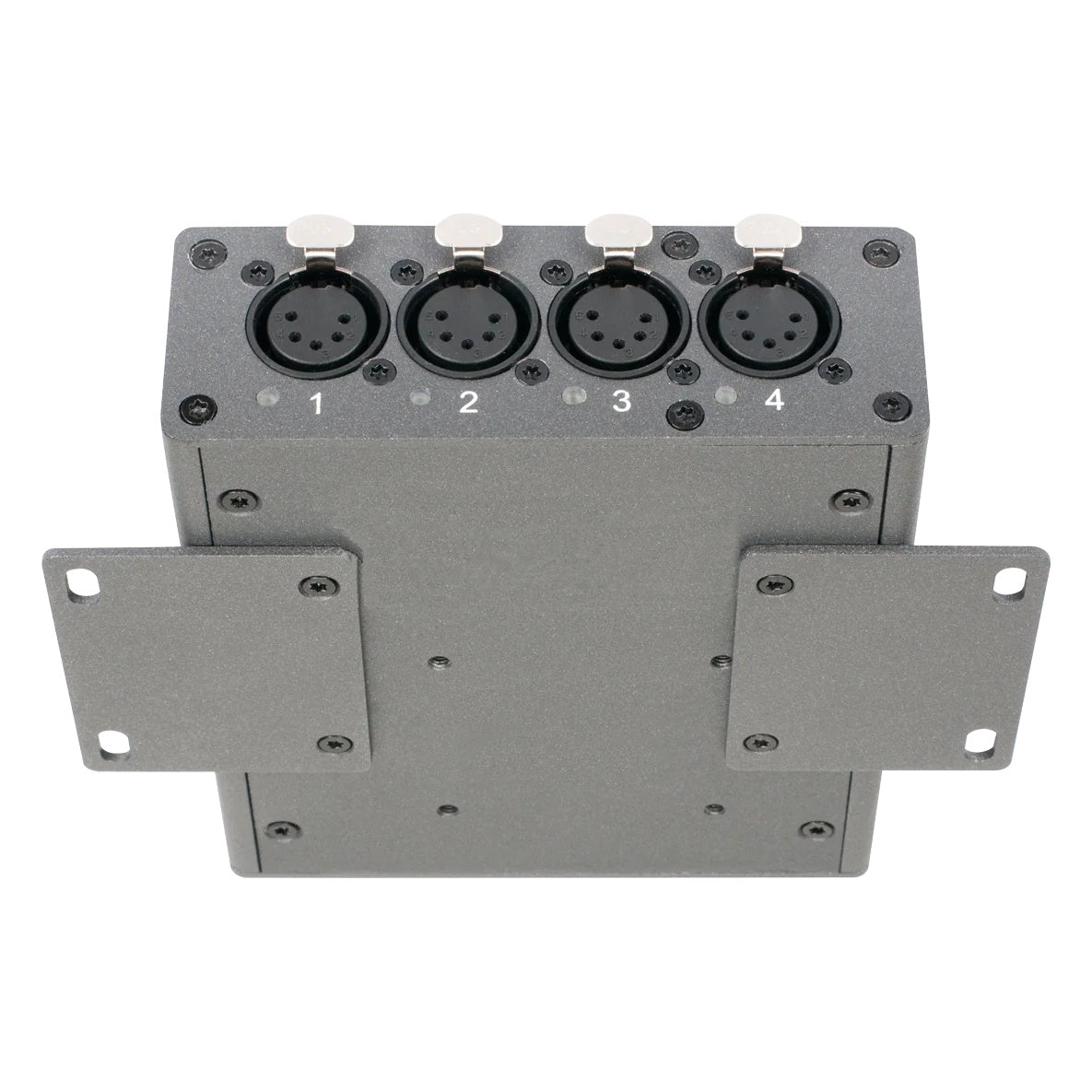

  • NRE023 EP4 node top-down view showing DMX output face and bracket mounting plate with slotted holes, OBSIDIAN Control Systems

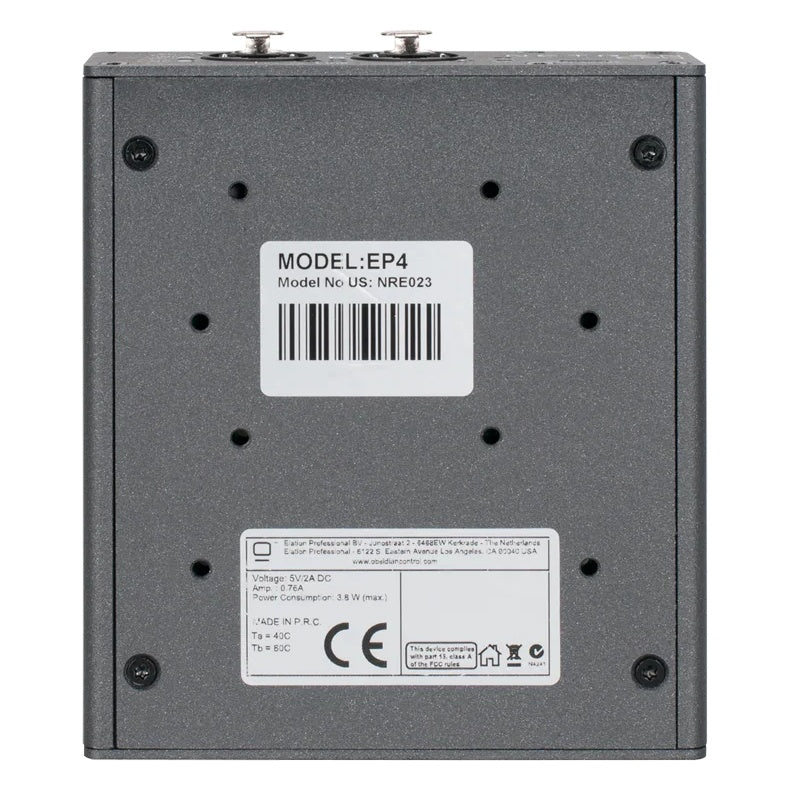

  • NRE023 EP4 node bottom view with model label NRE023 and 5V/2A DC specification plate, OBSIDIAN Control Systems

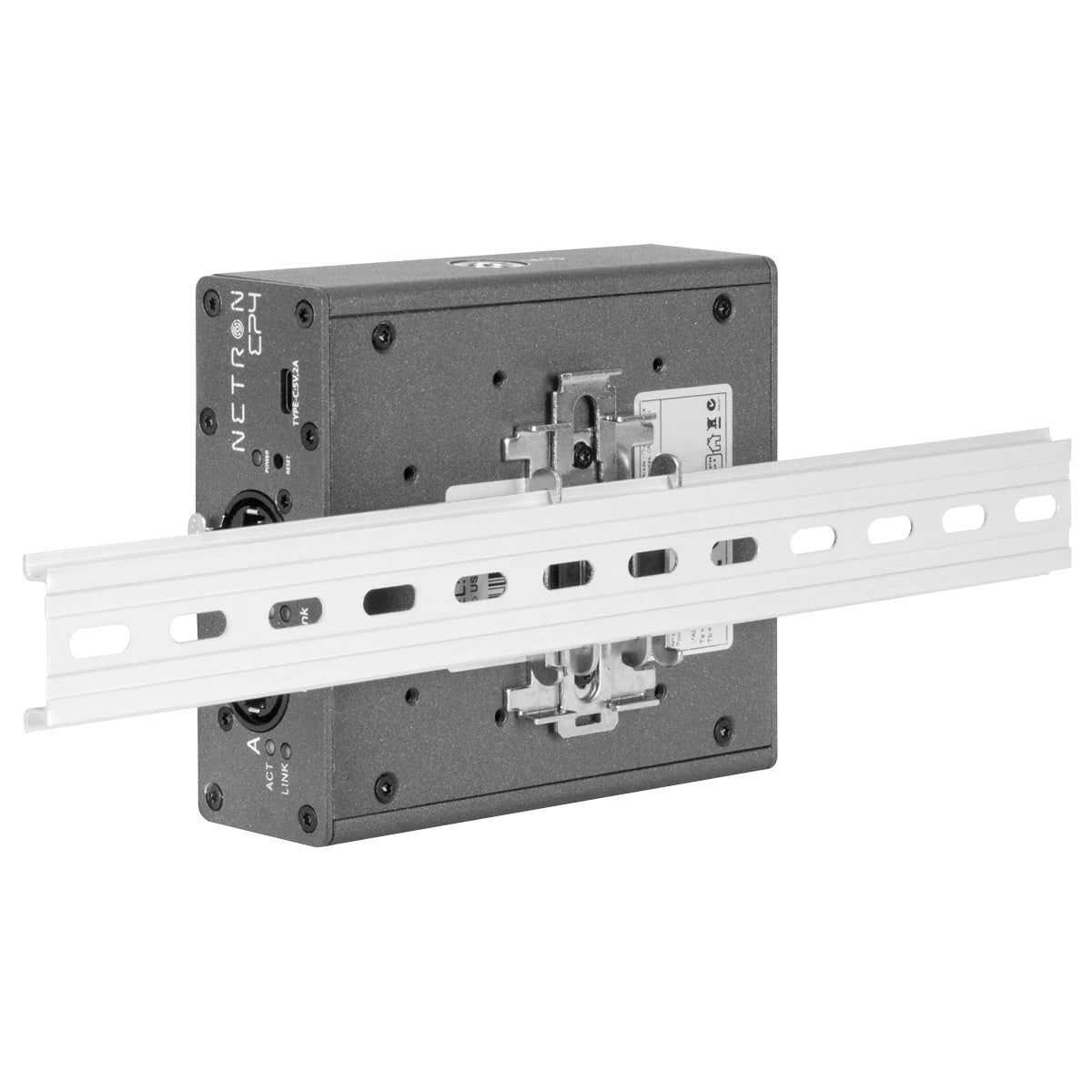

  • NRE023 EP4 node mounted on DIN rail clip accessory for install racks, OBSIDIAN Control Systems

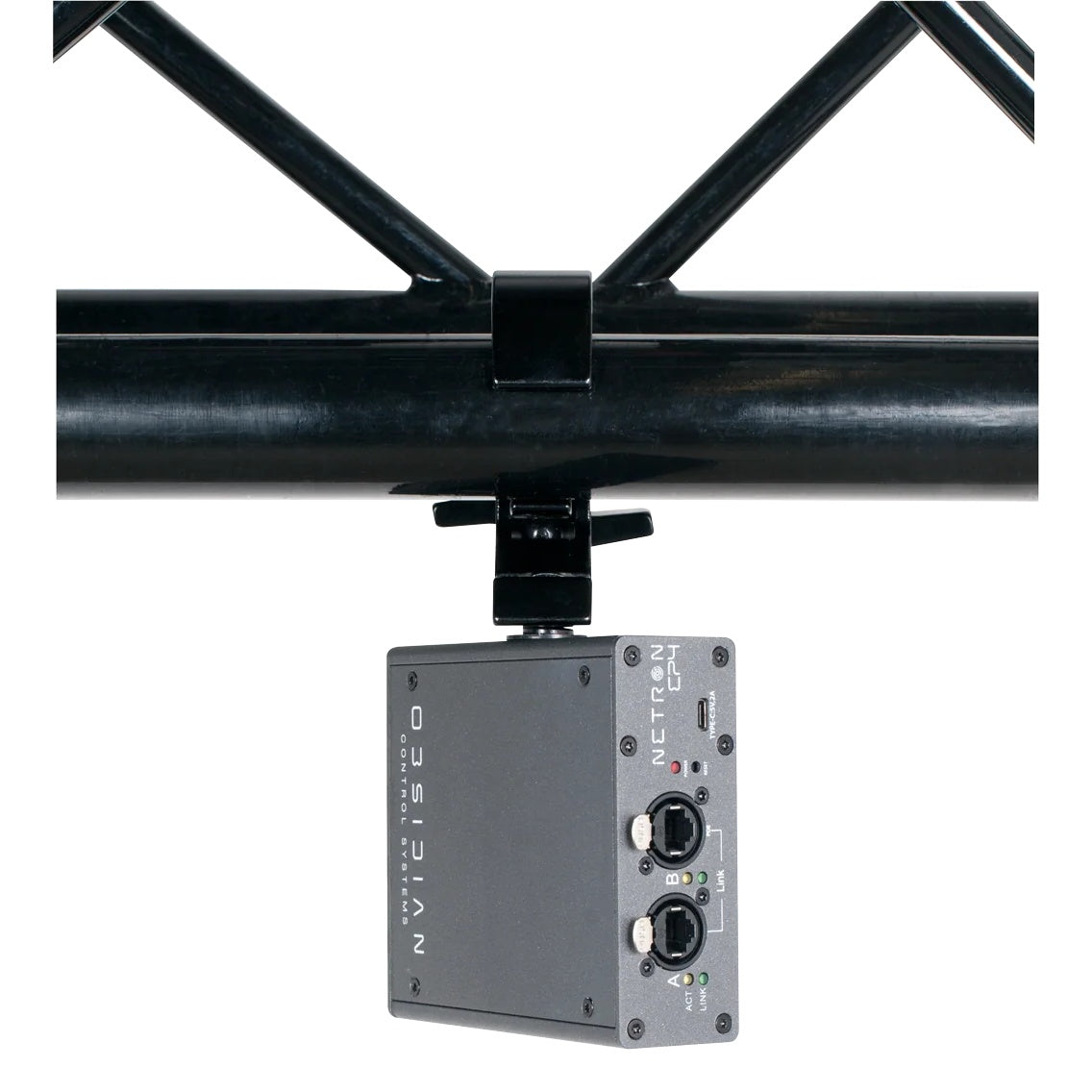

  • NRE023 EP4 node hung from truss on a hook clamp showing etherCON network panel in use, OBSIDIAN Control Systems

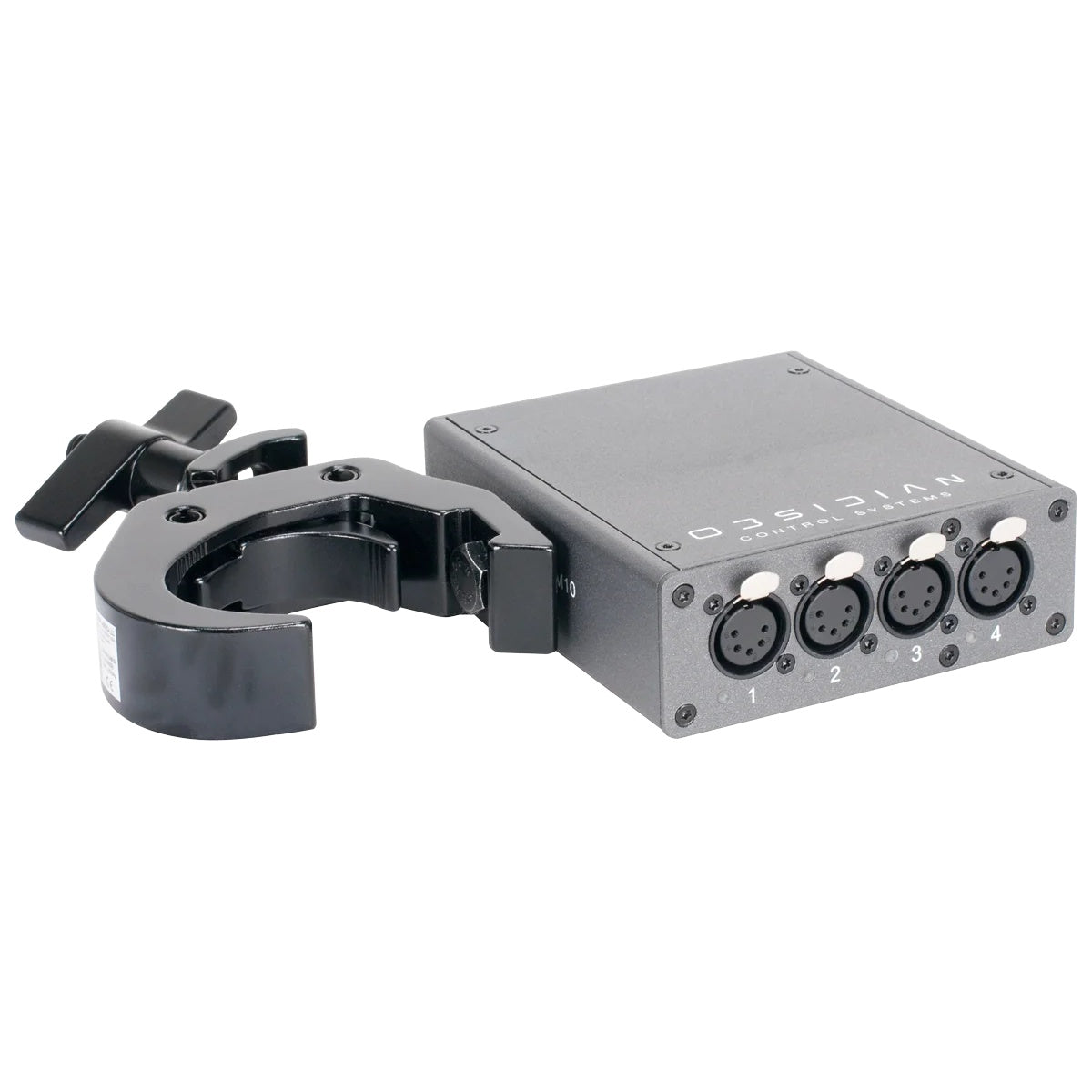

  • NRE023 EP4 node fitted with half-coupler truss clamp beside four DMX XLR outputs, OBSIDIAN Control Systems

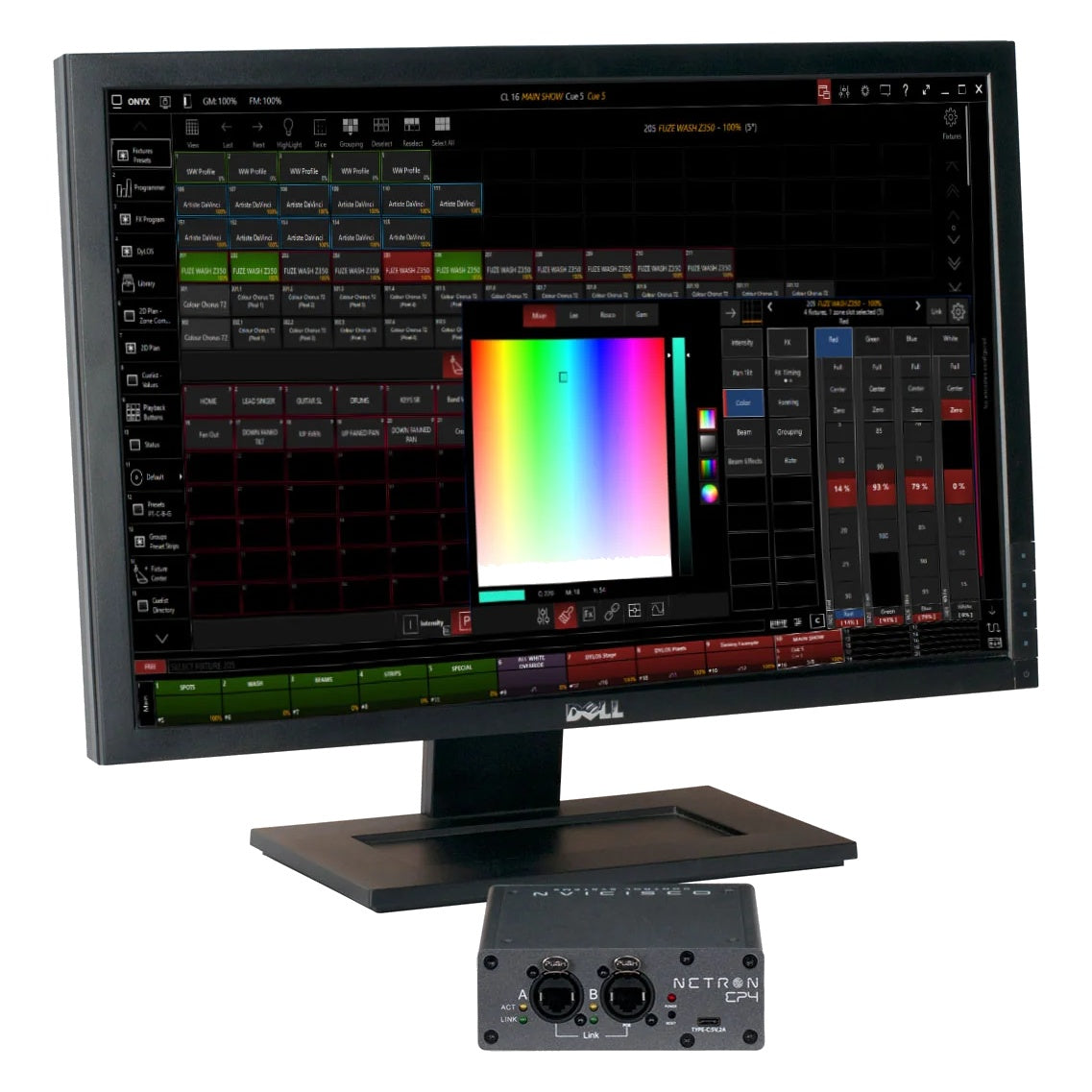

  • NRE023 EP4 node pictured with ONYX lighting control software on monitor showing color picker and fixture grid, OBSIDIAN Control Systems
1 10

OBSIDIAN Control Systems NRE023 EP4 4-Universe Art-Net sACN Node

OBSIDIAN Control Systems NRE023 EP4 4-Universe Art-Net sACN Node

SoundPro Item: 212232 | Part Number: NRE023

$540.00
$630.40 $540.00
Your Price Sold out
MSRP: $630.40 | MAP: $540.00

Usually ships in 5-7 business days

  • RDM, Art-Net, And sACN Support Fits Mixed Network Lighting Workflows
  • Factory And User Presets Simplify Plug And Play Setups
  • Power Over Ethernet Or USB-C Input Gives Flexible Power In Fixed And Temporary Rigs
  • Onboard Cues With Fade And Delay Times Store Looks Directly At The Node
  • Remote Configuration Through An Internal Webpage Speeds Up Commissioning
  • Powder-Coated Compact Aluminum Housing Stands Up To Routine Handling
  • Unlocks The ONYX NOVA Four-Universe License For Expanded Output
Log in or register for YOUR best price

The Netron EP4 is aimed at lighting designers, programmers, and system integrators who need to move network lighting data onto DMX fixtures without adding a heavy rack processor. A single small box covers a four-universe show, whether that is a theater, a corporate stage, a house of worship, or a festival rig, and the bidirectional ports let one unit handle both outputs and inputs where a project calls for it.

Designed with ONYX NOVA Edition in mind, it gives programmers a dedicated four-universe output path that is easy to carry and easy to place. Its RDM-capable ports also give technicians a way to query and configure compatible fixtures from the network. Placing it near the fixtures keeps DMX runs short, which helps when load-in time is tight.

It suits permanent installs where one network cable is preferred, and temporary or touring rigs where a switch may not supply power. Mount choices cover truss, wall, and DIN rail, and the wall and rail hardware ships in the box, so crews can deploy it without a separate parts order. Compared with larger rack-mounted nodes, it trades chassis size for flexibility in where it can go.

View full details

Specifications

Certifications
Approvals
CE
Ingress Protection
IP20
Dimensions
Length
5.3"
Width
4.6"
Height
1.65"
Unit Weight
1.1 lbs
Electrical
USB-C Input Voltage
5V
USB-C Input Current
2A
PoE Standard
802.3af
Power Consumption
3.8W
Power Adapter Input Voltage
100-240V
Connectivity
DMX/RDM Ports
(4) 5-pin, optically isolated, bidirectional
Ethernet Ports
(2) Locking RJ45 (1x PoE)
USB-C Power Input
Yes
Construction
Housing Material
Powder-coated aluminum
Mounting Options
Standalone, truss-mount (M10 or M12 mounting hole), wall-mount horizontal or vertical, DIN rail horizontal or vertical
Included Items
Power Adapter
Universal 5V/2A USB (UK, US, Europe, AUS connectors), 100-240V
USB-C Cable
1.5m Obsidian
Wall Mount Plates
2
DIN Rail Clamp
Yes
Shipping
Package Weight
2.5 lbs
Package Length
11"
Package Width
11"
Package Height
4"
EU Part Number
1330000064
