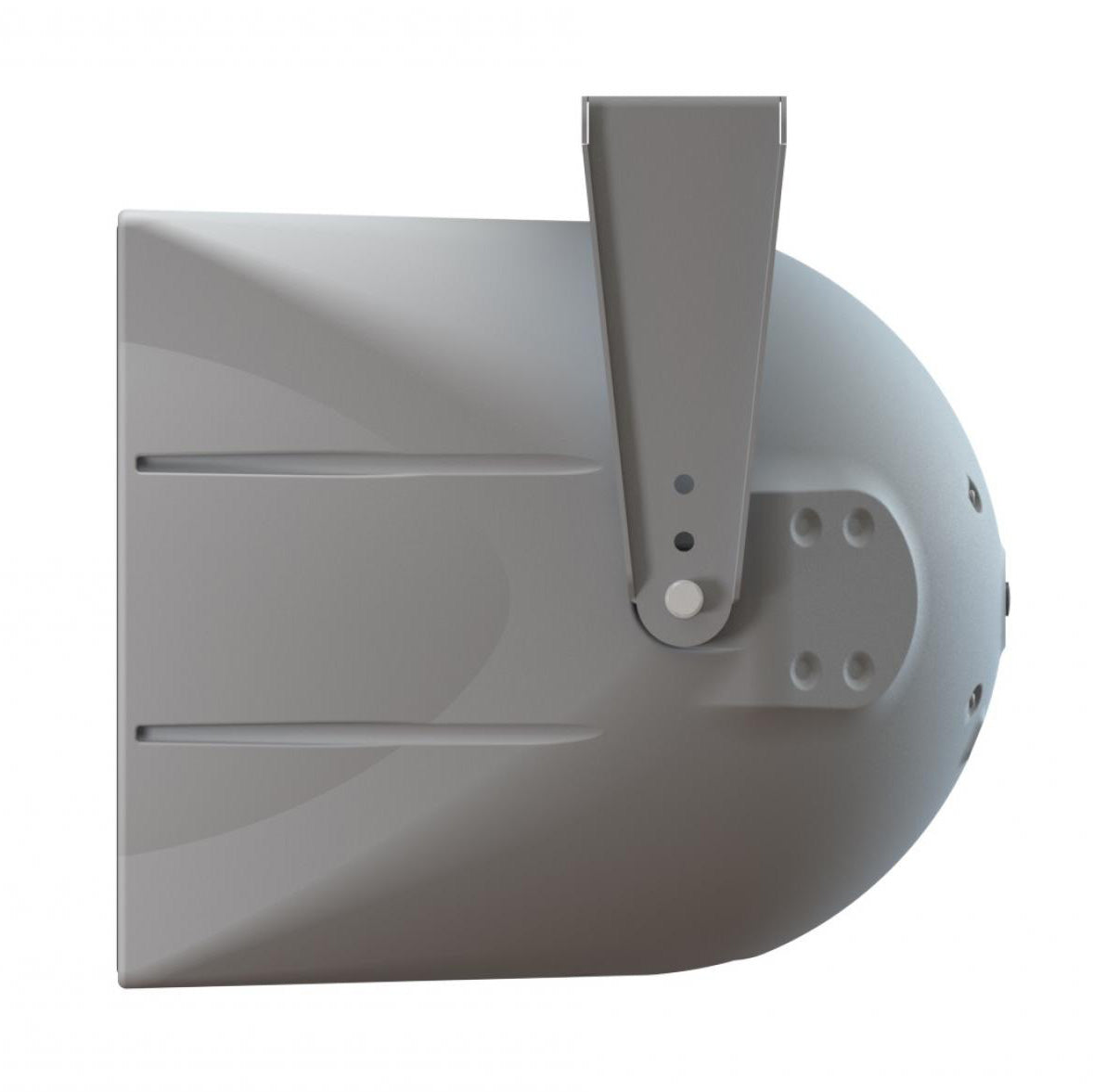

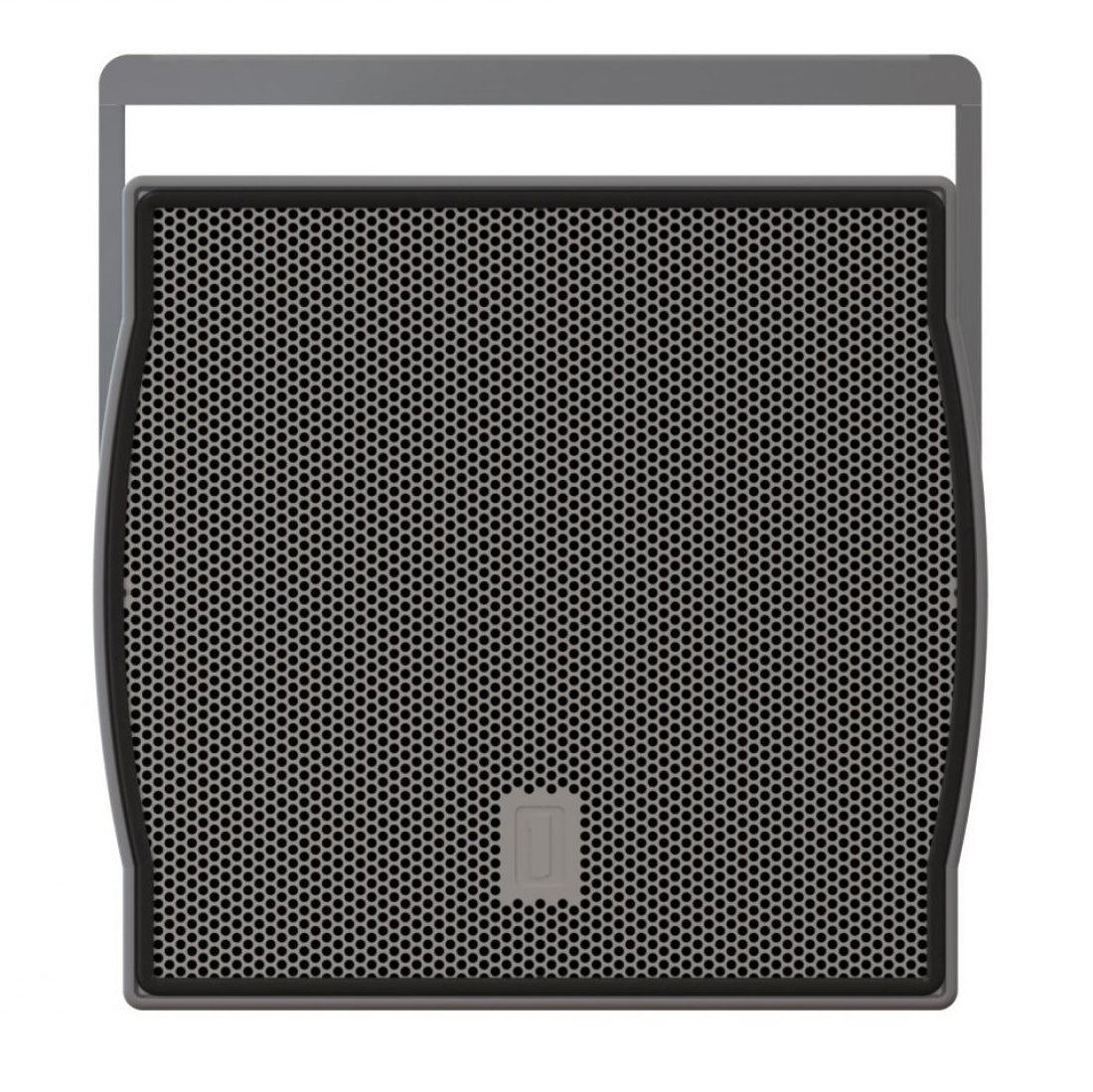

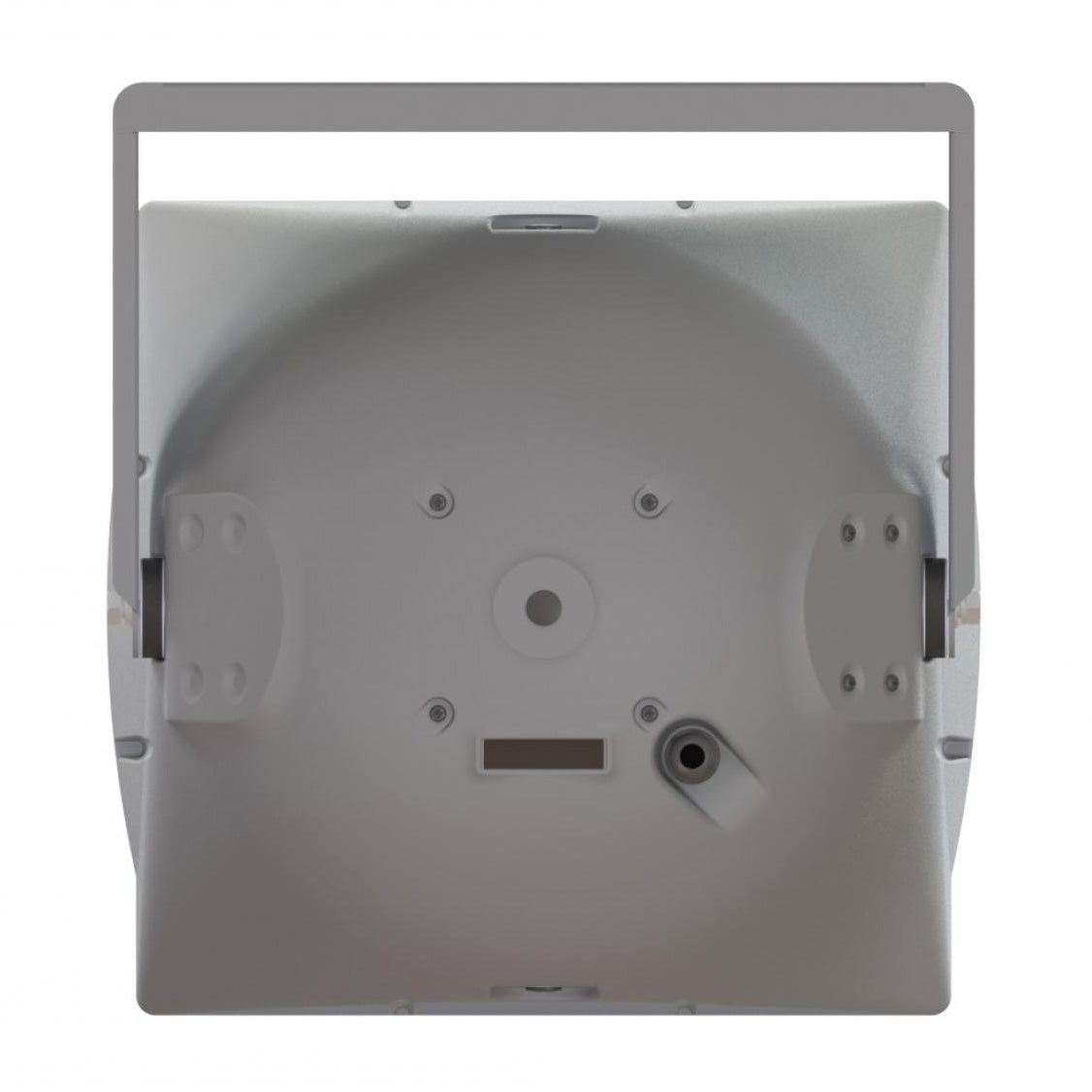

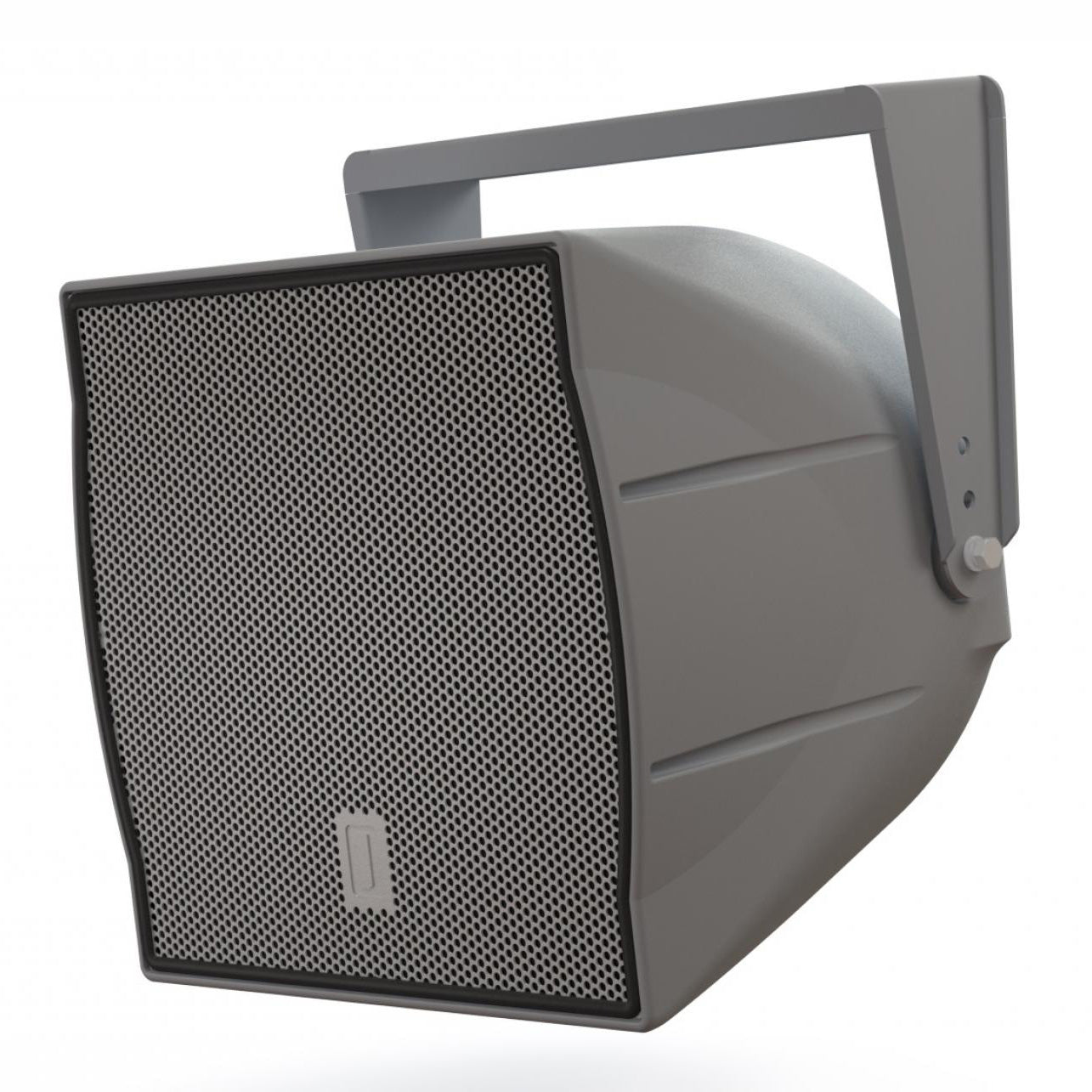

One Systems ONE.SP12D-GRAY 12" Silver Series Speaker
One Systems ONE.SP12D-GRAY 12" Silver Series Speaker
SoundPro Item: 135866 | Part Number: ONE.SP12D-GRAY
Usually ships in 5-7 business days
- High-performance horn-loaded 12" two-way speaker that provides high intelligibility and prodigious 130 dB continuous calculated output capability
- 600W continuous, 2,400W peak power handling
- High 103 dB (1 watt / 1 meter) sensitivity
- Includes robust U-Bracket made of structural steel with dual-layer, zinc-rich powder coating
- Large-sized 60x40 degree horn and 3" HF driver equipped with titanium diaphragm provides superb pattern control and projection
- Stainless steel rigging points provide long-term safety and high corrosion resistance
- IP 55 direct weather rating
- Optional SP.PMK and SP.PMT pole mount kits are available for mounting to round or square poles
The One Systems' ONE.SP12D is a weather protected large format sound reinforcement system. The one piece rotomolded enclosure is made from of a UV resistant high-density polyethylene and is ported to aid low frequency extension. The 12" driver is horn loaded to achieve higher SPL than would otherwise be possible. There are 5 integrated rigging points, which can be used in conjunction with the included U Bracket kit for mounting to walls or ceilings. Two optional Pole Mount Kits are also available. The grille is made from CNC punched steel, and coated in a two-layer zinc rich, UV resistant powder coat finish.
The 12" woofer uses a treated cone for resistance against water absorption and dry rot. The high energy ferrite magnetics ensure high SPL for maximum coverage. The high frequency driver is mounted in front of the woofer to a large mouthed horn. This allows the compression driver to be crossed over at a lower frequency to maintain full pattern control across the entire frequency spectrum. The large format compression driver in the ONE.SP12D is a new design which offers extremely high SPL, avoiding the need for a separate mid band and high frequency compression drivers, and still providing high SPL.
The ONE.SP12D is well suited to outdoor environments where a reliable, weatherproof system is specified.
- Frequency Response90 - 14,000 Hz + 3 dB
- Frequency Range70 - 20,000 Hz -10 dB
- Power Handling
- 600W continuous
- 1200W program
- 2400W peak*
- NOTE: All system power handling ratings are amp headroom dependent
- Sensitivity (1W @1m)103 dB
- Calculated Output Capability
- 130 dB continuous
- 136 dB peak
- Coverage (HxV)60x40 degrees
- Nominal Impedance8 ohms
- Input Connection2m (6.6 ft) 2-conductor cable
- LF Transducer12"/305mm with 3 inch voice coil
- HF Transducer3" voice coil with titanium diaphragm
- Dimensions (HxWxD)16.1x17.2x18.3" (407.8x437.1x464mm)
- Net Weight48.5 lbs (22kg)
- Direct Weather PerformanceIEC 529/IP 55
- FinishGray
- Recommended High-Pass80 Hz, 24 dB Butterworth"
- Frequency Range70 - 20,000 Hz -10 dB
