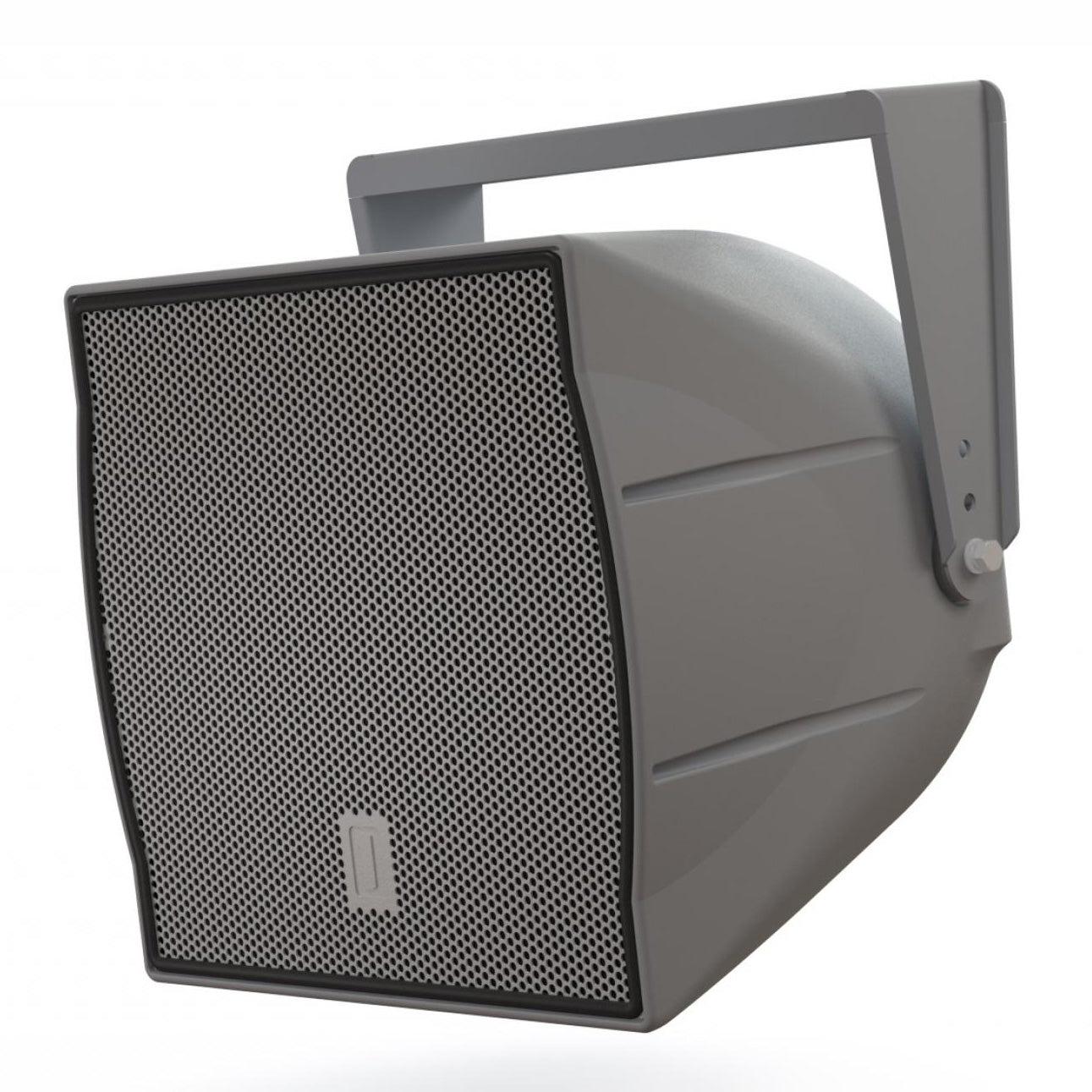

One Systems ONE.SP12T-GRAY 12" Two-Way Silver Series Speaker
One Systems ONE.SP12T-GRAY 12" Two-Way Silver Series Speaker
SoundPro Item: 135867 | Part Number: ONE.SP12T-GRAY
Usually ships in 5-7 business days
- High-performance horn-loaded 12" two-way speaker that provides high intelligibility and prodigious output capability
- 400W, 3-tap autoformer with low insertion loss and wide bandwidth (taps at 400, 200 and 100W) at 70.7 or 100V
- High 103 dB (1W / 1m) sensitivity
- Large-sized 60x40 degree horn and 3" HF driver with titanium diaphragm provides superb pattern control and impressive projection
- Includes robust U-Bracket made of structural steel with dual-layer, zinc-rich powder coating
- Stainless steel rigging points provide long-term safety and high corrosion resistance
- IP 55 direct weather rating
- Optional SP.PMK and SP.PMT pole mount kits available for mounting to round or square poles
The One Systems' ONE.SP12T is a weather protected sound reinforcement system. The high-density polyethylene enclosure is UV-resistant and is ported to aid low frequency extension. The 12" two way is horn-loaded to achieve higher SPL than would otherwise be possible. There are 5 integrated rigging points, which can be used in conjunction with the included U-Bracket kit for mounting to walls or ceilings. Two optional Pole Mount Kits are available. The grille is made from CNC punched steel, and coated in a two-layer zinc rich, UV resistant powder coat finish.
The 12" woofer uses a treated paper pulp cone for resistance against moisture absorption and dry rot. The high energy ferrite magnetics ensure high SPL for maximum coverage from a small system. The high frequency driver is mounted in front of the woofer to a large-mouthed horn that provides 60x40 dispersion. This allows the compression driver to be crossed over at a lower frequency to maintain full pattern control. The large format compression driver in the ONE.SP12T is a new design which provides extremely high output capability and avoids the need for separate mid and high frequency drivers. The system offers taps at 400W, 200W and 100W at either 70.7 or 100V.
The ONE.SP12T is well suited to outdoor environments where a reliable, weatherproof system is specified.
- Frequency Response90 - 14,000 Hz + 3 dB
- Frequency Range70 - 20,000 Hz -10 dB
- Power Handling
- 600W continuous
- 1200W program
- 2400W peak*
- NOTE: All system power handling ratings are amp headroom dependent
- Sensitivity (1W @1m)103 dB
- Calculated Output Capability
- 129 dB continuous
- 135 dB peak
- Coverage (HxV)60x40 degrees
- Nominal ImpedanceAutoformer taps at 400, 200, 100W
- Input Connection2m (6.6 ft) 5-conductor cable
- LF Transducer12"/305mm with 3 inch voice coil
- HF Transducer3" voice coil with titanium diaphragm
- Dimensions (HxWxD)16.1x17.2x18.3" (407.8x437.1x464mm)
- Net Weight50.7 lbs (23kg)
- Direct Weather PerformanceIEC 529/IP 55
- FinishGray
- Recommended High-Pass80 Hz, 24 dB Butterworth
