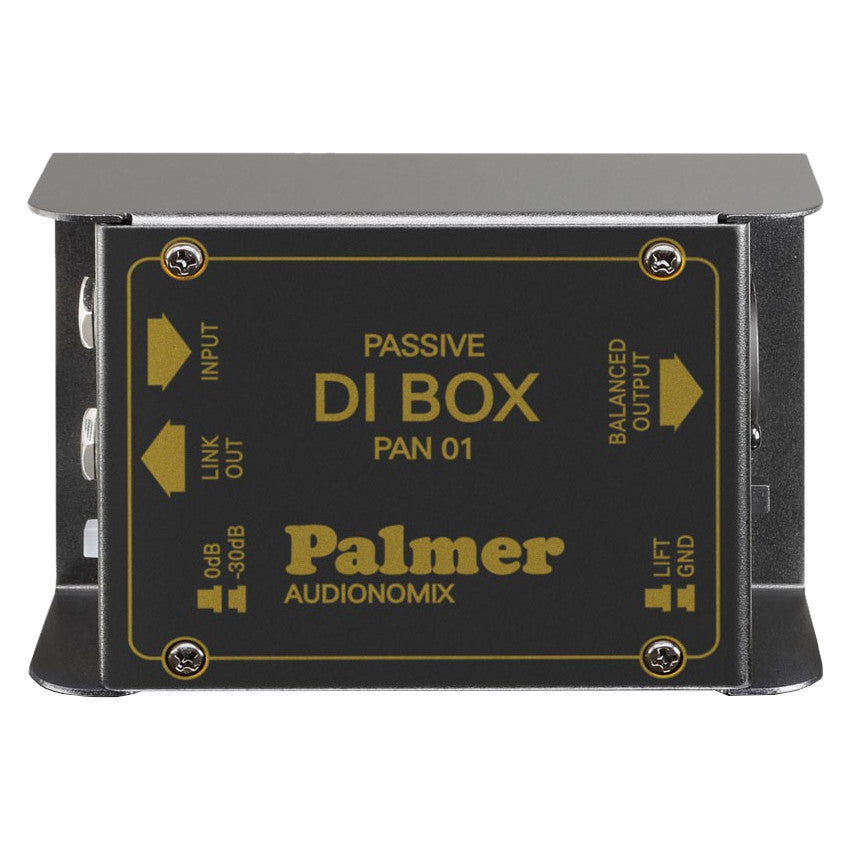

Palmer PAN 01 Passive DI Box

Palmer PAN 01 Passive DI Box

SoundPro Item: 123157 | Part Number: PAL-PAN01

Regular price $79.99
Regular price $79.99 Sale price $79.99
Your Price Sold out
MSRP: $79.99 | MAP: $79.99

Usually ships in 5-7 business days

  • Passive DI box
  • Jack input with parallel "THRU" output
  • Transformer balanced XLR output
  • Attenuable input sensitivity can handle both line level and speaker level signals

The Palmer PAN 01 is a Passive DI box. Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

View full details

Specifications

Dimensions
Width
110 mm
Depth
73 mm
Electrical
Input Impedance (@ 60 Hz)
60k Ohm(s)
Audio
Channels
1
Output Connectors
6.3 mm jack, XLR
Output Impedance
600 Ohm(s)
Frequency Response
20 - 20000 Hz
Connectivity
Inputs
1
Input Connectors
6.3 mm jack
Max. Input Level
+ 54 dBu
Input Pad
0 / -30 dB
Outputs
1
THRU outputs/channel
1
Max. Output Level
+ 4 dBu
Shipping
Weight
0.34 kg
General
Type
passive
Transformer Balanced
Yes
Ratio
10
Controls
attenuator, ground lift
Cabinet
material sheet steel
Cabinet Surface
Powder coated
