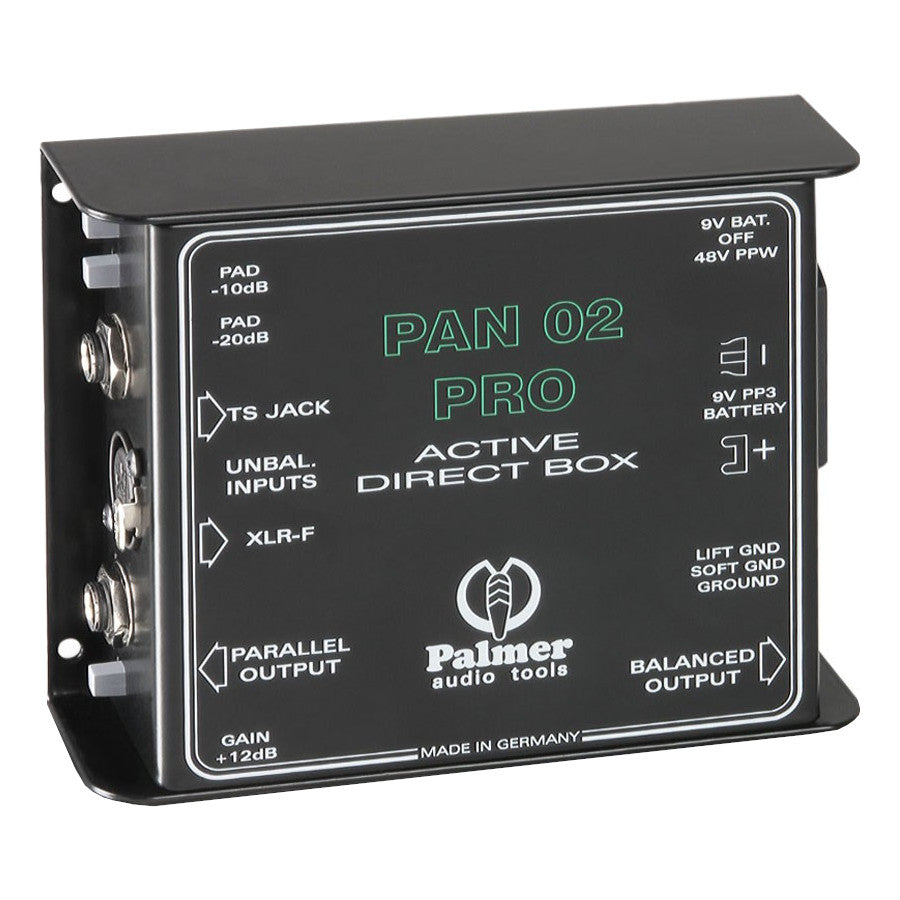

• Palmer PAN 02 PRO Professional Active DI Box

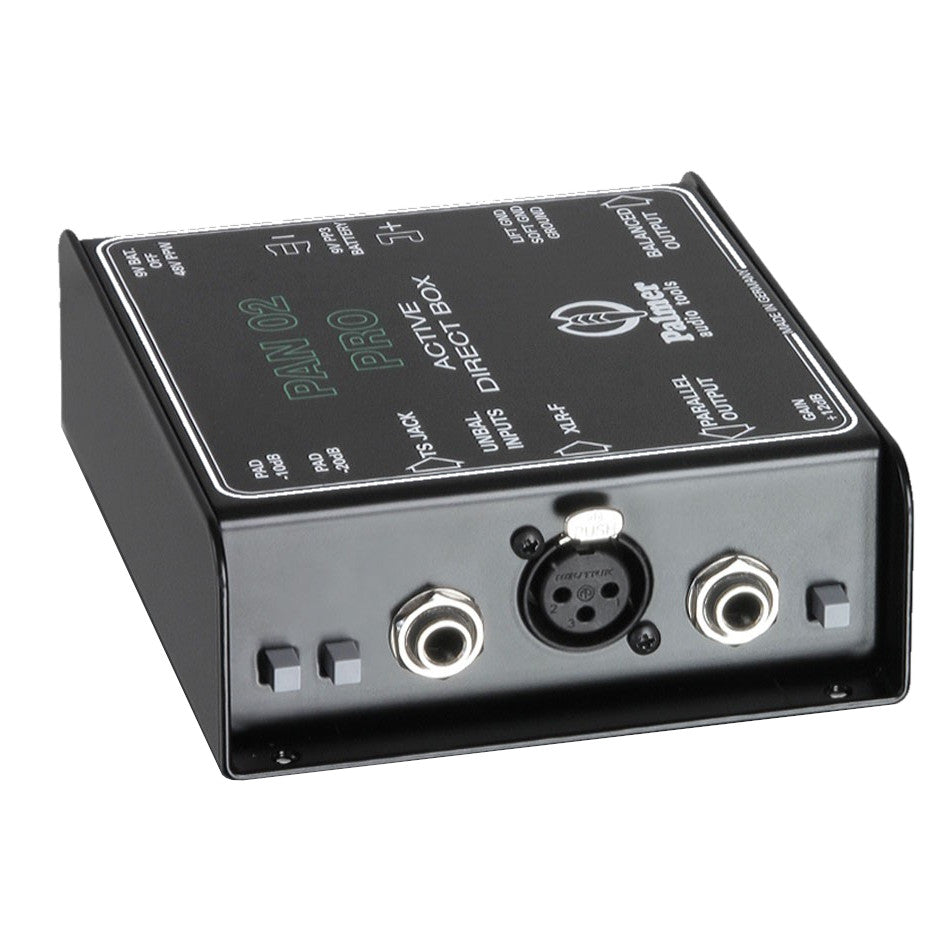

  • Palmer PAN 02 PRO Professional Active DI Box right

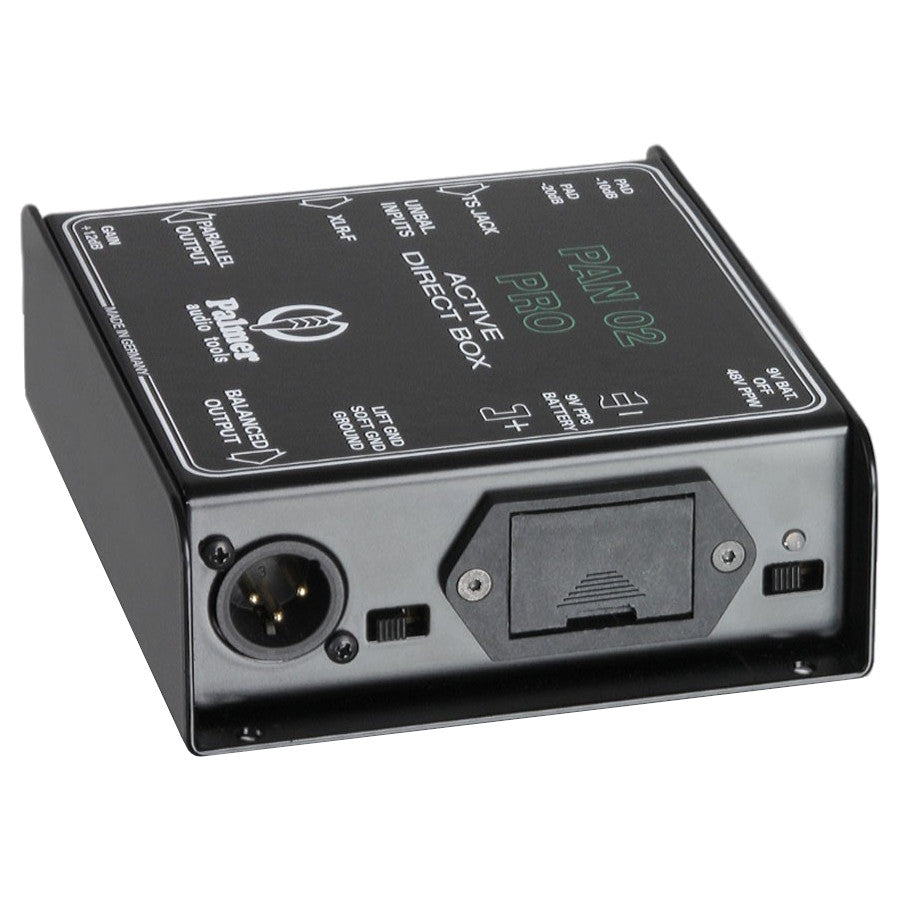

  • Palmer PAN 02 PRO Professional Active DI Box left
1 3

Palmer PAN 02 PRO Professional Active DI Box

Palmer PAN 02 PRO Professional Active DI Box

SoundPro Item: 123160 | Part Number: PAL-PAN02PRO

$259.99
$259.99 $259.99
Your Price Sold out
MSRP: $259.99 | MAP: $259.99

Usually ships in 5-7 business days

  • First-class Active Di-box
  • Unbalanced XLR Input
  • 3-way attenuator (-10, -20, -30dB)
  • Switchable gain (12dB)
  • Max. Output voltage +20 dB
  • Soft ground lift
Log in or register for YOUR best price

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a "lift" position allowing adjustments between a "soft and hard grounding." The balanced output is achieved with a high quality transformer in the Mumetall housing that was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-color LED indicates which source supplies the power.

View full details

Specifications

Dimensions
Width
116 mm
Depth
140 mm
Height
43.5 mm
Electrical
Operating Voltage
+48 V phantom power, 9 V block
Audio
Channels
1
Input Impedance
-10 & -20 dB: 70 k Ohm(s), -30 dB: 40 k Ohm(s), 0dB & 12 dB: 1 M Ohm(s)
Output Connectors
6.3 mm jack, XLR
Output Impedance
600 Ohm(s)
Frequency Response
20 - 20000 Hz
Connectivity
Inputs
2
Input Connectors
6.3 mm jack, XLR
Max. Input Level
+ 45 dBu
Input Pad
0 dB, -10 dB, -20 dB, -30 dB
Outputs
1
THRU outputs/channel
1
Max. Output Level
+ 20 dBu
Construction
Cabinet Material
sheet steel
Shipping
Weight
0.85 kg
General
Type
active
Transformer Balanced
Yes
Ratio
3.16:1, 10:1, 31.6:1, 1:4
Controls
Attenuator, battery/+ 48 V Power, Boost, ground lift
Cabinet Surface
Powder coated
