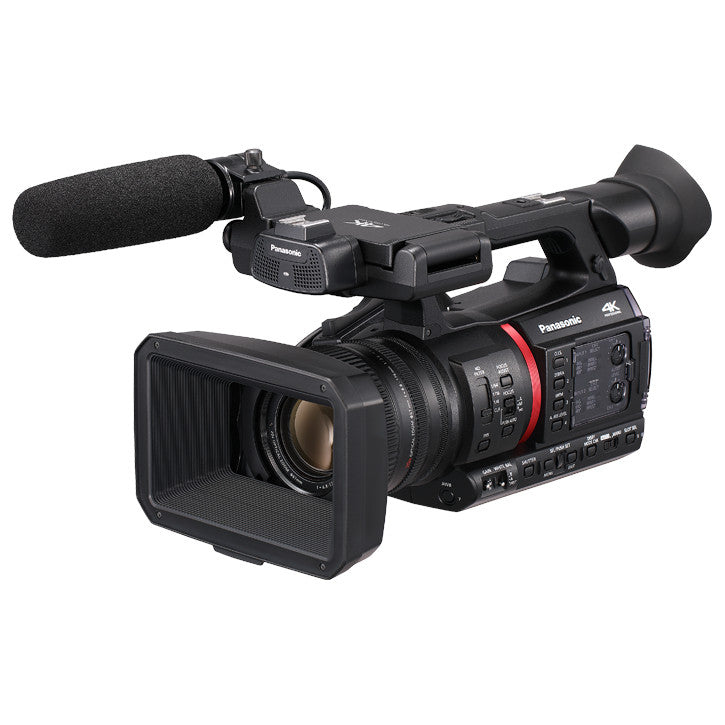

Panasonic AG-CX350 4K Handheld Camcorder

Panasonic AG-CX350 4K Handheld Camcorder

SoundPro Item: 51345 | Part Number: AG-CX350PJ

$5,269.91
$5,269.91 $5,269.91
Your Price Sold out
MSRP: $5,269.91 | MAP: $5,269.91

Usually ships in 5-7 business days

  • Top-of-the-line handheld camcorder that offers exceptional video quality in 4K resolution
  • Designed for professional video production, on-air broadcasting, and communication
  • Go beyond traditional news gathering and recording projects and explore innovative avenues such as live-streaming
  • Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom
  • New High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
  • Built-in 5-Axis Hybrid Image Stabilizer
  • HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
  • Intelligent AF and Focus Assist
  • Manual Three Rings
  • Cabled/Wireless Remote Control Capability
  • HEVC Codec for High-Image-Quality 10-bit UHD/60p Recording at Low Bit Rate
  • 10-bit Variable Frame Rate (VFR) without Cropping
  • MOV/AVCHD/P2 MXF File Formats Supported
  • Freeze Frame (Still Image Capture)
  • Double Memory Card Slots Improve Recording Reliability
  • USB Tethering (5G Smartphone Link) Compatible Steaming Distribution
  • Easy IP Connection: NDI | HX Capable — NDI | HX is enabled when optional NDI | HX licence is purchased from NewTek
  • Compatible with the IP remote control (AW-RP150GJ)
  • Wireless Control from a Tablet or Smartphone
  • TC Synchro Multi-Camera Recording Supported
  • Parallel Output of SDI and HDMI
  • Bonding Device Status Display
  • Simultaneous Display on High-Brightness, High-Definition LCD and High-Resolution OLED EVF
  • Broadcast-Grade Picture Quality Adjustment Functions
  • 24-bit PCM Audio 4-Channel Recording
  • Low Power Consuming, Large-Capacity Battery, Quick Charge
Log in or register for YOUR best price

The AG-CX350 by Panasonic is a top-of-the-line handheld camcorder that offers exceptional video quality in 4K resolution.

It is specifically designed for professionals in the fields of video production, on-air broadcasting, and communication applications.

With its advanced features and versatile functionality, this camcorder allows users to go beyond traditional news gathering and recording projects and explore innovative avenues such as live-streaming.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
7-1/8 x 6-13/16 x 12-1/4" (180x173x311mm), excluding protrusion and eye cup
Pickup Device 1.0-type (effective size)
MOS solid state image sensor
Focal Length
f=8.8 mm to 176 mm
Filter Diameter
67 mm
Electrical
Power Consumption
17W (when the LCD monitor is used), 11.5W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)
Audio
Sensitivity
When [HIGH SENS.] mode F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
Digital Audio
-
Audio Compression Format
AAC-LC
Audio Input/Output
-
Audio Input/Output | SDI OUT
Linear PCM 2 ch
Audio Input/Output | HDMI OUT
Linear PCM 2 ch
Output
2.0 V ± 0.5 V [p-p] low impedance
Optics
Color Temperature Setting
ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
i.Zoom
×32 (FHD), ×24 (UHD)
DIGITAL ZOOM
×2/×5/×10
Connectivity
VIDEO OUTPUT
-
Video Output | SDI OUT
BNC x 1, SDI REC REMOTE supported
Video Output | HDMI OUT
HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported, Output format (4:2:2 10 bit): 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p1280 × 720: 59.94p, 50p720 × 480: 59.94p720 × 576: 50p
INPUT 1/2
XLR (3-pin) x 2 (INPUT1, INPUT2), Input high impedance, LINE/MIC/MIC+48V (switchable SW)
OTHER INPUT/OUTPUT
-
Input
1.0 V to 4.0 V [p-p] 10 KΩ
USB 2.0 HOST
Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
USB 3.0 DEVICE
USB 3.1 GEN1 Type-C, USB Mass storage function, No USB bus power function
Construction
LENS
Optical image stabilizer lens, optical 20x motorized zoom, Shortest Shooting Distance (M.O.D.):, Approx. 10 cm (W), 1.0 m (T) from the front lens
Gain Setting
L/M/H selector switch, -3 dB to 18 dB (Adjustable in 1 dB steps), 24dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button)
Lens Hood
Hood with lens cover
Controls
Network Protocol
RTSP/RTP/RTMP/RTMPS
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Operating Humidity
10% to 80% (no condensation)
General
Body
approx. 1.9 kg (4.19 lbs) (body only, excluding lens hood, battery, and accessories)
Shooting
approx. 2.3 kg (5.07 lbs) (including lens hood, battery, and microphone holder)
Camera Unit
-
Effective Pixels
15,030,000 pixel
F Value
F2.8 to F4.5
35 Mm Equivalent
24.5 mm to 490 mm
ND Filter
Clear, 1/4, 1/16, 1/64
IR Filter
Incorporates the ON/OFF control function
When [SYSTEM MODE] = 59.94 Hz 59.94i/59.94p Mode
1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.29.97p mode: 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.,1/4000 sec., 1/8000 sec., 1/10000 sec.23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
When [SYSTEM MODE] = 50.00 Hz 50i/50p Mode
1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.25p mode: 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
Shutter Open Angle
3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
VFR Recording Frame Rate
When [SYSTEM MODE] = 59.94 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps), When [SYSTEM MODE] = 50.00 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)
Super Slow Recording
When [SYSTEM MODE] = 59.94 Hz 1920 x 1080 (FHD): shooting frame rate 120 fps, When [SYSTEM MODE] = 50.00 Hz 1920 x 1080 (FHD): shooting frame rate 100 fps
Horizontal Resolution
2000 TV or higher (UHD: center), 1000 TV or higher (FHD: center)
Memory Card Recorder
-
Recording Media
SDHC memory card (4 GB to 32 GB), SDXC memory card (32 GB to 128 GB), UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported, microP2 card (A series, B series), Please see back cover for the “Available Memory Card” table.
Recording Slot
microP2/SDXC UHS-II card slot x 2
Recording Pixels
3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
System Frequency
59.94 Hz/50.00 Hz
Recording File Format
MOV (AVC), MOV (HEVC), AVCHD
Recording Format
Please see page 4 for the “Recording Format” table.
Recording Time
Please see back cover for the “Recording Time” table.
2 Slot Functions
Relay Rec, Simultaneous Rec, Background Rec
Special Recording Functions
Pre Rec, Interval Rec, Time Stamp
Digital Video
-
MOV
4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
AVCHD
4:2:0 8 bit
Digital Video | Video Compression Format
H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile
Headroom
12 dB/18 dB/20 dB switchable (menu)
Live Streaming
-
Live Streaming | Video Compression Format
H.264/MPEG-4 AVC Main Profile, High Profile
HD
0.8 V [p-p], 75 Ω
SD
0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit): 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF1280 × 720: 59.94p, 50p720 × 480: 59.94i720 × 576: 50i
VIDEO OUT
3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω
Built-in Microphone
Stereo microphone
MIC
-40 dBu/-50 dBu/-60 dBu (switchable menu)
LINE
+4 dBu/0 dBu (switchable menu)
Headphone
3.5 mm diameter stereo mini jack x 1
AV OUT
3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
Speaker
20 mm diameter, round x 1
TC IN/OUT
BNC x 1, Used as the input and output terminals (switchable menu), 2.5 mm diameter super mini jack
REMOTE
2.5 mm diameter super mini jack
LAN
RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
DC IN 12V
DC 12 V EIAJ Type 4
Monitor/Viewfinder
-
LCD Monitor
3.5 type TFTLCD color monitor (3:2), approx. 1,620,000 dots, Touch panel, video display (16: 9) area: Approx. 1,370,000 dots
VIEWFINDER
0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots
Power
Power
DC 7.28V (when the battery is used), DC 12V (when the AC adaptor is used)
