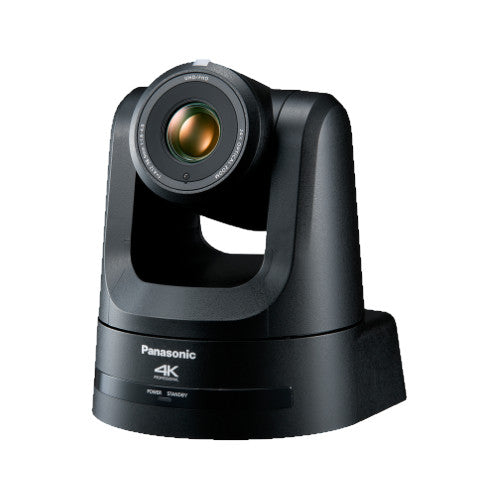

• Panasonic AW-UE100 4K/60P Full NDI PTZ Camera

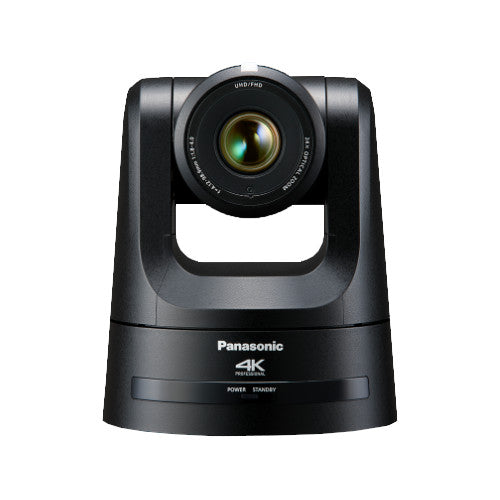

  • Panasonic AW-UE100 4K/60P Full NDI PTZ Camera front
1 2

Panasonic AW-UE100 4K/60P Full NDI PTZ Camera | Color: Black

Panasonic AW-UE100 4K/60P Full NDI PTZ Camera | Color: Black

SoundPro Item: 122032 | Part Number: AW-UE100KPJ

$6,940.19
$6,940.19 $6,940.19
Your Price Sold out
MSRP: $6,940.19 | MAP: $6,940.19

Usually ships in 5-7 business days

  • Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT Supports 4K 60p shooting and 12G-SDI output
  • Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
  • Supports FreeD for building AR/VR systems
  • Adopts new mechanical pan/tilt for improved responsiveness and quietness
Log in or register for YOUR best price

The Panasonic AW-UE100 4K/60P Full NDI PTZ Camera supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

View full details

Specifications

Electrical
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
Audio
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Optics
Focus
Switching between auto and manual
Connectivity
Input Connector
DC 12 V IN, G/L IN, MIC/LINE input
Video Output
HDMI
Input / Output Connector
LAN
Construction
Conversion Lens
not supported
Color Separation Optical System
1MOS
General
Current Consumption
3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Imaging Sensors
1/2.5-type 4K MOS x 1
Effective Pixels
Approx. 8,490,000 pixels
Camera Unit
Lens, Zoom, Angle of View Range, Focus Distance, Standard Sensitivity, Gain Selection, Electronic Shutter Speed, Synchro Scan, White Balance, Output Format
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Minimum Illumination
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N
60dB(typ) (When [Shooting Mode] is [Normal])
Horizontal Resolution
1500 TV lines Typ (Center area)
Frame Mix*2
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3
Chroma Amount Variability
OFF, –99 % to 99 %
Scene File
Scene1, Scene2, Scene3, Scene4
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
12G-SDI Out
SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
3G-SDI Out
SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
RS-422
CONTROL IN RS-422A (RJ-45)
Pan-tilt Head Unit
Camera/Pan-tilt Head Control, Pan/Tilt Operation Speed
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*6
Panning Range
±175°
Tilting Range
–30° to 210°*8
Quietness
NC25 or less
Supported Operating Systems and Web Browsers
Windows, Mac, iPhone / iPad, Android
Image Streaming Mode
JPEG (MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI®
Image Resolution
3840x2160, 1920x1080, 1280x720, 640x360, 320x180
IP Streaming
Image Transmission Setting (JPEG), Image Transmission Setting (H.264), Image Transmission Setting (H.265), Supported Protocol
*1
1dB steps
*2
This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
*3
Native output
*4
OVER 59.94i output (your monitor may recognize the signal as 59.94i).
*5
Use of an STP (shielded twisted pair) cable is recommended.
*6
To ensure safety, the unit must be secured using the mount bracket supplied.
*7
Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.
*8
Depending on the pan or tilt position, the camera may be reflected in the image
*9
Supported OS indicated are for browsers current as of August 2020
*10
It denotes “1080/23.98p over 59.94p”
Power
PoE++
IEEE802.3bt standard: DC 42 V to 57 V (Software authentication (LLDP) is supported)
