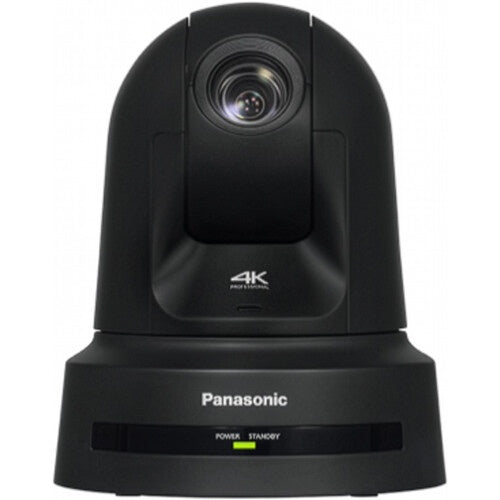

Panasonic AW-UE80 Premium Series 4K PTZ Camera With NDI and SDI | Black

Panasonic AW-UE80 Premium Series 4K PTZ Camera With NDI and SDI | Black

SoundPro Item: 207450 | Part Number: AW-UE80KPJ5

$4,999.00
$4,999.00 $4,999.00
Your Price Sold out
MSRP: $4,999.00 | MAP: $4,999.00

Usually ships in 5-7 business days

  • Full NDI, NDI|HX, And SRT Support Eliminates Protocol Converters In IP Workflows
  • Built-In Body Recognition Auto-Tracking Enables Single-Operator Presentation Coverage
  • Direct Drive Motor System Minimizes Operating Noise For Talent-Sensitive Environments
  • Dome Profile Housing Reduces Camera Presence In Performance And Corporate Spaces
  • FreeD Protocol Support Enables Real-Time Positional Data Feed For AR/VR Production
  • Triple Output Path Feeds SDI, HDMI, And IP Destinations Simultaneously
  • PoE+ 802.3at Support Simplifies Installation By Eliminating Separate Power Runs
Log in or register for YOUR best price

The Panasonic AW-UE80 is engineered for AV integrators, broadcast engineers, and production teams who need a single camera capable of serving corporate AV installs, houses of worship, higher education lecture capture, and live event production without compromise. Its dome-profile housing deliberately reduces the visual presence of the camera in sensitive environments — theatrical performances, executive boardrooms, and hybrid classrooms — while the direct-drive motor system keeps operating noise low enough to avoid disturbing talent or ambient audio capture.

For operators managing multi-camera workflows, the AW-UE80 delivers three simultaneous output paths — 3G-SDI via BNC, HDMI 2.0, and IP via RJ45 — giving integrators flexibility to feed switchers, recorders, and streaming encoders from a single unit. Full NDI support alongside NDI|HX and SRT means the camera slots cleanly into IP-based production infrastructures without requiring protocol converters. FreeD protocol support extends its value into AR and virtual production environments where positional data must be fed to graphics engines in real time.

Built-in body-recognition auto-tracking removes the need for a dedicated camera operator during presentations or panel discussions, making it the right choice for institutions deploying unattended or minimally staffed production setups. Scalable control via web browser, AW-RM50 IR remote, or AW-RP150 and AW-RP60 hardware controllers — with a single controller able to address up to 200 units over IP — gives large-venue integrators the headroom to build expansive multi-camera systems around a standardized camera platform.

View full details

Specifications

Certifications
Certifications
CAN, FCC Part 15, ICES, UKCA
Dimensions
Dimensions (W x H x D)
8.3 x 6.7 x 6.7" / 211 x 171 x 170 mm
Weight
Product Weight
4.0 lbs / 1.8 kg (Body Only)
Imaging
Image Sensor
1/2.5"-Type MOS
Effective Sensor Resolution
8.49 Megapixel
Horizontal Resolution
1500 TV Lines
Minimum Illumination
3 Lux at f/1.8 Aperture
Focus Control
Autofocus, Manual Focus
White Balance Range
2000 to 15,000K
Flip / Mirror Support
Image Flip, Mirror (Vertical)
Precise Scan Rate Control
Yes
Lens
Max Optical Zoom
24x
Max Digital Zoom
28x (UHD 4K), 36x (1080p)
Focal Length
4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
Horizontal Field of View
74.1 to 3.3°
Vertical Field of View
46 to 1.9°
Diagonal Field of View
81.8 to 4.5°
Maximum Aperture
f/1.8 to 4
Minimum Focus Distance
3.9" / 100mm (Wide) to 47.2" / 120cm (Tele)
Video Capture
Video Output via HDMI
3840x2160 at 23.98/24.00/25/29.97 fps; 1920x1080p at 23.98/24.00/25/29.97/50/59.94 fps; 1920x1080i at 50/59.94 fps; 1280x720 at 50/59.94 fps
Video Output via SDI/BNC
1920x1080p at 23.98/24.00/25/29.97/50/59.94 fps; 1920x1080i at 50/59.94 fps; 1920x1080PsF at 23.98/25/29.97 fps; 1280x720 at 50/59.94 fps
Video Output via RJ45
1920x1080p at 23.98/24.00/25/29.97/50/59.94 fps
IP Streaming Protocols
HTTP/MPEG-TS/NDI/NDI HX/RTMP/RTMPS/SRT/TCP/UDP
IP Streaming Resolutions
320x180 to 1920x1080
Broadcast Output
NTSC/PAL
Internal Recording
No
Embedded Audio
HDMI/LAN (RJ45)/NDI/SDI
Audio Recording
2-Channel, 16-Bit, 48 kHz AAC LC
Control
Pan Range
350° (-175 to 175°) at 0.08 to 180°/s
Tilt Range
350° (-30 to 90°) at 0.08 to 180°/s
Tally Light
Yes
Connectivity

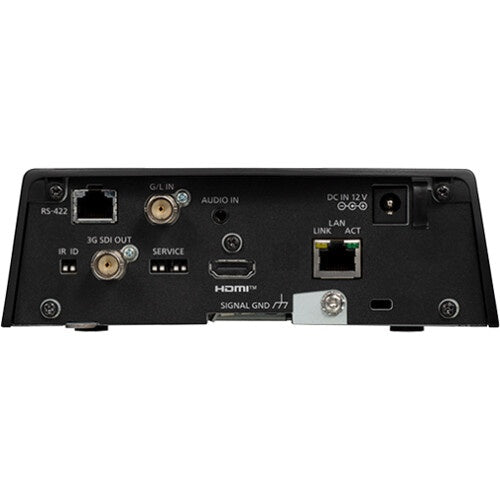

Video Outputs
1x HDMI 2.0 Output; 1x BNC (3G-SDI) Output
Audio I/O
1x 1/8" / 3.5mm TRS Stereo Line Input; 1x 1/8" / 3.5mm TRS Stereo Line Output
Network / Control
1x RJ45 (LAN, NDI) Video; 1x RJ45 (RS-422) Control Input
Built-In Microphone
Yes
Mounting
1x 1/4"-20 Female; 1x M4 Female
Power
PoE Support
Yes, PoE+ 802.3at
Power Input
1x Barrel (12VDC)
Power Consumption
1.8 A
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
Storage Temperature
-4 to 122°F / -20 to 50°C
Wireless
No
Compatibility
OS Compatibility
macOS 11 to 14.01, Chrome OS, Windows 10 to 11, Android, iPadOS
Max Network Cable Length
328.1' / 100m (Cat 5e); 3280.8' / 1000m (Cat 5e)
Shipping
Package Weight
8.61 lbs
Box Dimensions (L x W x H)
16.5 x 14 x 11.5"
Included Items
In The Box
Camera Body, Mounting Bracket, M3x6mm Screw with Two Washers, Safety Cable, 4x M4x10mm Bracket Screw, Lens Cap, Pan Stopper, AC Adapter, Power Cable, Limited 1-Year Manufacturer Warranty
