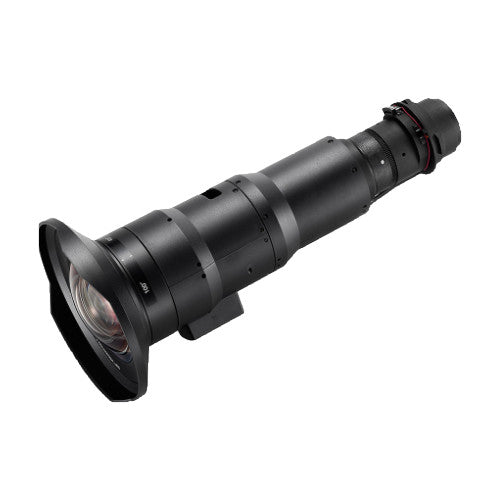

Panasonic ET-DLE020 1-Chip DLP Projector Ultra Short Throw Zoom Lens
Panasonic ET-DLE020 1-Chip DLP Projector Ultra Short Throw Zoom Lens
SoundPro Item: 113477 | Part Number: ET-DLE020
Usually ships in 5-7 business days
- Superior Flexibility for Easy Installation
- High Reliability for Continuous Operation
- On-Axis Rear Projection
- Zero Offset and Flexible Setup for Multi-Screen Projection
Conventional ultra-short-throw lenses demand accurate, time-consuming projector installation positioning with no margin for error. The ET-DLE020’s optical zoom, however, provides an installation margin of ±45 mm (±1.77”) and easy image adjustment at a throw-ratio of 0.280:1, all with zero image offset. Combines with Panasonic laser projectors*1 to support Wide-range Vertical and Horizontal Lens-Shift, more than doubling movable shift area of comparable lenses, increasing installation flexibility, and expediting setup.
- Lens type Ultra-Short-Throw Zoom Lens
- F value 2.0
- Focal Length (f) 4.1-4.4 mm
- Screen size 100-400 inches
- Throw ratio | WUXGA 0.280-0.299:1
- Lens-shift*1 | Vertical +50 % – -16 %
- Lens-shift*1 | Horizontal +10 % – -20 %
- Zoom Yes
- Dimensions (W×H×D) 170×170×389 mm ( 6 11/16” x 6 11/16” x 15 13/32” )
- Weight Approx. 3.2 kg (7.05 lbs)

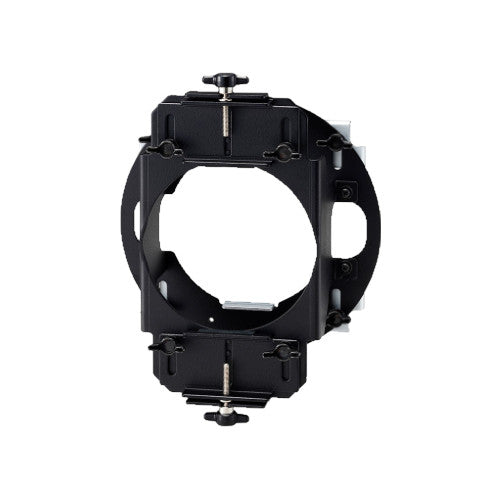

- Notes *1 Value is for ceiling installations at WUXGA resolution. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information: https://panasonic.net/cns/projector/calculator/tdc/. For floor installations, up and right shift will be defined as a positive value. Downand left shift will be defined as a negative value. *2 Please use this product with the included lens-bracket attachment.
- Throw ratio | WXGA 0.294–0.314:1
- Applicable projectors*2 PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ870 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620
- Throw ratio | XGA 0.290–0.309:1
