• Panasonic PT-FRZ55U 5000 Lumen 1-Chip DLP Laser Projector
1 1

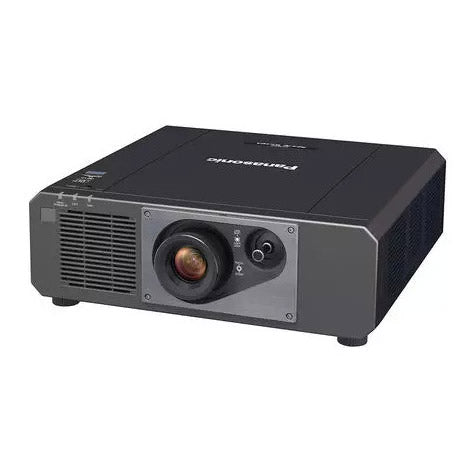

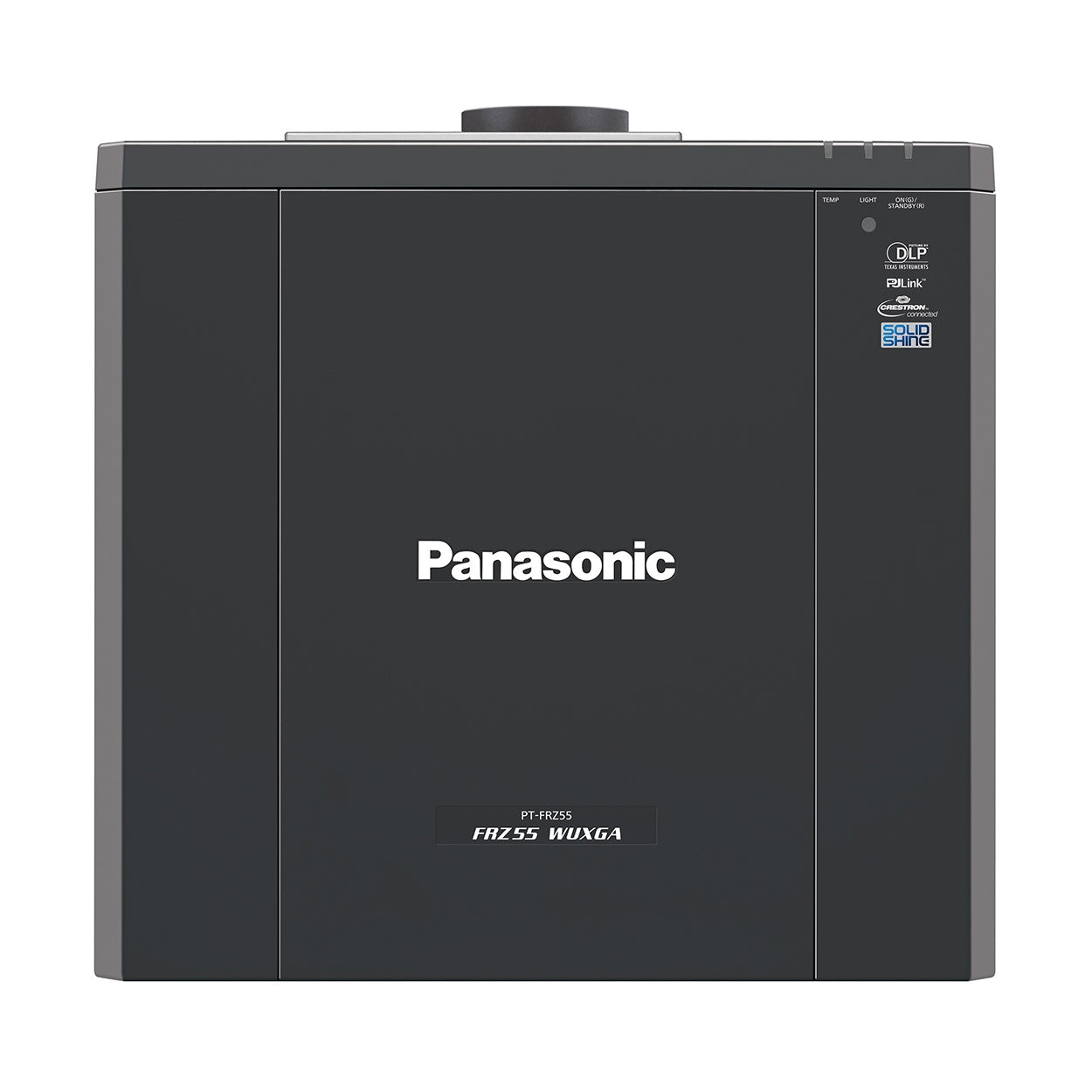

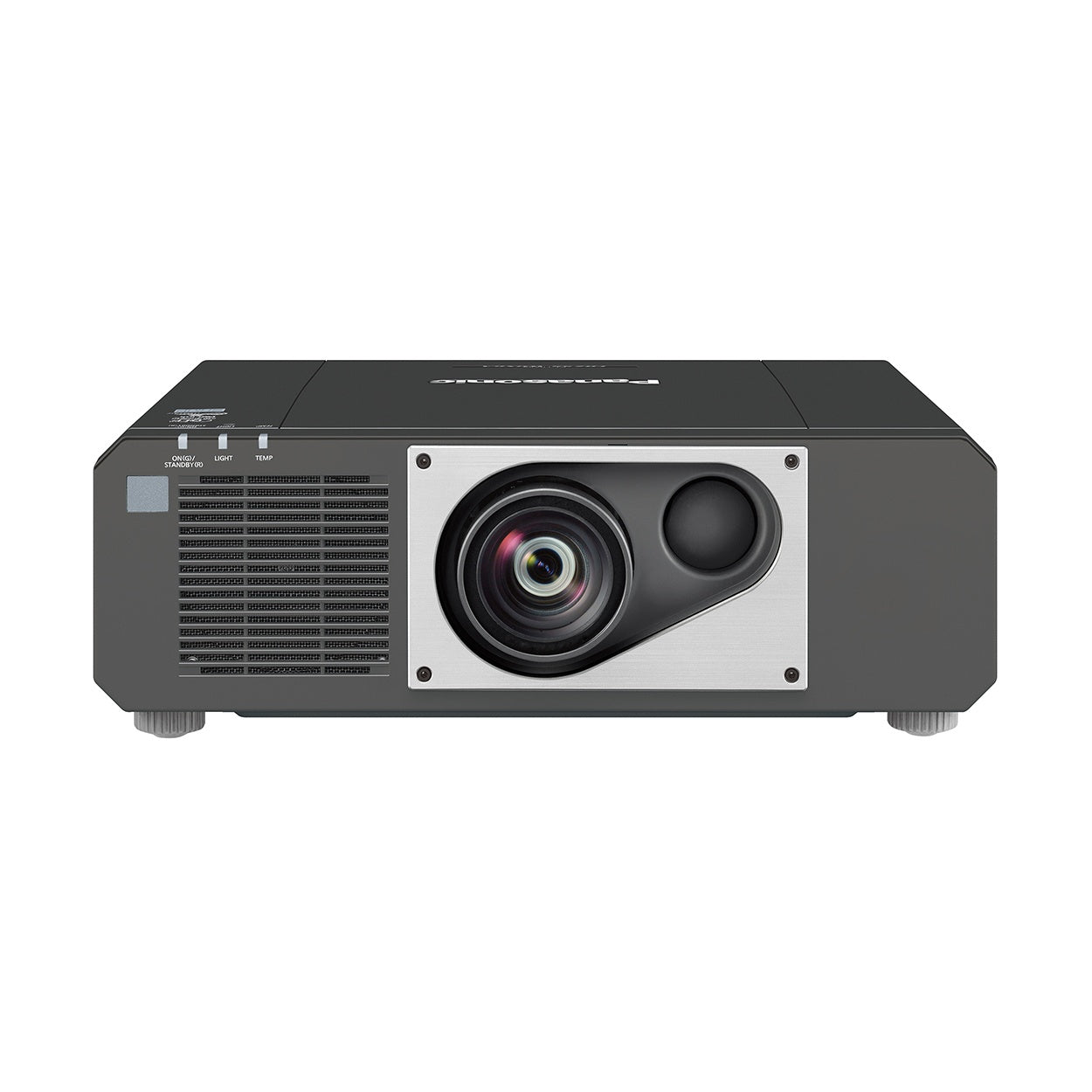

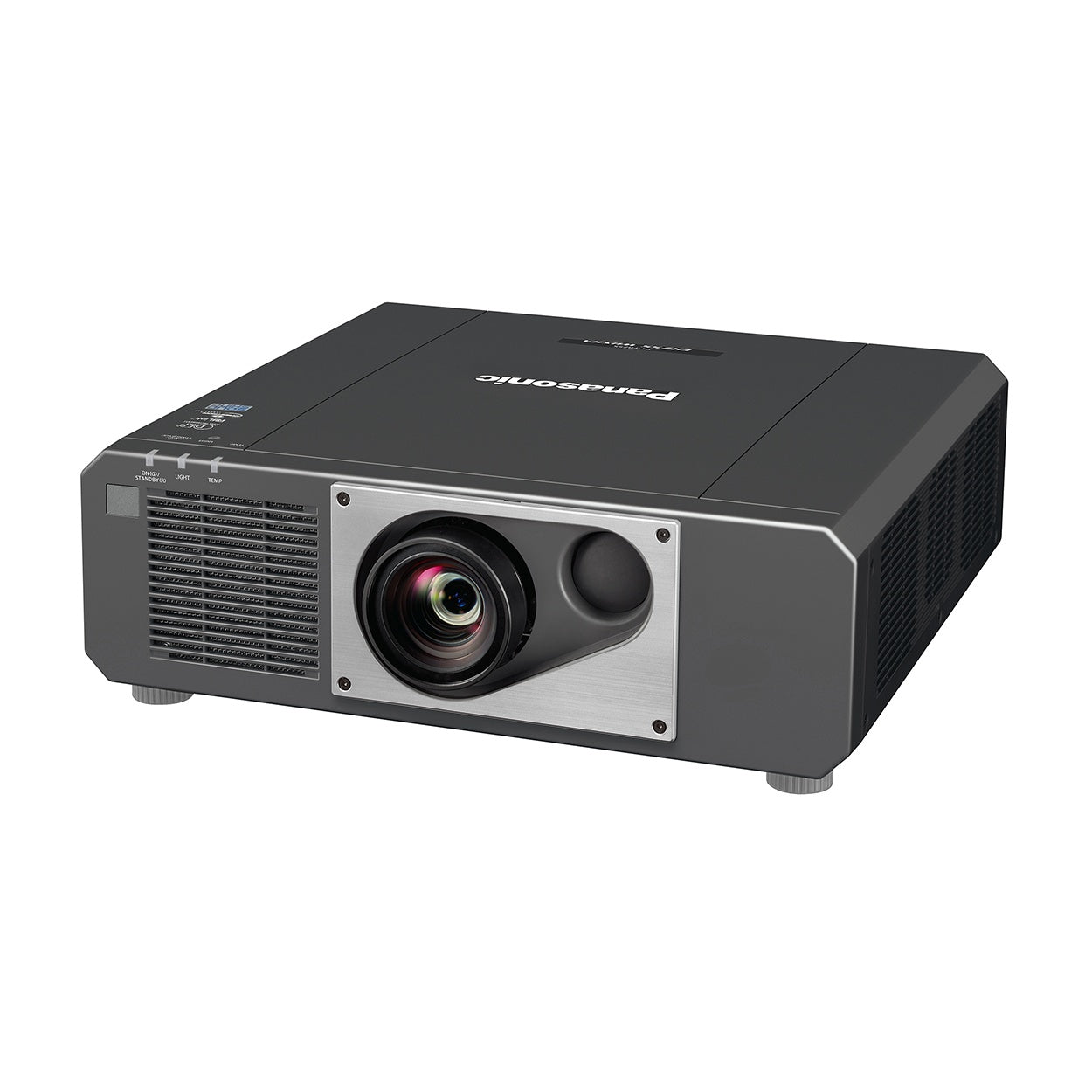

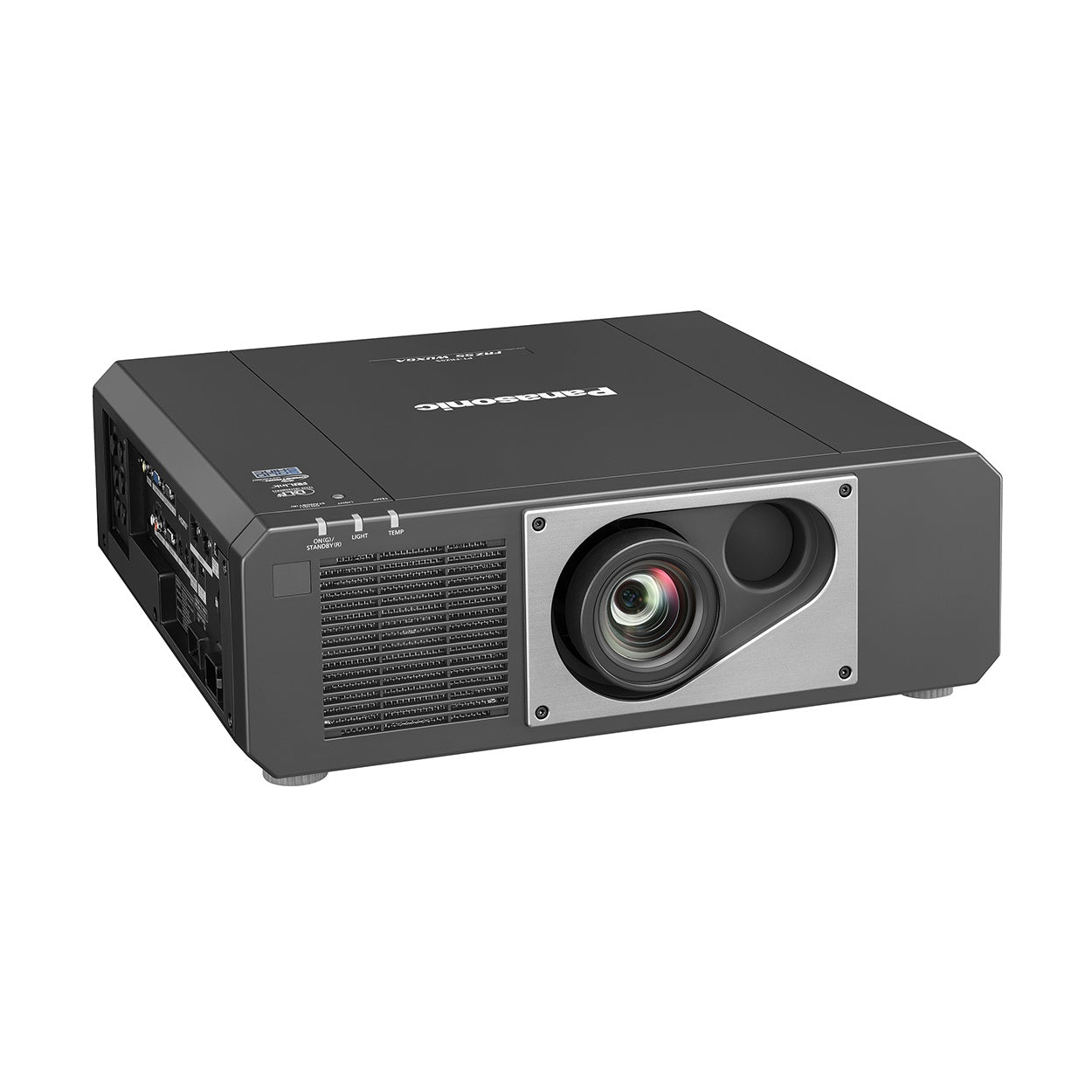

Panasonic PT-FRZ55U 5000 Lumen 1-Chip DLP Laser Projector

Panasonic PT-FRZ55U 5000 Lumen 1-Chip DLP Laser Projector

SoundPro Item: 121976 | Part Number: PT-FRZ55BU7

$21,780.00
$14,999.00 $21,780.00
Your Price Sold out
MSRP: $14,999.00 | MAP: $21,780.00

Usually ships in 5-7 business days

  • Laser 1-chip DLP, 5200 lumens (centre), WUXGA
  • DLP™ imaging technology, Quartet Colour Harmonizer, Rich Colour Enhancer, and digitally modulated Dynamic Contrast 2 optimization
  • Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
  • 0.8:1 short-throw lens
  • Supports uncompressed 4K/60p input signals via HDCP 2.2-compliant HDMI® inputs or DIGITAL LINK terminal
Log in or register for YOUR best price

The Panasonic PT-FRZ55U 5000 Lumen 1-Chip DLP Laser Projector's Multi-Laser Drive Engine has failover circuit protection while optional Early Warning software reinforces reliability.

DLP™ imaging technology, Quartet Colour Harmonizer, Rich Colour Enhancer, and digitally modulated Dynamic Contrast 2 optimization coalesce in images of surpassing brightness, color, and clarity regardless of ambient light levels. Powered 0.8:1 short-throw lens for rear projection joins DIGITAL LINK and CEC-ready HDMI® terminals supporting 4K/60p input signals*2. Separate LAN terminal and USB-DC outlet further streamline installation. Operation is almost inaudible at 27 dB*3. Heat-pipe cooling for the laser modules and heat-sinks for airtight DMD block support filterless design for 20,000 hours of maintenance-free projection.

View full details
  • Projector Type1-Chip DLP™ projector
  • LensFixed (throw ratio: 0.8:1), powered focus, F 1.75, f 11.9 mm
  • Resolution1920 x 1200 pixels
  • Keystone Correction RangeVertical: ±40 °, Horizontal: ±20 °. When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,correction cannot be made exceeding a total of ±60°
  • Installationceiling/floor, front/rear, free 360-degree installation
  • Cabinet Materialsmolded plastic
  • Applicable SoftwareLogo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
  • Contrast Ratio*120,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)
  • Power SupplyAC 100–240 V, 50/60 Hz
  • Light Sourcelaser diodes
  • Light Output5,000 lm*1/5,200 lm (Center)*2
  • Operation noise*127 dB (Quiet Mode) (TBD), 32 dB (Normal Mode)
  • Screen Size (diagonal)1.02–7.62 m (40–300 in), 16:10 aspect ratio
  • Center-to-corner zone ratio*190%
  • Time until light output declines to 50 %*320,000 hours (NORMAL)
  • Lens Shift (from the origin point of the lens mounter)
    • Vertical: ±4.4 % (powered)
    • Horizontal: ±2.1 % (powered)
  • DLP™ chip | Panel size17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
  • DLP™ chip | Display methodDLP™ chip x 1, DLP™ projection system
  • DLP™ chip | Number of Pixels2,304,000 (1920 x 1200 pixels)

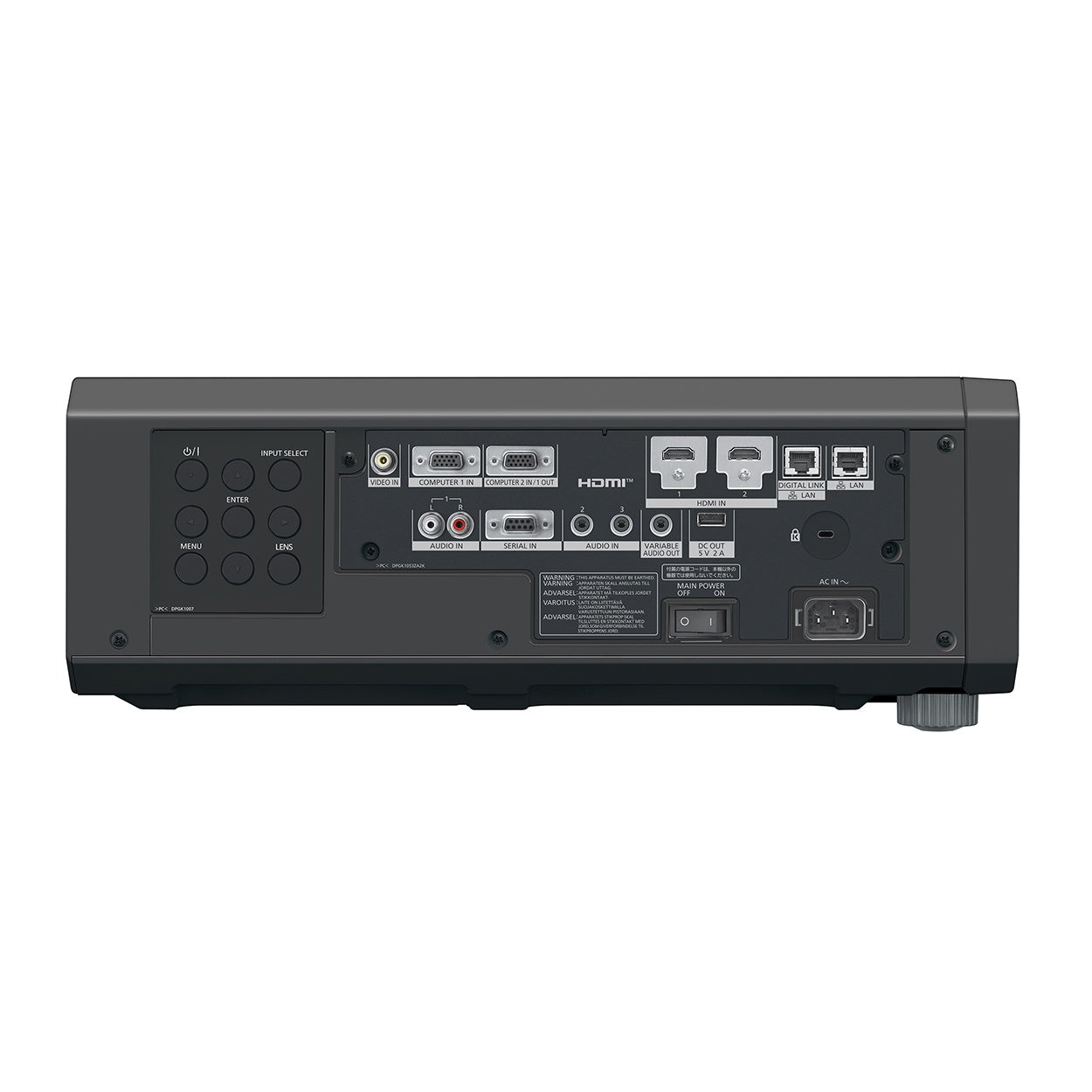

  • Terminals | LANRJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  • Terminals | HDMI INHDMI 19-pin x 2 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*4 ), CEC supported
  • Terminals | DIGITAL LINKRJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible,4K/60p signal input*4
  • Terminals | COMPUTER 1 IND-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
  • Terminals | VIDEO INPin jack x 1 (composite video)
  • Terminals | AUDIO IN 1Pin jack x 2 (L, R)
  • Terminals | SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Terminals | USBUSB connector (Type A) x 1 (Output 5 V/2 A)
  • Terminals | AUDIO OUTM3 x 1 (Variable)
  • Terminals | Computer 2 IN/1 OUTD-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
  • Terminals | Audio In 2/3M3 x 1/M3 x 1
  • Operating Temperature32-113°F (0-45°C)
  • Operating Humidity10-80% (no condensation)
  • Weight *6approx. 36.6 pounds (16.6 kg)
  • Dimensions (WxHxD)19.63x5.63x18.9"
  • Note
    • *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
    • *2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
    • *3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment.
    • *4 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®
    • *5 With legs at shortest position
    • *6 Average value. May differ depending on the actual unit
