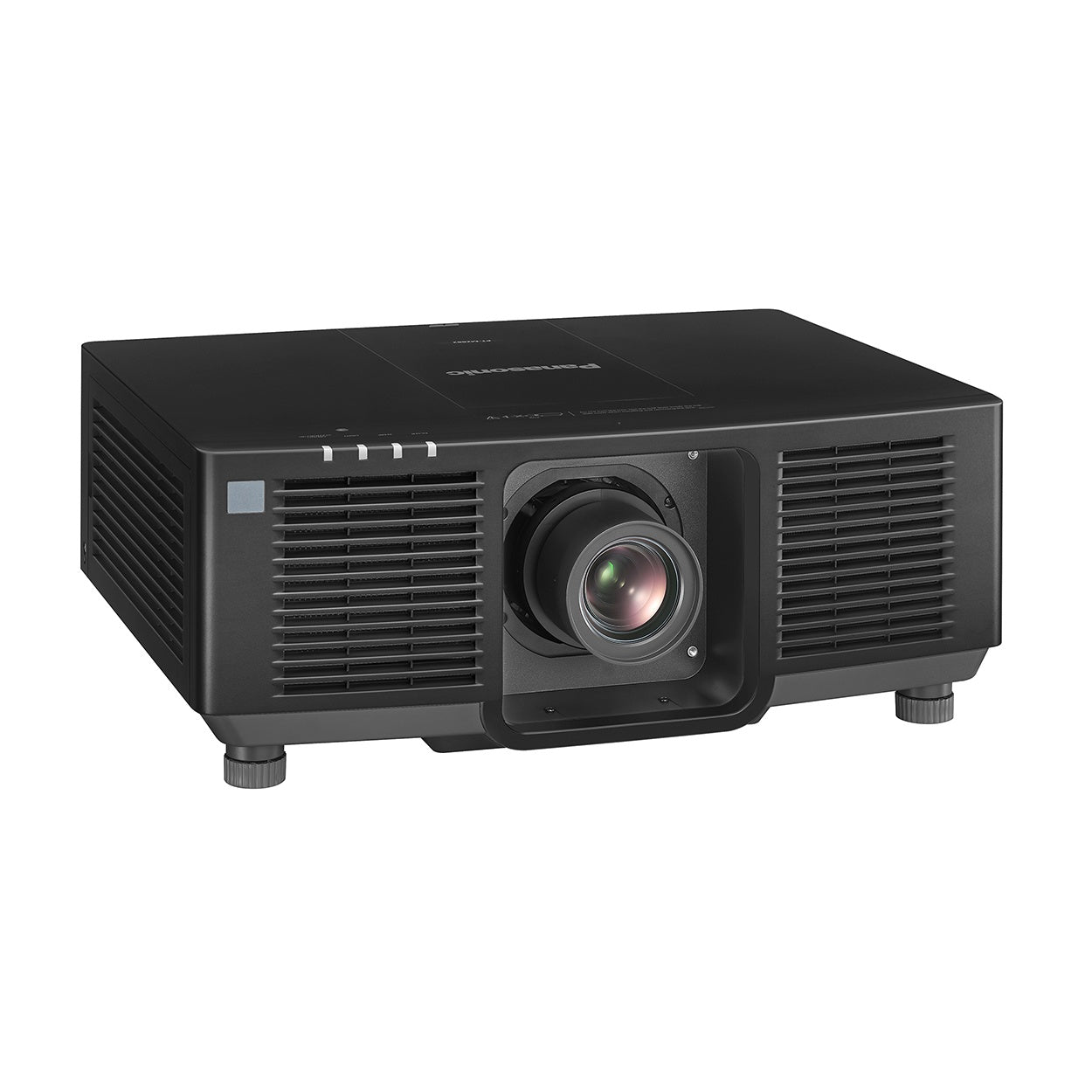

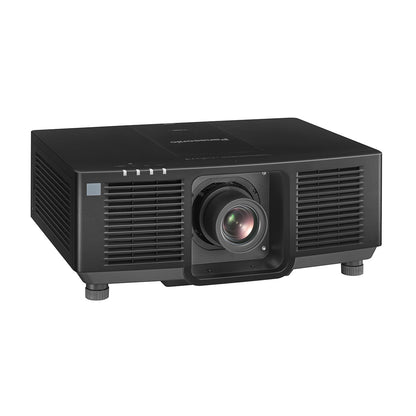

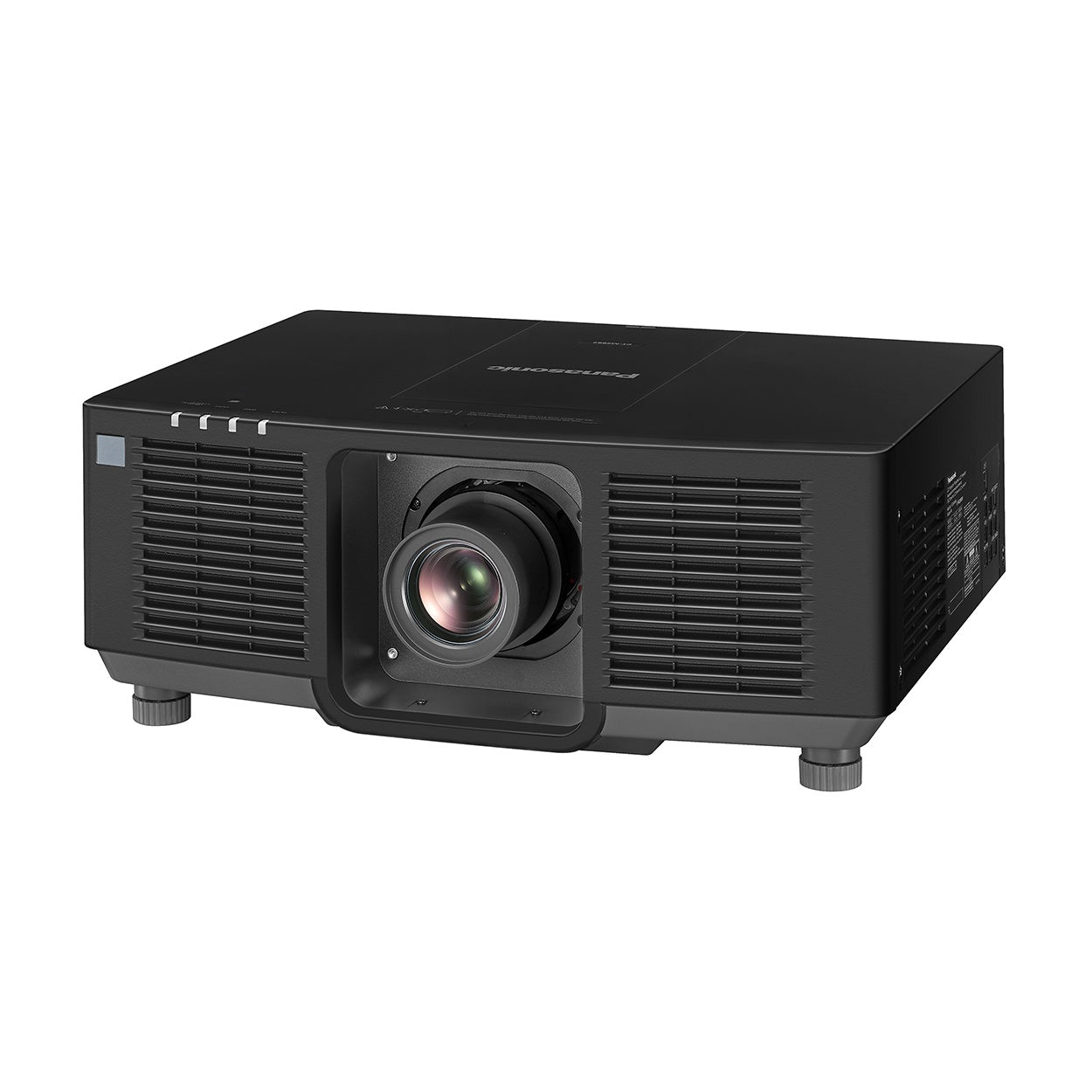

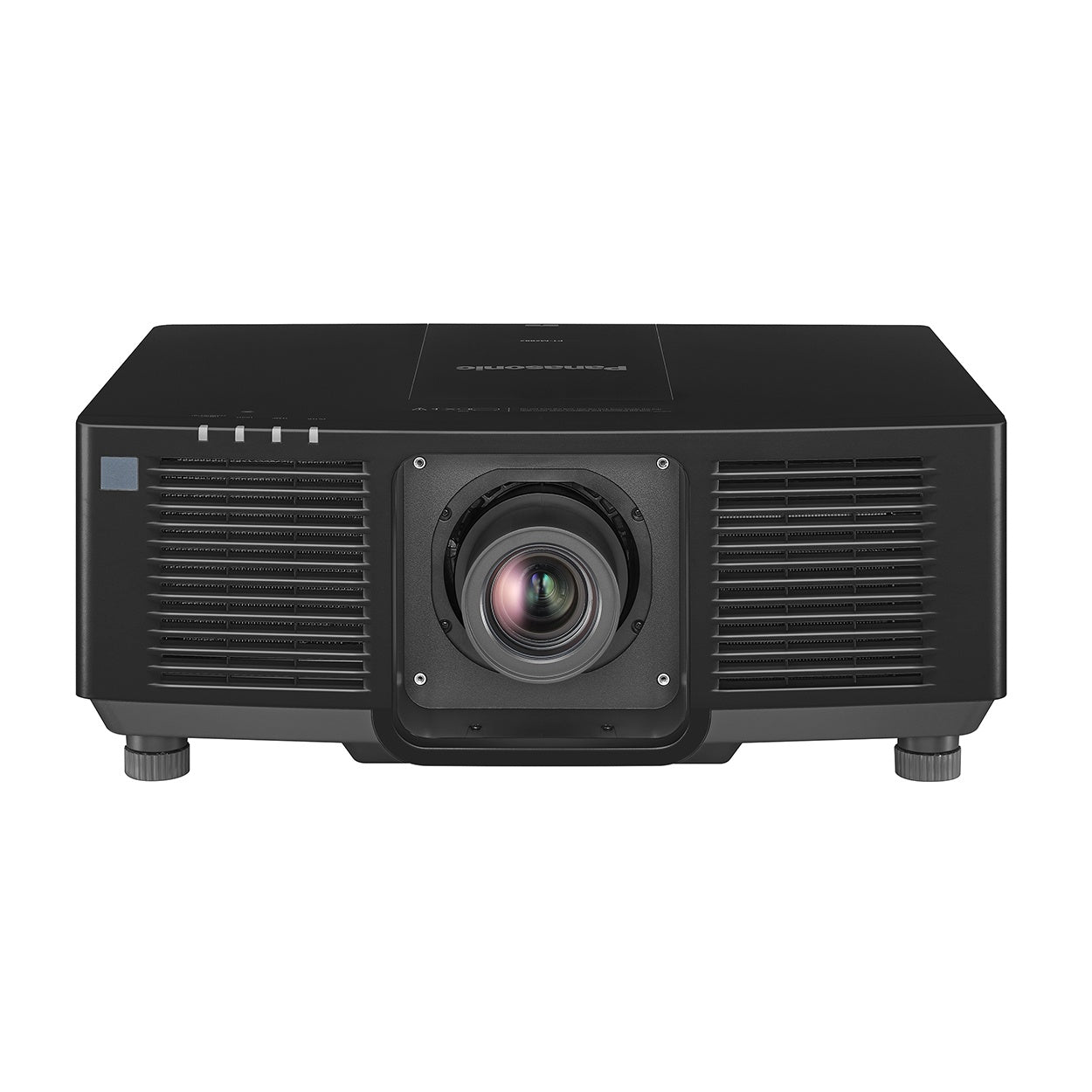

Panasonic PT-MZ Series LCD Projector WUXGA 3LCD With 360° Install | 8,200 lm

Panasonic PT-MZ Series LCD Projector WUXGA 3LCD With 360° Install | 8,200 lm

SoundPro Item: 204910 | Part Number: PT-MZ882BU8

$14,599.00
$14,599.00 $14,599.00
Your Price Sold out
MSRP: $14,599.00 | MAP: $14,599.00

Usually ships in 5-7 business days

  • Multi-Laser Drive Engine Maintains Operation Through Individual Diode Failures For Continuous Uptime
  • Auto Power On Resumes Projection Upon Signal Detection Without Manual Restart
  • Powered Lens Shift Adjusts Image Position Vertically And Horizontally From The Installation Location
  • Dual RJ-45 Ports Isolate HDBaseT Video From Network Management Traffic
  • USB-A DC Output Powers Wireless Presentation Devices Without Additional Adapters
  • Daylight View Basic Corrects Image Brightness In Real Time Based On Ambient Light Conditions
  • Data Cloning Function Replicates Settings Across Multiple Units Via LAN For Fleet Deployment
Log in or register for YOUR best price

Built for enterprise environments where uptime and integration density matter, this WUXGA laser projector combines 8,200-lumen output with a Multi-Laser Drive Engine that continues operating even during diode failure. The SOLID SHINE light source reaches 20,000 hours to half brightness in Normal mode, eliminating lamp replacement cycles and reducing fleet maintenance overhead across education and corporate campuses.

Auto Power On enables the projector to resume operation automatically when it detects an input signal, even from a powered-down state—eliminating manual intervention in scheduled presentation spaces. Three HDMI inputs support 4K/60p with HDCP 2.3, while DIGITAL LINK over HDBaseT consolidates video, network, and serial control on a single RJ-45 run. Dual Ethernet ports separate HDBaseT traffic from LAN management, and the 5V/2A USB-A output powers wireless presentation adapters without external supplies.

Powered zoom, focus, and vertical/horizontal lens shift accommodate ceiling and rear-projection scenarios without image distortion. Art-Net DMX, PJLink, and Crestron Connected protocols integrate with lighting consoles and enterprise control systems. The chassis uses approximately 10% recycled resin and reduced packaging to support organizational sustainability mandates without sacrificing thermal design or mounting versatility.

View full details

Specifications

Performance
Display Type
3LCD (3× 0.76" 16:10 panels)
Resolution
WUXGA (1920 × 1200)
Light Output
8,200 lm (ISO/IEC 21118) / 8,200 lm (ANSI) / 8,700 lm (Center)
Contrast Ratio
3,000,000:1 (Full On/Full Off, Dynamic mode)
Light Source
Laser diodes (SOLID SHINE)
Laser Life to 50%
20,000 hrs (Normal/Quiet) / 24,000 hrs (ECO)
Screen Size
40"–400" (16:10)
Throw Ratio
1.61–2.76:1 (supplied lens)
Center-to-Corner Ratio
85%
Installation
Lens Shift
V: ±67% / H: ±35% (powered)
Keystone Correction
V: ±25° / H: ±30°
Connectivity
HDMI IN
3× HDMI (HDCP 2.3, 4K/60p, CEC)
Computer IN
1× D-sub HD 15-pin
Monitor OUT
1× D-sub HD 15-pin
Serial IN
1× D-sub 9-pin (RS-232C)
Multi Sync OUT
1× D-sub 9-pin
Remote IN
1× M3 mini-jack (wired)
Audio IN/OUT
1× M3 mini-jack each
DIGITAL LINK/LAN
1× RJ-45 (HDBaseT, PJLink, Art-Net, 4K/60p)
LAN
1× RJ-45 (10/100Base-T, PJLink, Art-Net)
DC OUT
1× USB-A (5V, 2A)
Electrical
Max Power Consumption
465W / 475VA (AC 100–120V)
Normal Mode Power
415W (AC 100–120V) / 395W (AC 200–240V)
ECO Mode Power
295W (AC 100–120V) / 285W (AC 200–240V)
Environmental
Noise Level
34 dB (Normal/ECO) / 26 dB (Quiet)
Operating Temperature
32°–113°F (0°–45°C)
Operating Humidity
20–80% (no condensation)
Physical
Dimensions (W × H × D)
22-3/32" × 8-13/16" × 17-9/32" (561 × 224 × 439 mm)
Weight
41.0 lb / 18.6 kg (with supplied lens)
Software
Compatible Software
Logo Transfer, Multi Monitoring & Control, Projector Network Setup, Smart Projector Control (iOS/Android), Geometry Manager Pro
Package
Package Weight
49 lb
