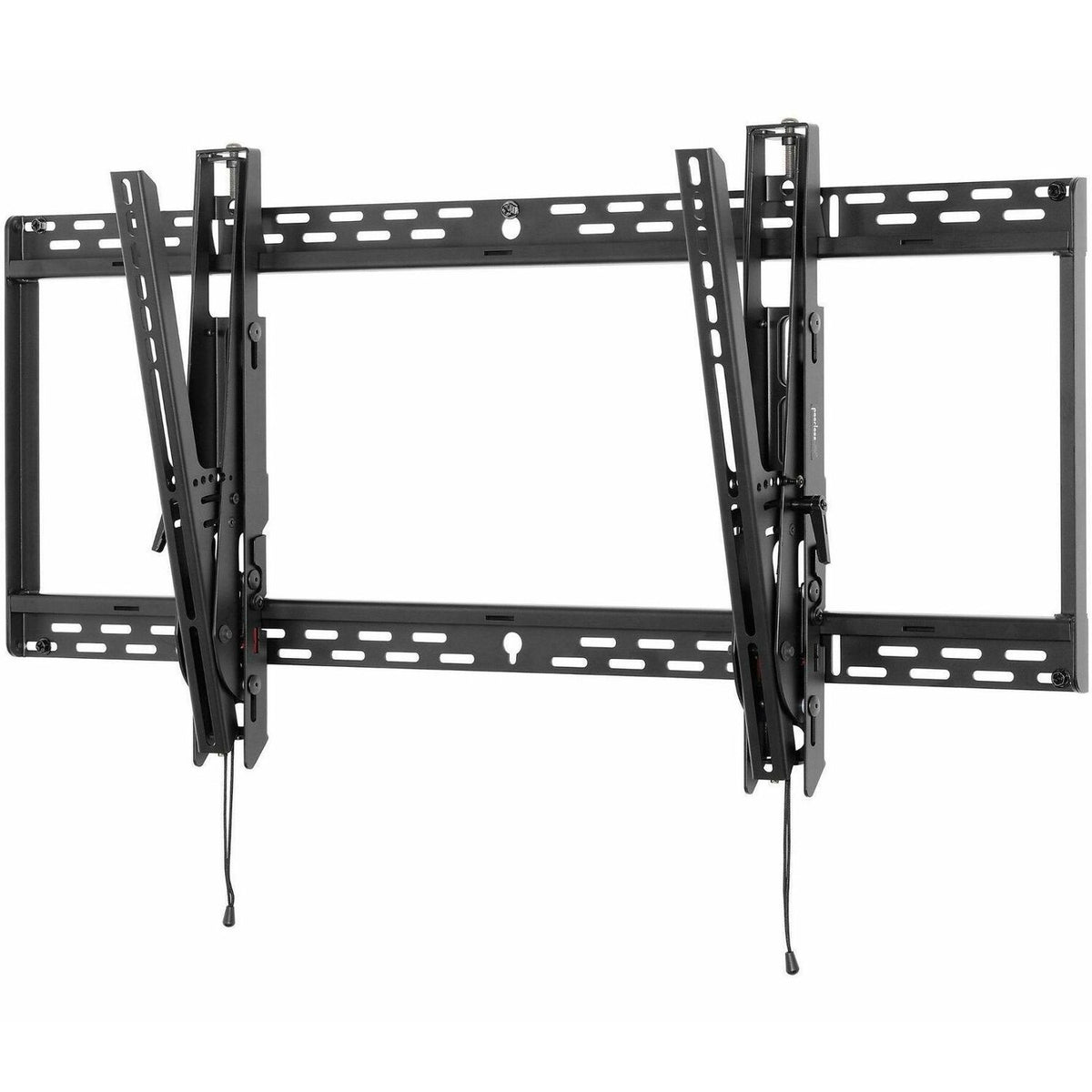

• ST670P universal tilt wall mount front view showing slotted wall plate, dual display adapter brackets and tilt release cords, Peerless-AV

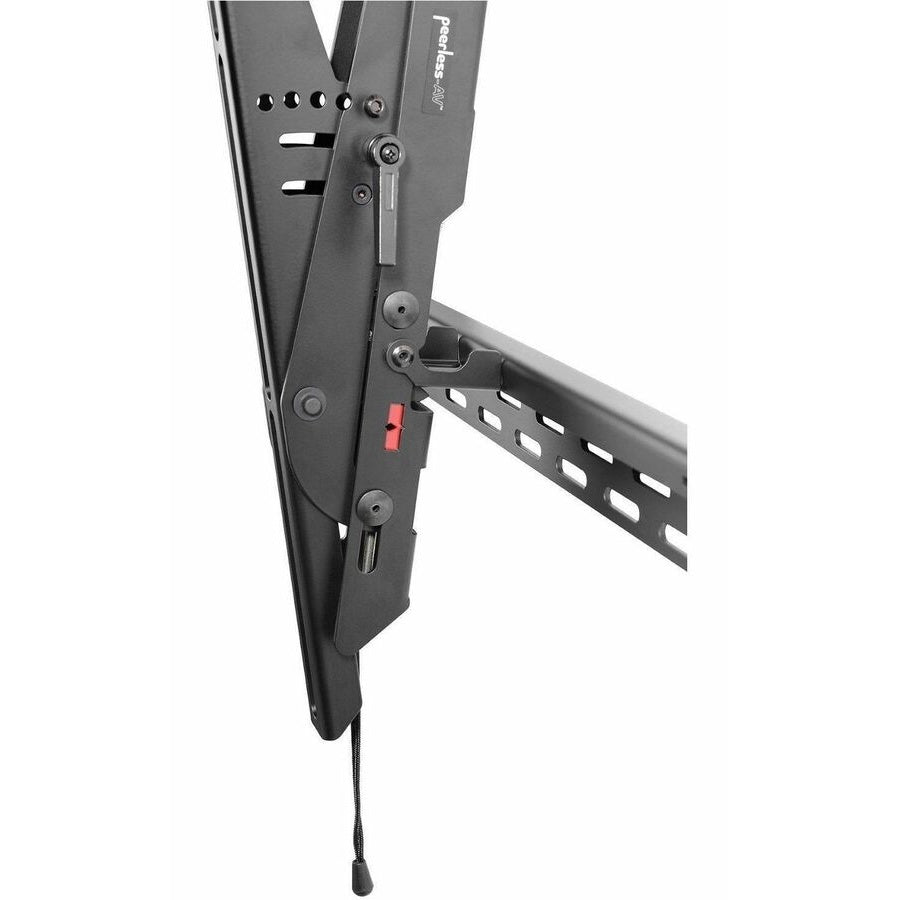

  • ST670P close-up detail of tilt mechanism with red security lock indicator, adapter bracket hooks and pull cord, Peerless-AV

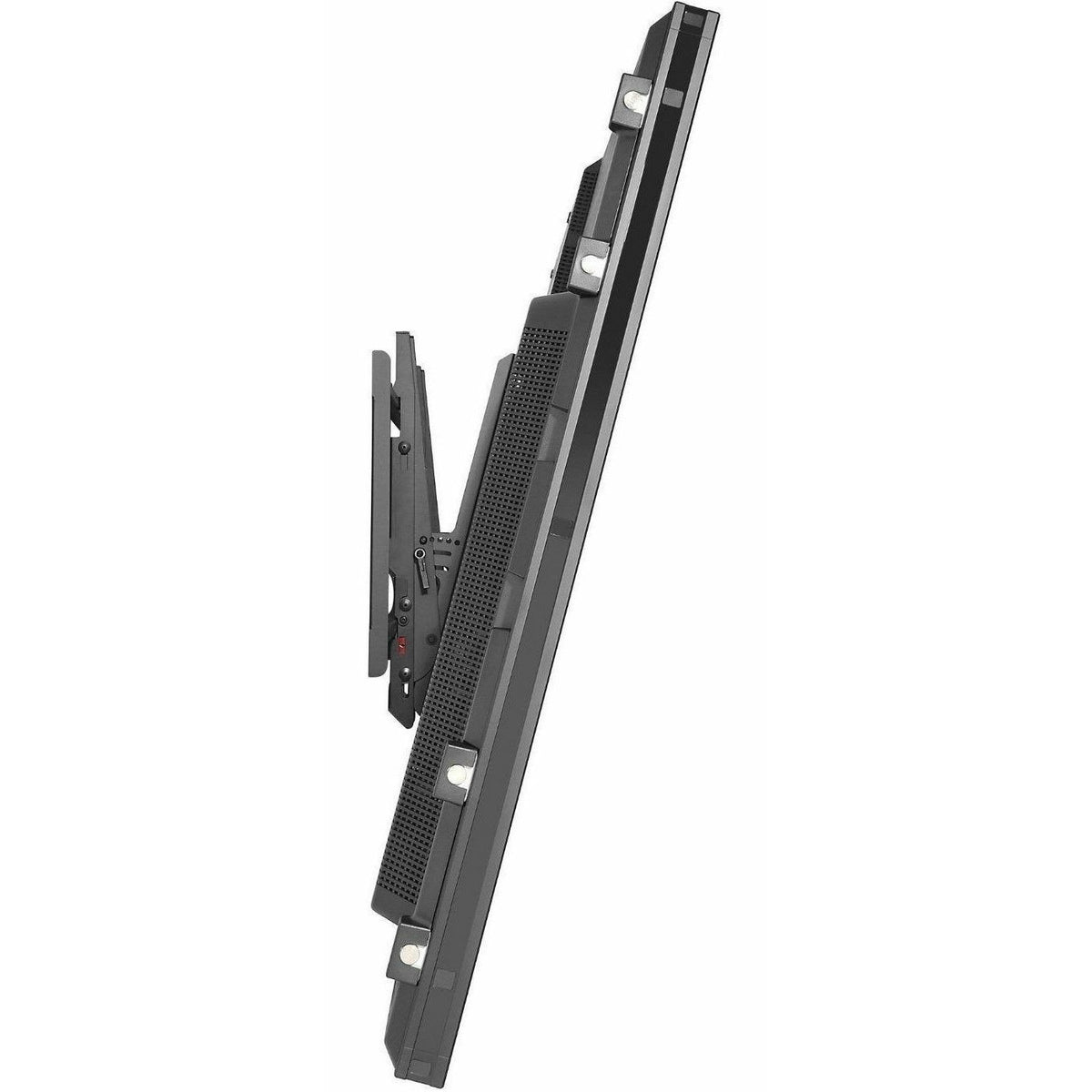

  • ST670P side profile with large flat panel display installed at maximum forward tilt angle, Peerless-AV
1 3

Peerless-AV ST670P Universal Tilt Wall Mount For 46" To 90" Displays

Peerless-AV ST670P Universal Tilt Wall Mount For 46" To 90" Displays

SoundPro Item: 212494 | Part Number: ST670P

$225.00
$355.00 $225.00
Your Price Sold out
MSRP: $355.00 | MAP: $225.00

Usually ships in 5-7 business days

  • Pre-Tensioned Display Adaptor Simplifies Final Tilt Adjustment After Hanging
  • Optional IncreLok Feature Sets Fixed Tilt Angles For Repeatable Results
  • Easy-Grip Ratcheting Handle Locks The Display Securely In Place
  • Easy Hang Wall Plate Lets A Bolt Be Pre-Installed To Ease Mounting
  • Junction Box Access Ports Simplify Cable And Power Routing Behind The Display
  • Lateral And Vertical Adjustment Fine-Tunes Placement After Installation
  • Included Fastener Pack Covers Wall And Display Attachment Hardware
Log in or register for YOUR best price

Built for integrators and AV teams mounting large format displays in conference rooms, classrooms, lobbies, and digital signage zones where a clean, fast install matters. The slim profile keeps the display close to the wall while leaving room to dial in the final viewing angle once the panel is hung.

Installers will appreciate how the hardware works with the job site. The wall plate supports quick hanging, cabling stays accessible at the junction box, and the display can be repositioned after mounting without pulling the bracket back off the wall. That cuts rework on multi-display rollouts and keeps punch lists short.

Compared with fixed mounts, a tilt design helps solve glare and sightline problems in elevated installs. Compared with generic universal brackets, this mount covers a wide range of screen sizes and common VESA patterns, with a TAA compliant, UL Listed build suited to government, education, and corporate projects. This version ships with standard hardware driven by a Philips screwdriver, so choose the ST670 instead when theft-resistant hardware is required.

Downloads

View full details

Specifications

Certifications
UL Listed
Yes
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Limited Warranty
Lifetime
Dimensions
Height
19.48"
Width
39.40"
Depth
6.63"
Minimum Adjustable Depth
3"
Maximum Adjustable Depth
6.63"
Post-Installation Vertical Adjustment
1"
Weight
Weight (Approximate)
16.13 lbs
Performance
Maximum Load Capacity
250 lbs
Minimum Screen Size Supported
46"
Maximum Screen Size Supported
90"
Minimum Tilt Angle
-5°
Maximum Tilt Angle
15°
Maximum Mounting Pattern
895 x 450mm (35.25" W x 17.72" H)
VESA Mount Compatible
Yes
Mounting Pattern
200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 800 x 400
Mount Function
Tilt, Wall Mount
Device Supported
Flat Panel Display
Construction
Product Color
Black
Color Family
Black
Finishing
Fused Epoxy, Powder Coated
Mount Profile
Slim Profile
Durability
Scratch Resistant, Tamper Resistant, Theft Resistant
Assembly Required
Yes
Included Items
Package Contents
Universal Tilt Wall Mount for 46" to 90" Displays, Wall and Display Installation Hardware, Installation Instructions
Environmental
Indoor/Outdoor
Indoor
Shipping
Package Weight
15.4 lbs
Package Width
9"
Package Length
47"
Package Height
4"
