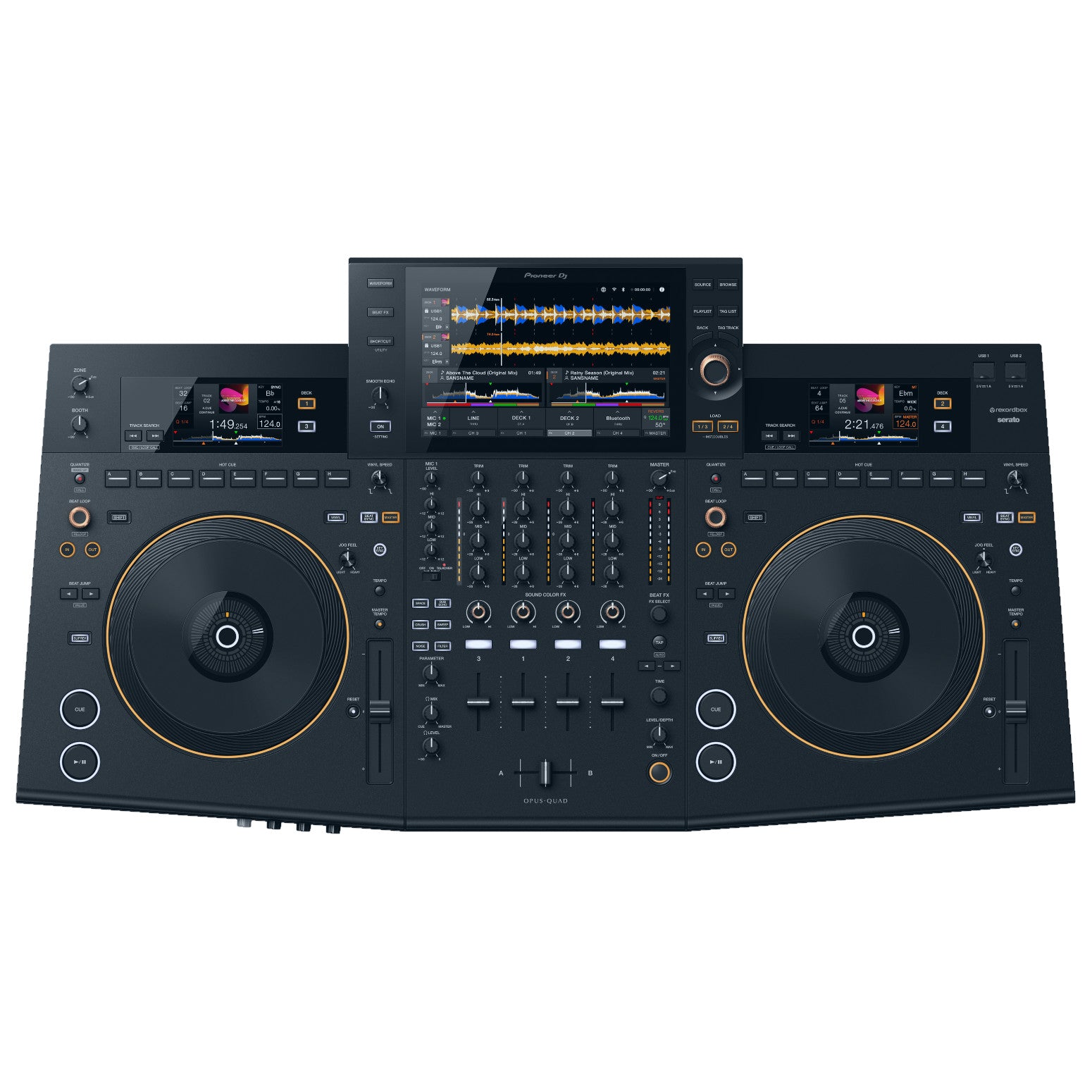

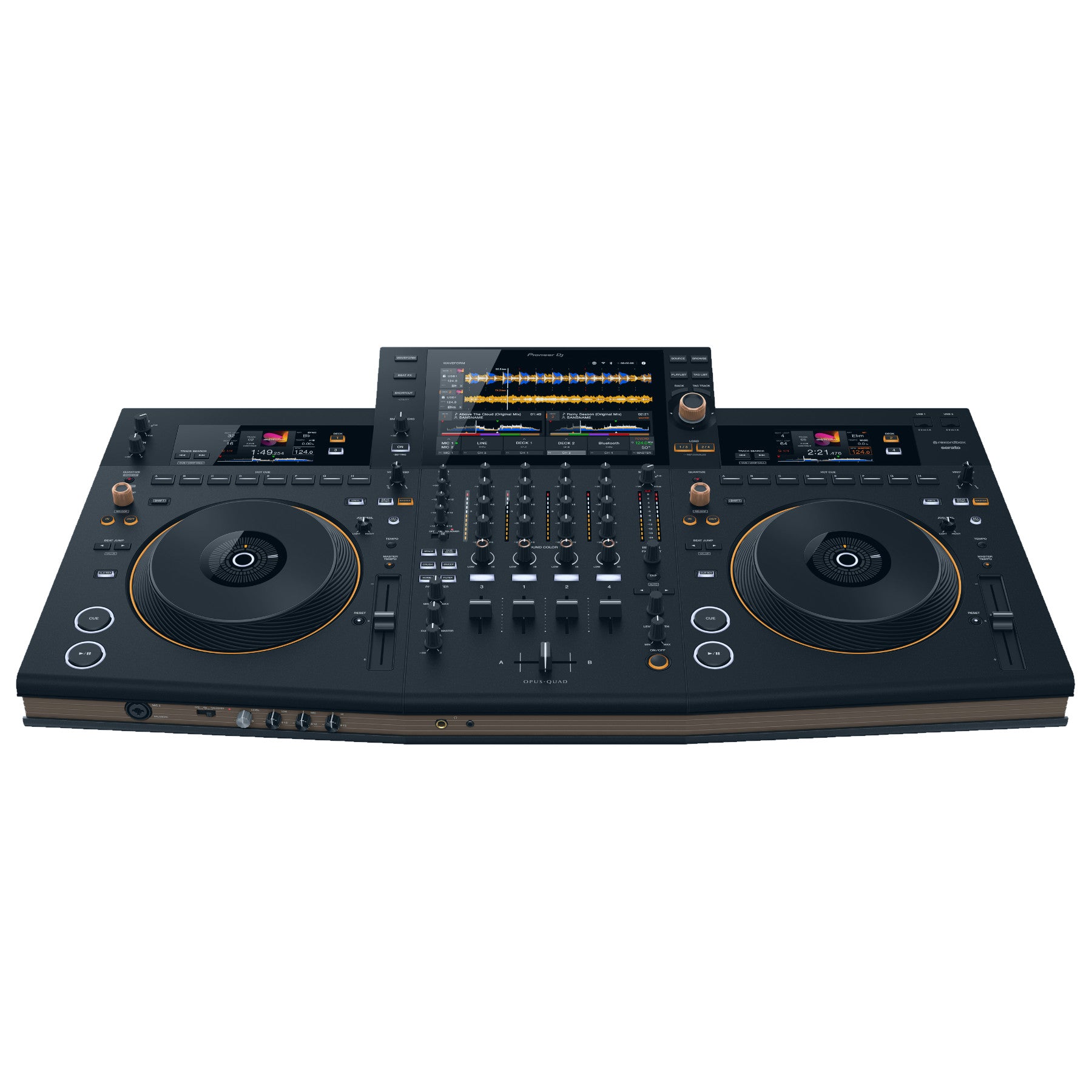

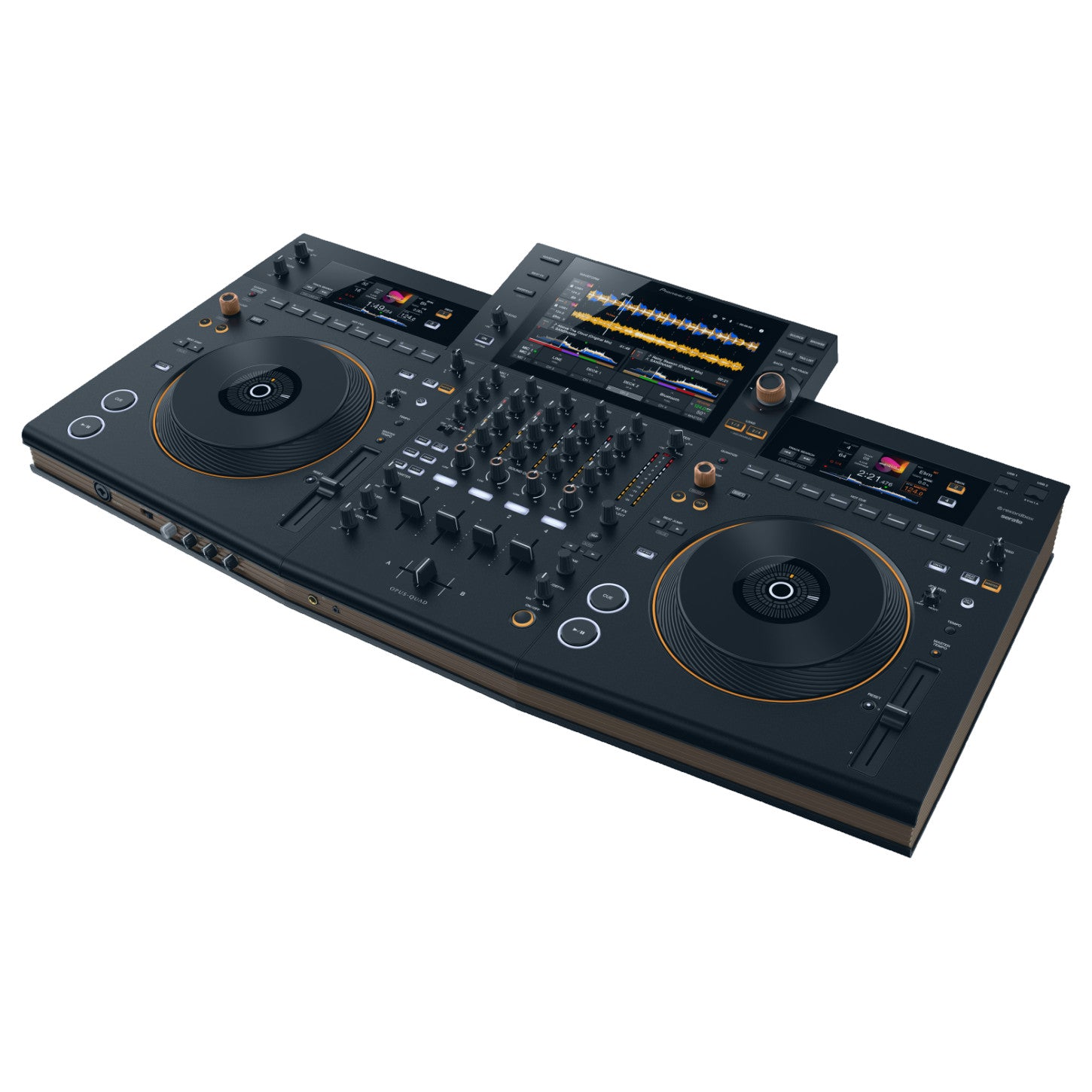

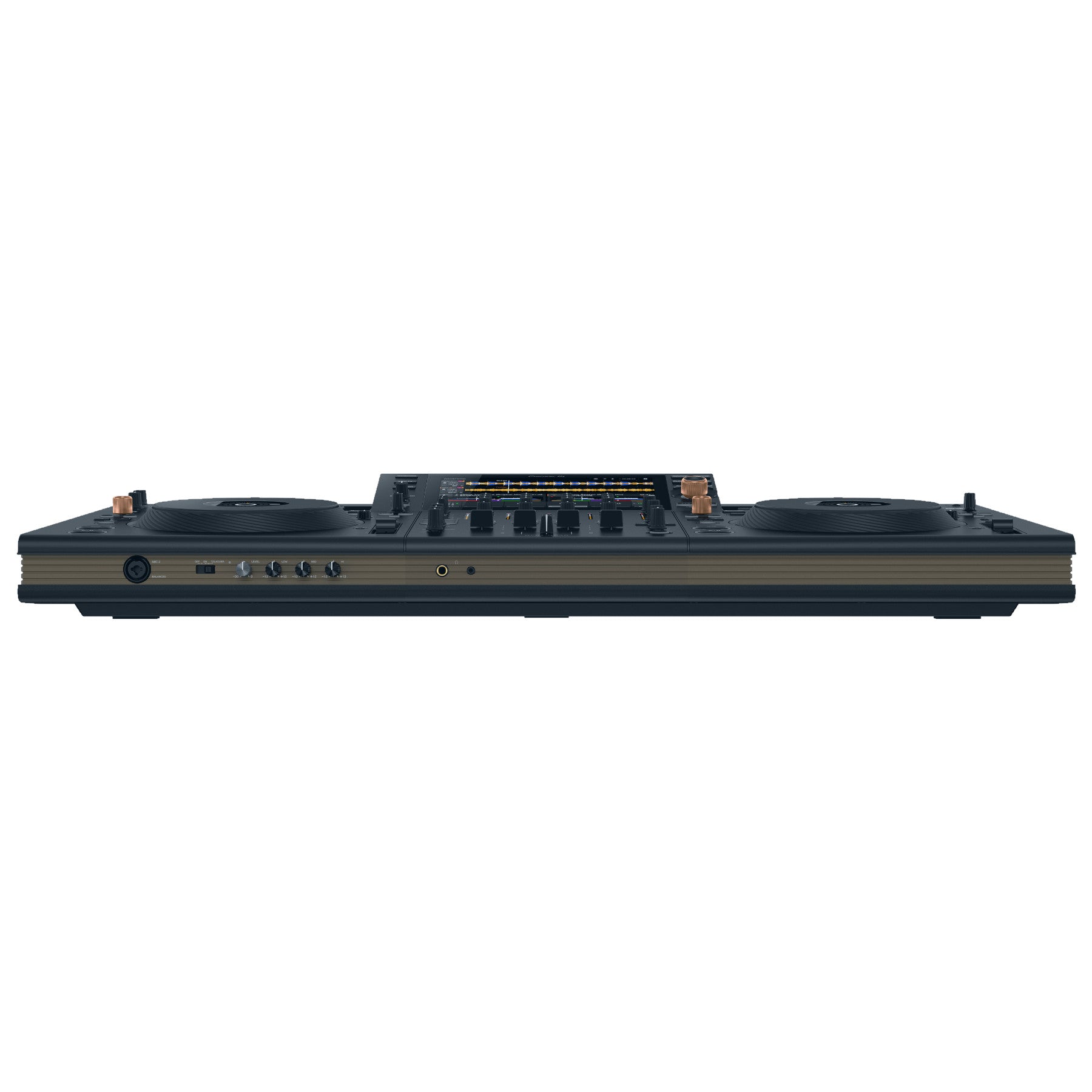

Pioneer DJ OPUS-QUAD Professional All-In-One DJ System
Pioneer DJ OPUS-QUAD Professional All-In-One DJ System
SoundPro Item: 138434 | Part Number: OPUS-QUAD
Usually ships in 5-7 business days
- Intuitive large touch display
- Rotary selector
- Zone output
- Fan-shaped, sloping top plate
- Supports media sources including USB-C and USB-A

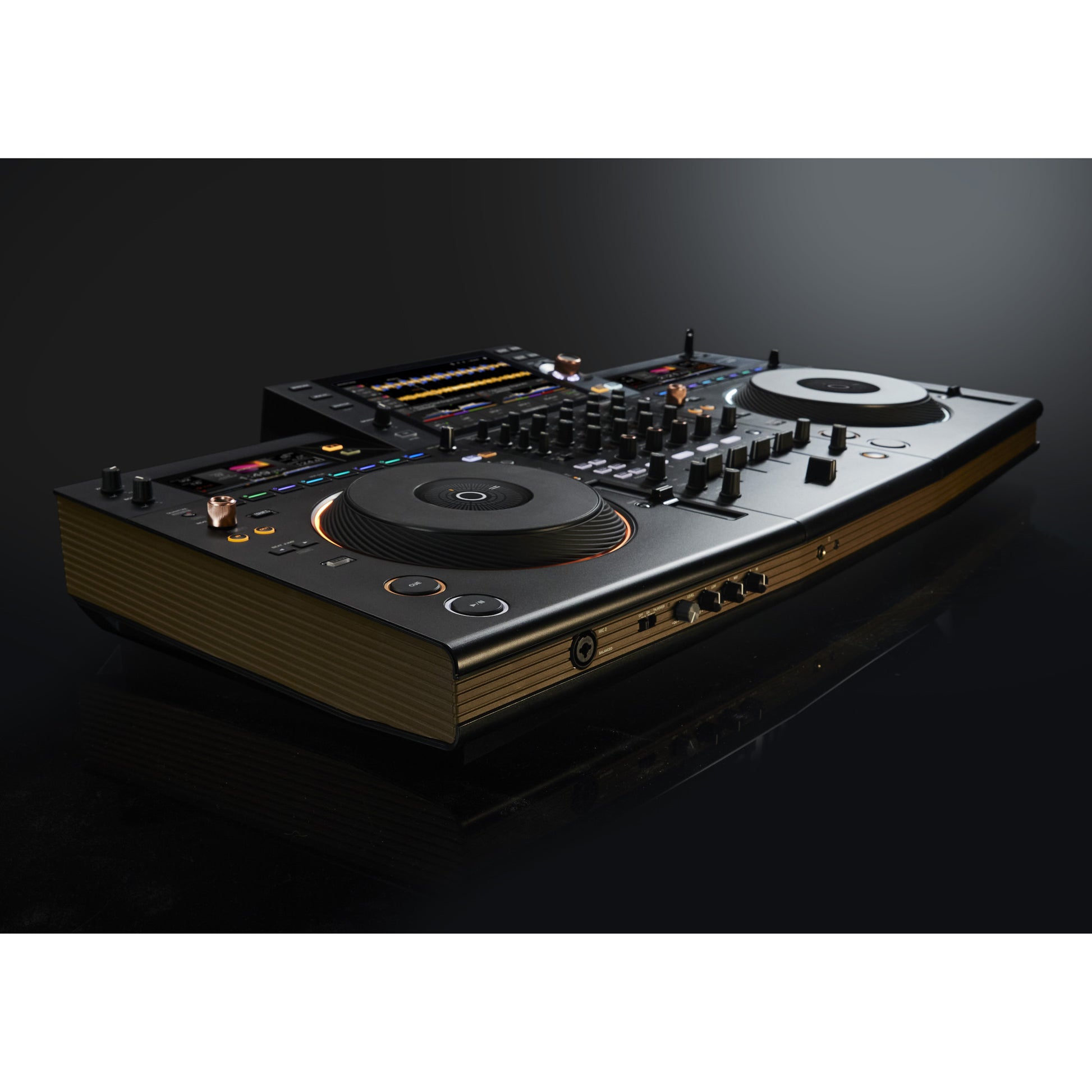

The OPUS-QUAD has a unique look. A unique fan shaped, sloping top plate not only looks sophisticated, but also enhances the operation and comfort during play. For the first time ever on a Pioneer DJ all-in-one DJ system, the OPUS-QUAD offers standalone 4-deck play back to enable versatile DJ performances. And with support for various media source types including USB-C and USB-A, the OPUS-QUAD provides DJs with flexibility.
With OPUS-QUAD, DJs can easily find tracks in the biggest music libraries via an intuitive large touch display and a new rotary selector. Once DJs create a set and begin performing, the OPUS-QUAD’s deck configuration makes performing comfortable and easy as DJ scan view track information for each deck with a single glance.
OPUS-QUAD produces high-quality audio at any venue. With zone output, you even have the option to output audio that’s separate from the master audio, giving you the option to play different music genres in different rooms of a venue from just one unit.
- Plays
- MP3
- AAC
- WAV
- AIFF
- Apple Lossless
- FLAC
- USB Storage Support
- FAT16
- FAT32
- exFAT
- HFS+
- (NTFS isn’t supported.)
- Compatible DJ Software
- rekordbox for Mac/Windows: Hardware Unlock
- rekordbox for iOS (Android coming soon)
- Serato DJ Pro: Hardware Unlock (coming summer 2023)
- MIDI Control Yes
- USB record Yes
- Plug and Play Yes
- Auto StandbyYes
- Sampling Rate 44.1 kHz
- Frequency Range 20 - 20000 Hz
- Width 36.44 in
- Height 5.59 in
- Depth 19.67 in
- Weight 29.1 lbs
- Power Supply AC 100-240V, 50 Hz / 60Hz
- Power Consumption 60W
- MASTER DA converter 32 bit
- A/D Converter 24 bit
- Signal-to-Noise Ratio
- USB: 114 dB
- LINE: 96 dB
- PHONO: 85 dB
- MIC: 79 dB
- Distortion
- USB: 0.003%
- LINE: 0.005%
- Performance Control
- Channels: 4
- Deck Control
- 4 (USB storage device)
- 4 (DJ Software control)
- Jog Wheel: 206 mm
- Jog Feeling: Yes
- Sound Color FX
- Space
- Dub Echo
- Sweep
- Noise
- Crush
- Filter
- Beat FX
- Delay
- Echo
- Ping Pong
- Spiral
- Reverb
- Trans
- Filter
- Flanger
- Phaser
- Pitch
- Slip Roll
- Roll
- Vinyl Brake
- Helix
- Hot Cues: 8 per deck
- Beat Loop: Yes
- Auto Beat Loop: Yes
- Beat Sync: Yes
- Quantize: Yes
- WaveZoom: Yes
- Manual Loop: Yes
- Trim knob: Yes
- EQ Isolator: Yes
- Mic
- Mic Connection: XLR connector & 1/4 inch TRS jack
- Mic EQ: 3 band
- Talkover: MIC OFF/ON/TALK OVER slide SW

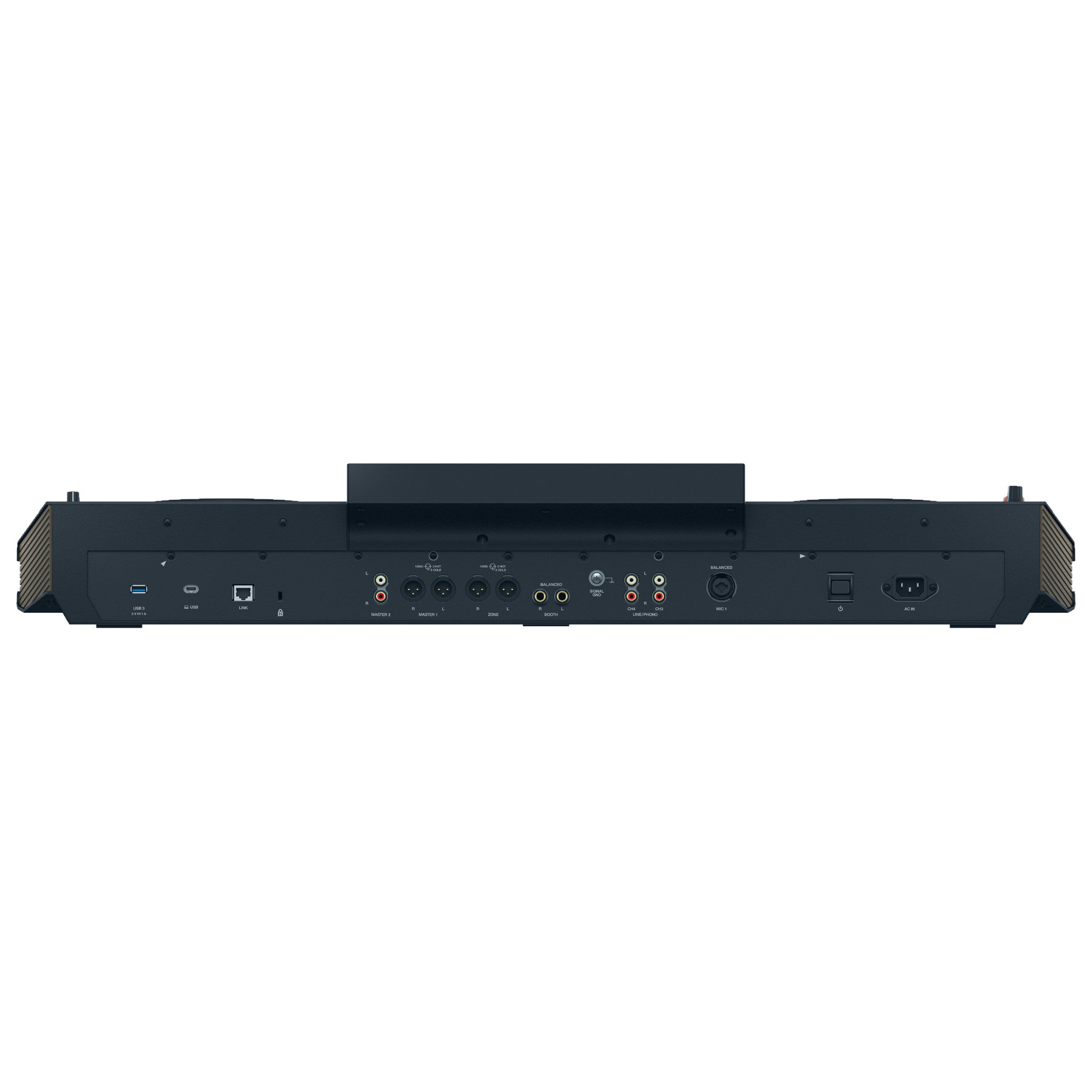

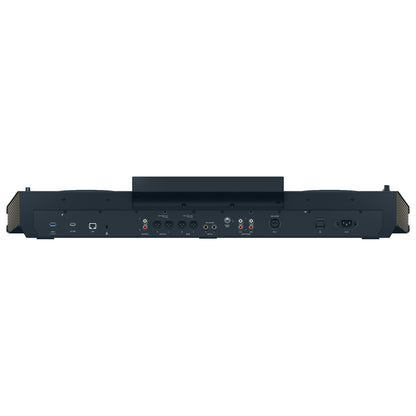

- Terminals
- Inputs
- 2 LINE (RCA)
- 2 PHONO (RCA)
- 2 MIC (XLR connector & 1/4 inch TRS jack)
- Outputs
- 1 MASTER (XLR)
- 1 MASTER (RCA)
- 1 ZONE (XLR)
- 1 BOOTH (1/4 inch TRS Jack)
- 1 PHONES (1/4 inch stereo phone Jack)
- 1 PHONES (3.5-mm stereo mini jack)
- USB
- 3 USB A ports
- 1 USB C port
- Inputs
- Wireless LAN
- Supported standards: IEEE 802.11 a / b / g / n / ac
- Frequency band used: 2.4 GHz / 5 GHz
- Bluetooth
- Wireless system: Bluetooth ver. 4.2
- Compatible codecs: SBC, AAC
