- Dimensions (WxHxD)453x159x353mm
- Weight 12.2 kg
- Turntable
- Drive Method: Servo-type direct drive
- Turntable: Aluminium, die-casting diameter: 332 mm
- Motor: 3-phase, brushless DC motor

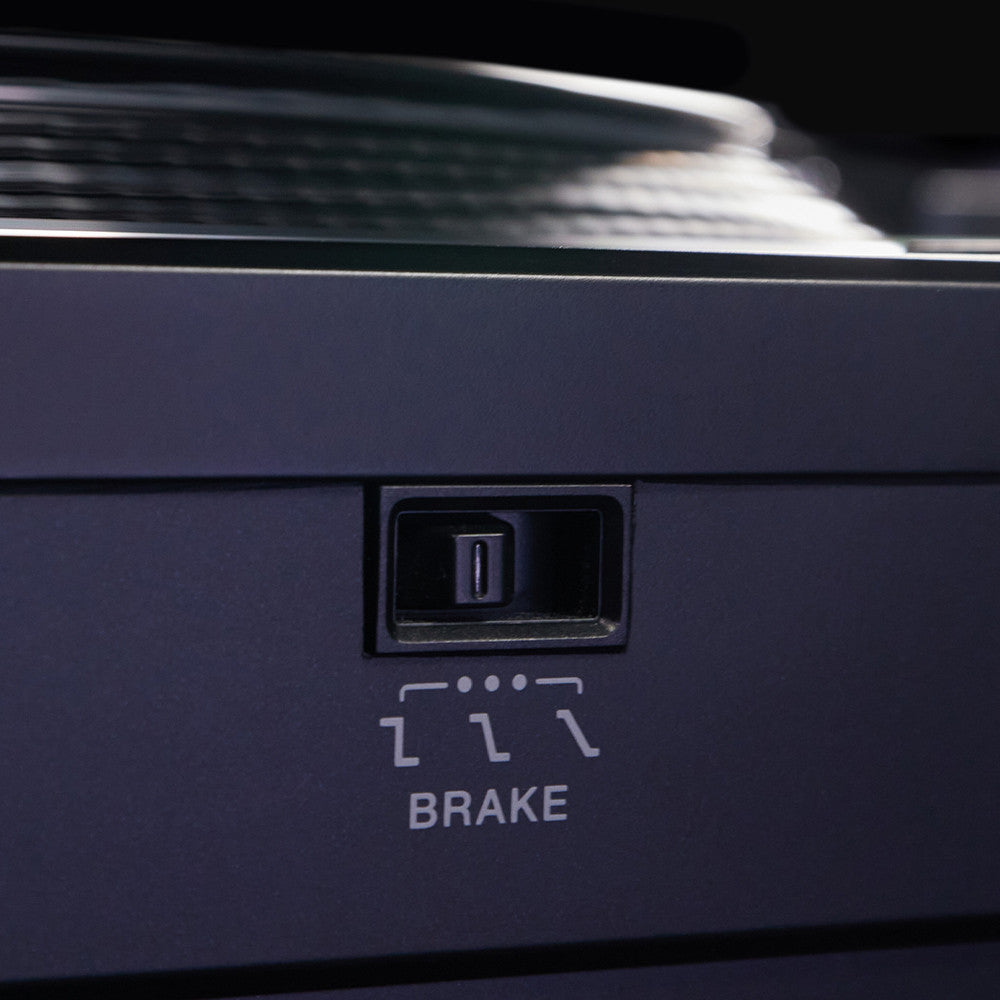

- Braking System: Electronic brake
- Rotation Speed: 331/3 rpm, 45 rpm
- Rotation Adjustment Range: ±8, ±16, ±50 %
- Wow and Flutter: 0.15% or less WRMS (JIS WTD)
- Signal-to-Noise Ratio: 65 dB (DIN-B)
- Starting Torque
- High: 0.45 N·m (4.5 kgf·cm) or more
- Mid: 0.32 N·m (3.2 kgf·cm)
- Low: 0.2 N·m (2.0 kgf·cm)
- Start Time: 0.3 sec (at 331/3 rpm)
- Brake Time
- Max: 3.5 seconds
- Mid: 1.0 seconds
- Min: 0.5 seconds or less
- Tone Arm
- Arm Type
- Universal type S-shape tone arm
- Gimbal-supported type bearing structure
- Static balance type
- Overhang: 15 mm
- Effective Length: 230 mm
- Tracking Error: Within 3°
- Height Adjustment Range: 6 mm
- Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
- Proper Cartridge Weight: 2.5-12 g (includes mounting materials)
- Arm Type

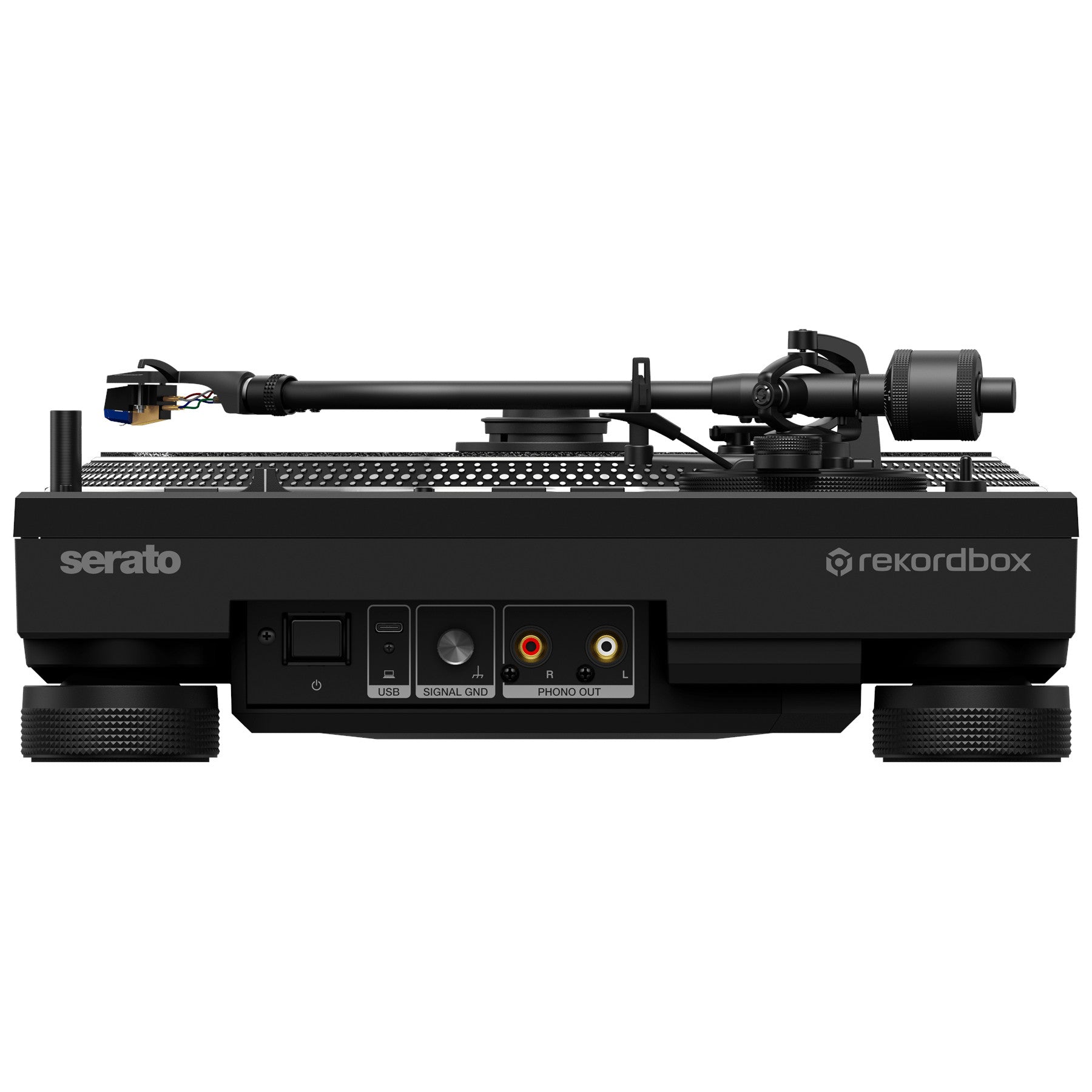

- Terminals
- USB: 1 USB C port
- Outputs: 1 PHONO(RCA)
