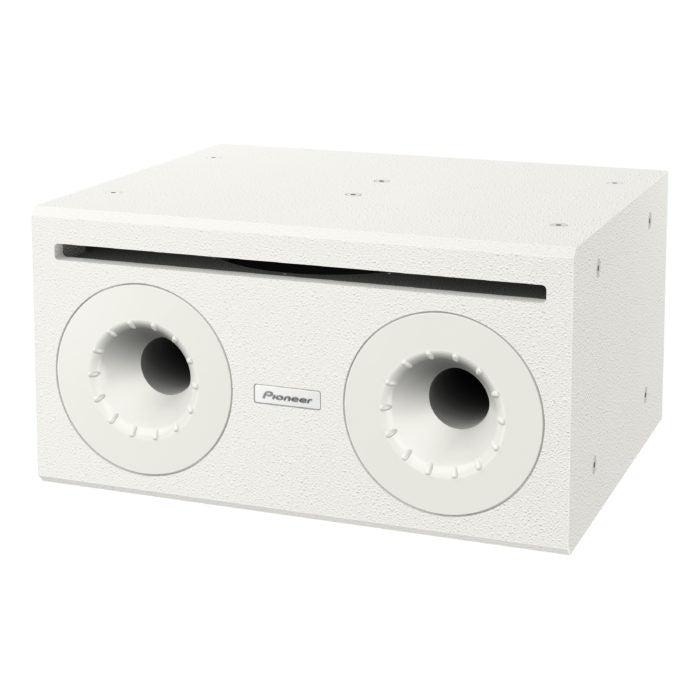

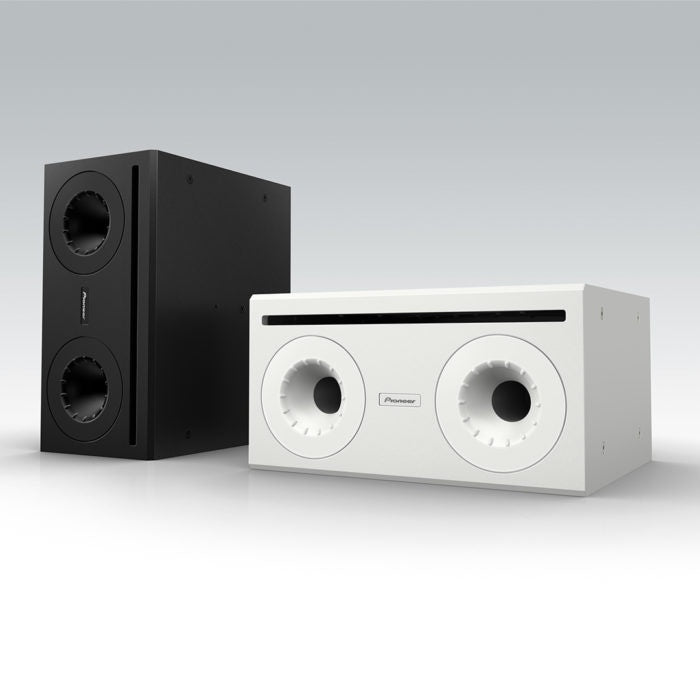

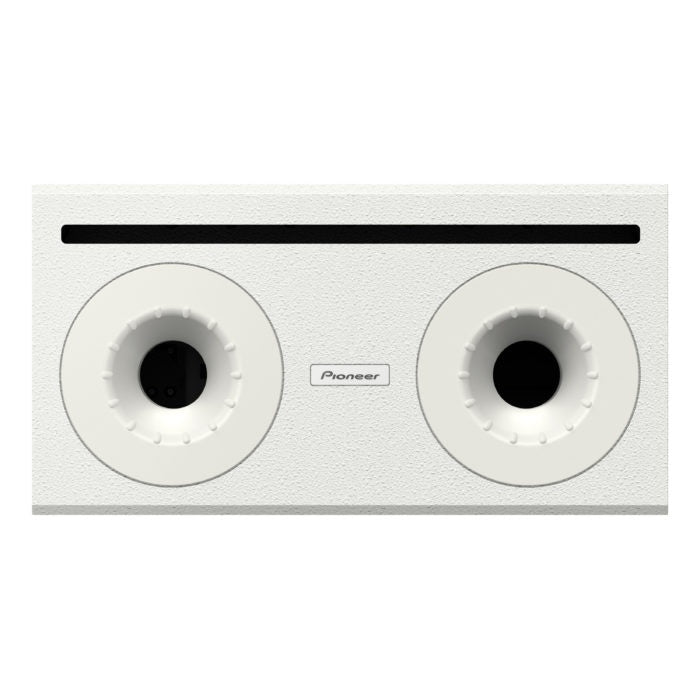

Pioneer CM-510ST-W Commercial Subwoofer 8 Ω | Color: White

Pioneer CM-510ST-W Commercial Subwoofer 8 Ω | Color: White

SoundPro Item: 203785 | Part Number: CM-510ST-W

$713.00
$0.00 $713.00
Your Price Sold out

Usually ships in 5-7 business days

  • Kelton design reduces mid and high bleed
  • Vortex Bass Accelerator aids fast LF response
  • 8 Ω load supports flexible amp channel use
  • M8 mounting points ease placement options
  • 70 V and 100 V taps fit distributed systems
Log in or register for YOUR best price

This fixed-installation subwoofer is built for commercial sound applications that need adaptable system configuration. Its 8 Ω design supports high- or low-impedance setups, while integrated transformer taps simplify use on 70 V and 100 V distributed lines.

The compact 50-litre cabinet is suited to discreet placement and includes M8 mounting points for wall, floor, or ceiling installation. Pioneer’s Kelton method and Vortex Bass Accelerator technology are designed to reduce unwanted mid and high frequencies while delivering fast, controlled low-frequency output.

View full details

Specifications

Hardware
Loudspeaker Type
Kelton method subwoofer
Rigging and Hardware
20 × M8 threaded mounting points on side
Enclosure
Black: Wood w/Polyuretane paint White: Wood w/water-based paint
System Data
Frequency response (- 10 dB, Typical)
45 Hz - 150 Hz
Sensitivity (1W/1m)
95 dB (half space)
Nominal Impedance
8 Ω
Loudspeaker Data
Power Handling (RMS/Program)
200 W / 400 W * IEC60268-5
Transformer taps
70 V: 200 W / 100 W / 50 W / 25 W 100 V: 200 W / 100 W / 50 W
Maximum SPL
124 dB (peak, half space) * Calculated from the power handling and sensitivity
Driver Configuration
10" (250 mm) cone

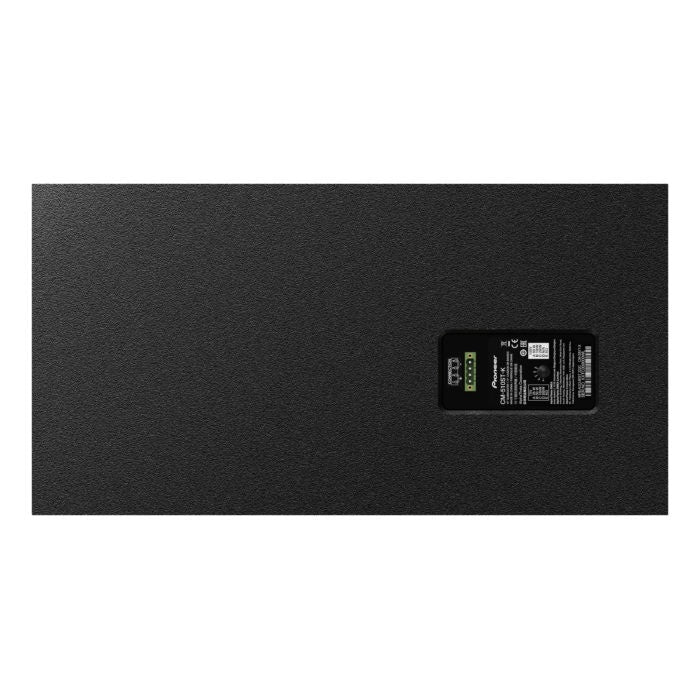

Connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Dimensions / Weight
Dimensions ( W x H x D)
260.0 x 500.0 x 400.0 mm (10.23" x 19.69" x 15.75")
Weight / piece
17.9 kg 39.5 lbs.
