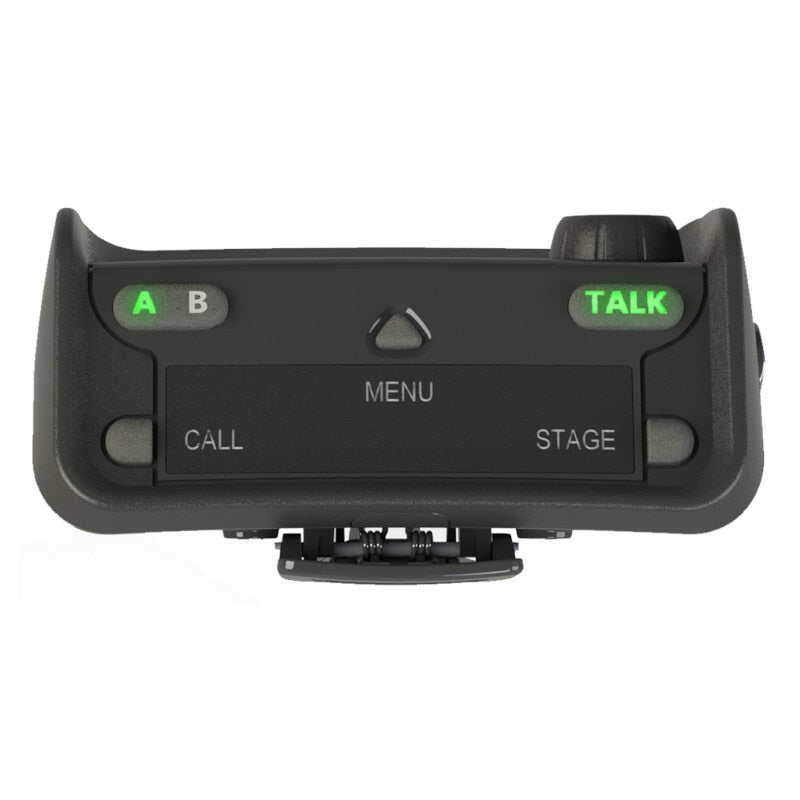

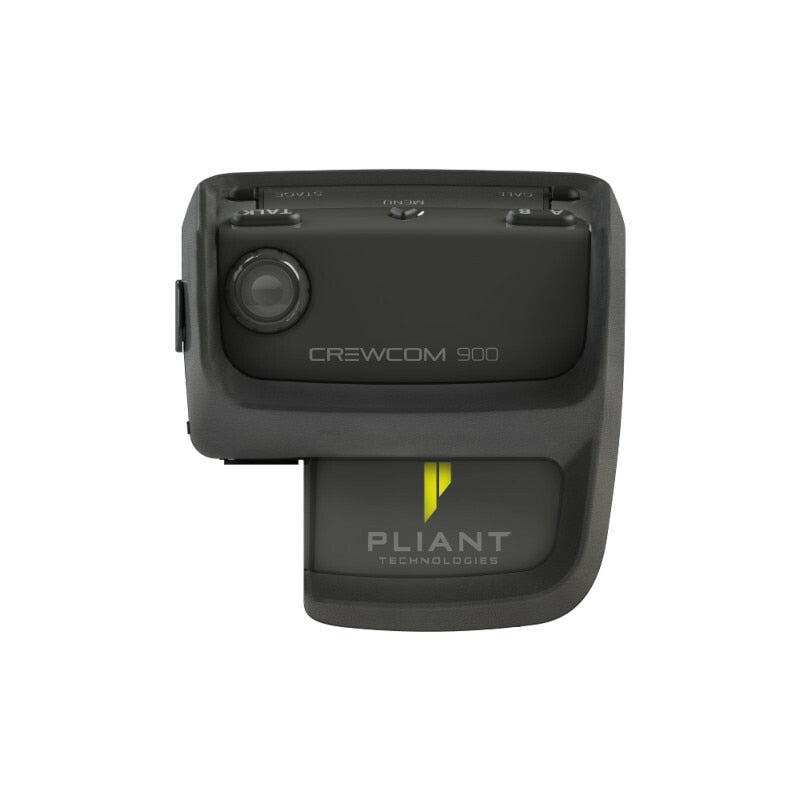

Pliant Technologies CRP-12-900 CrewCom 900MHz Radio Pack
Pliant Technologies CRP-12-900 CrewCom 900MHz Radio Pack
SoundPro Item: 110759 | Part Number: CRP-12-900
Usually ships in 5-7 business days
- Compact size
- Light weight (13 oz./ 369 g)
- 7 kHz audio for excellent voice quality
- Familiar volume/talk user interface
- Preprogrammed Function Buttons (x2)
- USB connection for pairing, firmware updates and battery charging
- Dual battery (Li-Poly or AA) operation
- Greater than 9 hours continuous operation (Li-Poly)
- Easy-to-use spring-loaded belt clip
The CRP-12-900 wireless beltpack employs a frequency range of 150 Hz to 7 kHz to deliver high-quality speech transmission.
Designed to work specifically with CrewCom's CB2-900 BaseStation, its full duplex operation (transmission in two directions simultaneously) allows you to carry on conversations as you would in-person. Plus, it allows users to independently listen and talk on two conferences.
The CRP-12-900 operates in the 900MHz range which works well in non-line-of-site situations. The radio pack's lightweight design, advanced RF technology, and backlit LED channel indicator make the CRP-12-900 an extremely user-friendly option.
Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22 CU.
- RF Frequency902–928 MHz (915–928 MHz)**
- RF Scheme FHSS with TDMA
- Effective Radiated Power 400 mW (+26 dBm)
- Radio Certification FCCID: HSW-CCT900 and IC: 4492A-CCT900
- Transmission Range200 m (approx. 650 ft.) under typical conditions; 600 m (approx. 1950 ft.) line of sight. Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
- Hardwired Intercom Audio Channels 2
- No. of Active Radio Packs Supported 6
- No. of Paired Radio Packs Supported (per CB2) 6
- USB Ports (1) USB Type A; (1) Micro USB
- Front Panel LCD Display 512 × 128 resolution
- Stage Announce and Relay 1 Relay via Phoenix Conn
- Sync Port (supports one connection) (1) RJ-45 for copper
- 2-Wire Intercom Connection 2 Channels via XLR 3F with XLR 3M loop (2 ports)
- 2-Wire Compatibility Clear-Com, RTS, and AudioCom (Balanced)
- 4-Wire Intercom Connection 2 Channels via RJ-45
- Stage Announce Output XLR 3M, balanced, transformer isolated
- Aux In 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in (nominal line level +5 dBu), balanced, transformer isolated
- Aux Out 6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms (nominal line level +5 dBu), balanced, transformer isolated
- Power Input/Connector 2.5 × 5.5 × 8 mm, 14 VDC, 1.2 A
- Dimensions (L×W×H) 1 RU, 48.26×4.39×29.67 cm (19×1.73×11.68 in.) metal enclosure
- Weight 2.7 kg (5.9 lb)
- Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
- Maximum Sync Line Length CAT 5e (or greater) 100 m (330 ft.)
- Maximum Altitude 2,000 m (6,562 ft.)
- RoHS Compliant Yes
- Compliance Model Number B22545
- Number of Antenna Connections per CB2 1
- Antenna Connector Type RP-TNC
- Supplied Antenna +2 dBi Omni-directional (whip)
