• Pliant Technologies CCU-22 CrewCom 2+2 Control Unit
1 1

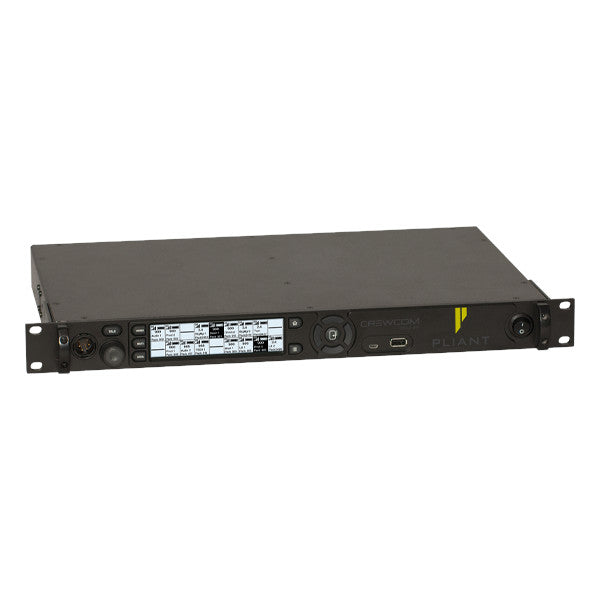

Pliant Technologies CCU-22 CrewCom 2+2 Control Unit

Pliant Technologies CCU-22 CrewCom 2+2 Control Unit

SoundPro Item: 46787 | Part Number: CCU-22

$8,875.00
$8,875.00 $8,875.00
Your Price Sold out
MSRP: $8,875.00 | MAP: $8,875.00

Usually ships in 5-7 business days

  • Each CU supports up to 18 RPs
  • Easy-to-use interface with large informative backlit LCD display and quick access controls
  • Simultaneously active 2-Wire and 4-Wire intercom connections
  • Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates, and computer connectivity
  • Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
  • LAN port for CrewWare connectivity via computer network
  • Front panel headset monitor station
  • Stage announce audio output
  • AUX In/Out for program input and intercom audio output
  • GPO contact closure relays (x5)
  • Sync input to receive sync from another CrewCom system
  • 1RU rack mountable
  • Integrated Ping function, which uses all LEDs to physically identify a target device
Log in or register for YOUR best price

The CCU-22 CrewCom 2+2 Control Unit from Pliant Technologies establishes the CrewNet-based infrastructure while also providing external connections to common established intercom systems. By design, the CU contains no radio and is frequency agnostic and can therefore control and monitor any device across CrewNet regardless of radio frequency bands being utilized. With the combination of CrewCom Radio Transceivers, each CU supports up to 50 Radio Packs, 18 Normal mode and 32 High Density mode, across all available RF bands.

View full details

Specifications

Certifications
RoHS Compliant
Yes
Compliance Model Number
CU2510
Dimensions
Dimensions (LxWxH)
1 RU, 48.26×4.39× 29.67 cm (19×1.73×11.68 in.) metal enclosure
Maximum CrewNet Line Length
Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)
Audio
Hardwired Intercom Audio Channels
4
Connectivity
USB Ports
(1) USB Type A; (1) Micro USB
CrewNet Ports (supports 2 connections)
(2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
Sync in Ports (supports 1 connection)
(1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
Stage Announce Output XLR
3M, balanced, transformer isolated
LAN Port
(1) RJ-45, 10/100 BASE-T 802.3 compliant
Power Input/Connector
100–240V ~ 50-60 Hz, 0.8A
Controls
Front Panel LCD Display
512 × 128 resolution
Compatibility
2-Wire Compatibility
Clear-Com, RTS, and AudioCom (Balanced)
Shipping
Weight
2.7 kg (5.9 lbs) 2.9 kg (6.5 lbs)
General
Active Radio Packs
18 (18 active Radio Packs requires use of 3 RTs.)
No. of Paired Radio Packs Supported (per CU)
255
Stage Announce and GPO Closures
5 Relays via DA-15
2-Wire Intercom Connection
2 channels via XLR 3F with XLR 3M loop (2 ports)
4-Wire Intercom Connection
2 ports via RJ-45 4 ports via RJ-45
AUX IN
6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in (nominal line level +5 dBu), balanced, transformer isolated
AUX OUT
6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms (nominal line level +5 dBu), balanced, transformer isolated
Operating Environment
-20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
Maximum Altitude
2,000 m (6,562 ft.)
