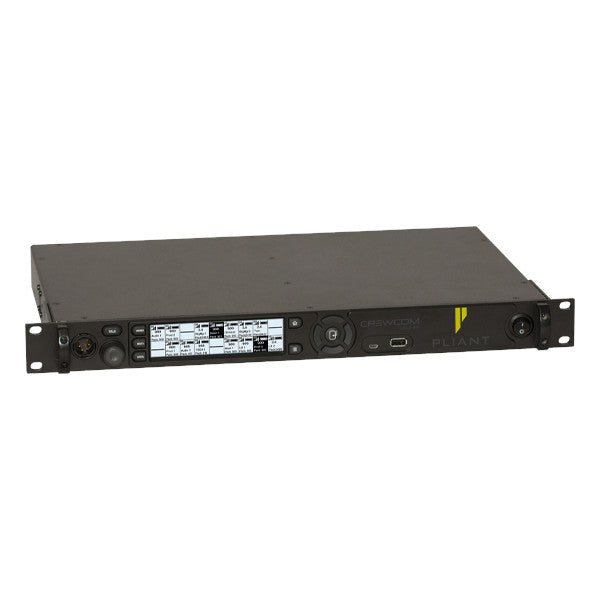

Pliant Technologies CCU-44 CrewCom 4+4 Control Unit
Pliant Technologies CCU-44 CrewCom 4+4 Control Unit
SoundPro Item: 87731 | Part Number: CCU-44
Usually ships in 5-7 business days
- Each CU supports up to 18 RPs
- Easy-to-use interface with large informative backlit LCD display and quick access controls
- Simultaneously active 2-Wire and 4-Wire intercom connections
- Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates, and computer connectivity
- Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
- LAN port for CrewWare connectivity via computer network
- Front panel headset monitor station
- Stage announce audio output
- AUX In/Out for program input and intercom audio output
- GPO contact closure relays (x5)
- Sync input to receive sync from another CrewCom system
- 1RU rack mountable
- Integrated Ping function, which uses all LEDs to physically identify a target device
The Pliant Technologies CCU-44 CrewCom 4+4 Control Unit establishes the CrewNet-based infrastructure while also providing external connections to common established intercom systems. By design, the CU contains no radio and is frequency agnostic; therefore, any device can be controlled and monitored across CrewNet regardless of radio frequency bands being utilized.
The CrewCom Control Unit is the foundational element of the CrewCom system and establishes the CrewNet-based infrastructure while also providing external connections to common established intercom systems. By design, the CU contains no radio and is frequency agnostic and can therefore control and monitor any device across CrewNet regardless of radio frequency bands being utilized. With the combination of CrewCom Radio Transceivers, each CU supports up to 50 Radio Packs, 18 Normal mode and 32 High Density mode, across all available RF bands.
- Hardwired Intercom Audio Channels8
- Active Radio Packs 18 (18 active Radio Packs requires use of 3 RTs.)
- No. of Paired Radio Packs Supported (per CU) 255
- USB Ports (1) USB Type A; (1) Micro USB
- Front Panel LCD Display 512 × 128 resolution
- Stage Announce and GPO Closures 5 Relays via DA-15
- CrewNet Ports (supports 2 connections) (2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
- Sync In Ports (supports 1 connection) (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
- 2-Wire Intercom Connection 4 channels via XLR 3F with XLR 3M loop (4 ports)
- 2-Wire Compatibility Clear-Com, RTS, and AudioCom (Balanced)
- 4-Wire Intercom Connection 4 ports via RJ-45
- Stage Announce Output XLR 3M, balanced, transformer isolated
- AUX IN 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in (nominal line level +5 dBu), balanced, transformer isolated
- AUX OUT 6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms (nominal line level +5 dBu), balanced, transformer isolated
- LAN Port
- (1) RJ-45
- 10/100 BASE-T 802.3 compliant
- Power Input/Connector 100–240V ~ 50-60 Hz, 0.8A
- Dimensions (LxWxH) 1 RU, 48.26×4.39×29.67 cm (19×1.73×11.68 in.) metal enclosure
- Weight 2.7 kg (5.9 lbs) 2.9 kg (6.5 lbs)
- Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
- Maximum CrewNet Line Length Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)
- Maximum Altitude 2,000 m (6,562 ft.)
- RoHS Compliant Yes
- Compliance Model Number CU2510
