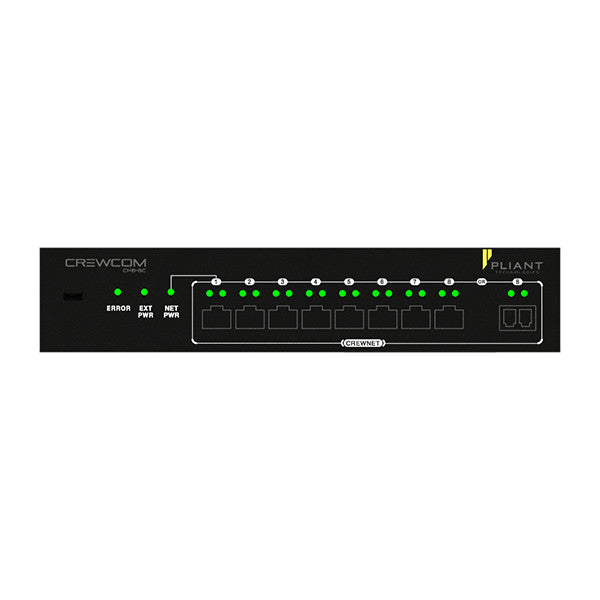

• Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub

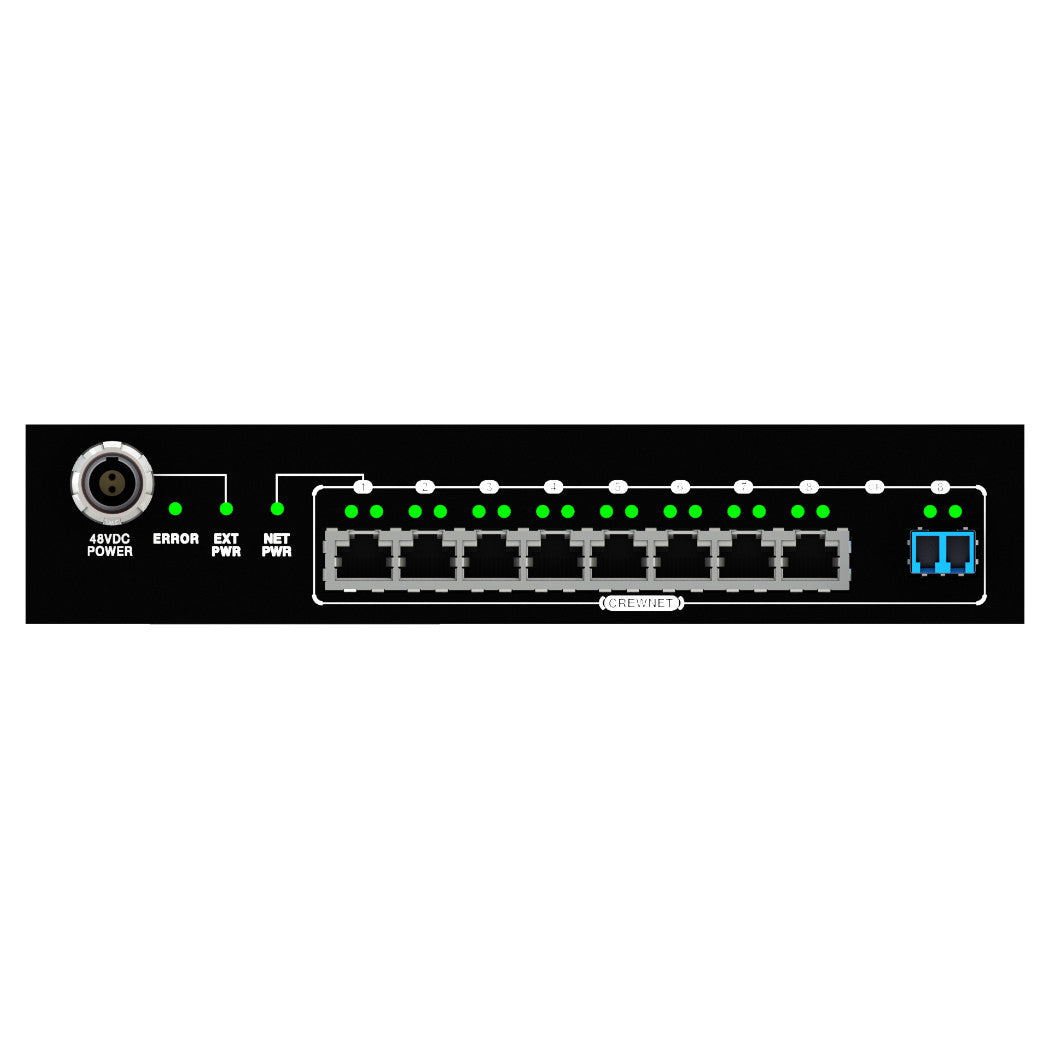

  • Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub back
1 2

Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub

Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub

SoundPro Item: 87732 | Part Number: CHB-8C-02

$2,825.00
$2,825.00 $2,825.00
Your Price Sold out
MSRP: $2,825.00 | MAP: $2,825.00

Usually ships in 5-7 business days

  • Eight copper CrewNet ports with one shared port that is either duplex LC Single Mode Fiber or copper
  • Supplies distributed network power over CrewNet to up to 7 supported ports (copper only)
  • Front and rear panel LED status indications
  • Micro USB connection for firmware updates (firmware updates also available through CrewNet)
  • Dual powering options with either network power or supplied external power supply (48VDC included with Hub)
  • Fits a standard 1RU rack in a half-rack configuration (optional rack kit sold separately)
Log in or register for YOUR best price

The CrewCom Hub is an eight port, 1RU, half-rack Copper Hub that provides routing and expansion capabilities to a CrewNet infrastructure via eight RJ-45 and a single duplex LC Fiber port. Power is received over a CrewNet copper connection or via a 48VDC power supply.

View full details

Specifications

Certifications
RoHS
Yes
Compliance Model Number
HB2520
Dimensions
Maximum CrewNet Line Length
Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)
Dimensions (LxWxH)
21.9×4.4×22 cm (8.62×1.73×8.68 in.)
Connectivity
CrewNet Ports (8 Total connections)
(7) RJ-45 for copper; (1) RJ-45 for copper or duplex LC for Single Mode Fiber
Power-over-CrewNet (PoC) in Port
1 (RJ-45)
Power-over-CrewNet (PoC) Out Sourced by PoC: Ports
2–8
Sourced by External Power: Ports
2–8
Shipping
Weight
794 g (1.75 lbs)
General
External Power in
48VDC Power Supply
Operating Environment
-20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
Maximum Altitude
2,000 m (6,562 ft.)
