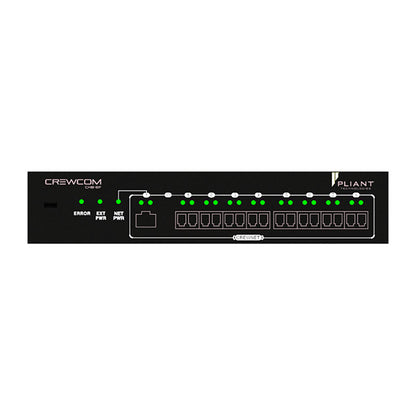

Pliant Technologies CHB-8F CrewCom 8-Port Fiber Hub
Pliant Technologies CHB-8F CrewCom 8-Port Fiber Hub
SoundPro Item: 87733 | Part Number: CHB-8F
Usually ships in 5-7 business days
- Eight CrewNet ports – First port is shared, either duplex LC Single Mode Fiber or copper
- Supplies line power over CrewNet to supported devices

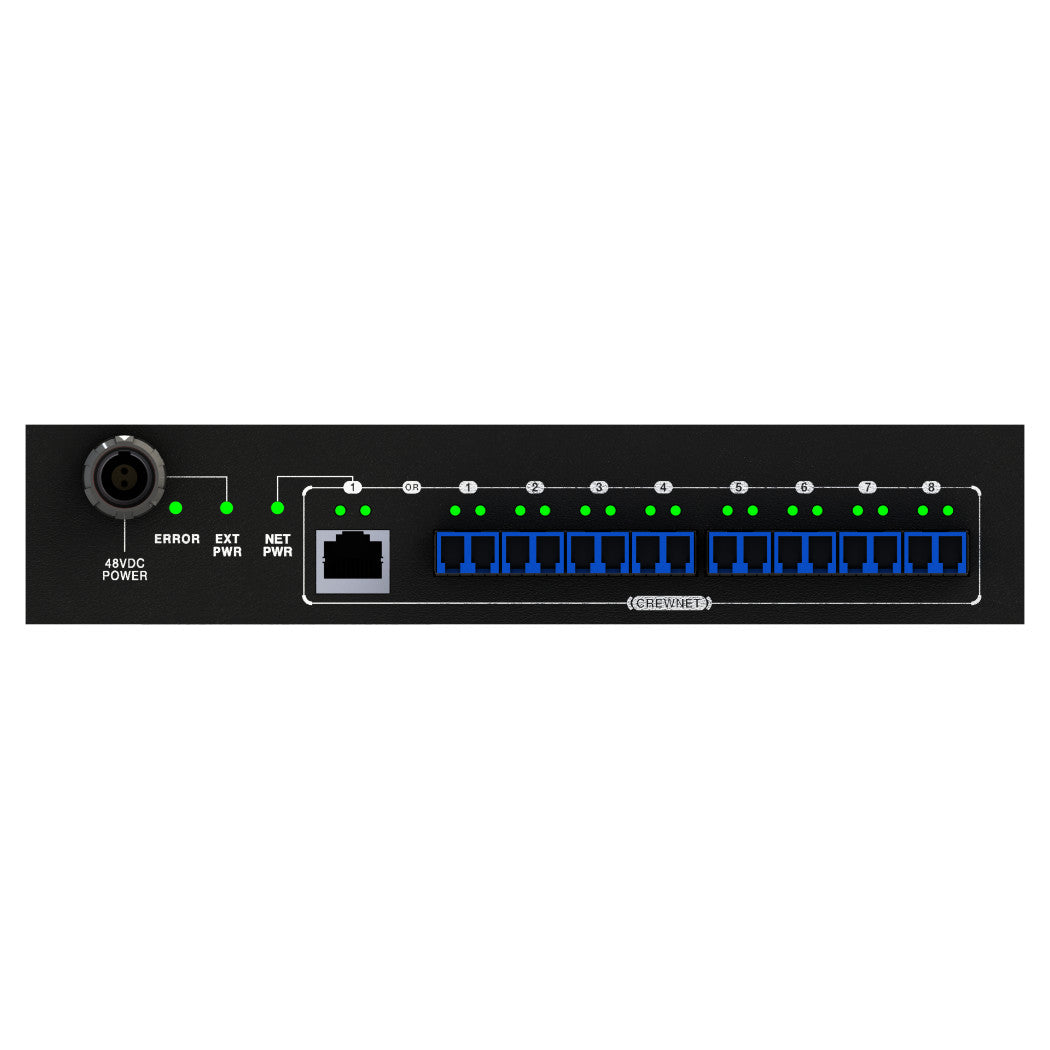

- Front and rear panel status indicators
- Micro USB connection for firmware updates
- Dual powering options
- Network power (Power over CrewNet)
- External power (48VDC) (sold separately)
- Standard 1RU half-rack size, forward or rear-facing orientation (rack kit sold separately)
- Integrated Ping function, which uses all LEDs to physically identify a target device
The CrewCom Fiber Hub is an eight port, 1RU, half-rack Fiber Hub that provides routing and expansion capabilities to a CrewNet infrastructure via eight duplex LC Fiber ports and a single RJ-45 port. Power is received over a CrewNet fiber connection or via a 48VDC power supply. NOTE: This device uses a new power connector/supply (PPS-48V-02, supplied) which is NOT compatible with the CHB-8C.
- CrewNet Ports (8 total connections)(7) duplex LC for Single Mode Fiber; (1) duplex LC for Single Mode Fiber or RJ-45 for copper
- Maximum CrewNet Line Length Fiber 10,000 m (32,800 ft.); Copper 100 m (330 ft.)
- External Power In 48VDC Power Supply
- Power-over-CrewNet (PoC) In Port 1 (RJ-45)
- Dimensions (LxWxH) 21.9×4.4×22 cm (8.62×1.73×8.68 in.)
- Weight 794 g (1.75 lbs)
- Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
- Maximum Altitude 2,000 m (6,562 ft.)
- RoHS Yes
- Compliance Model Number HB2521
