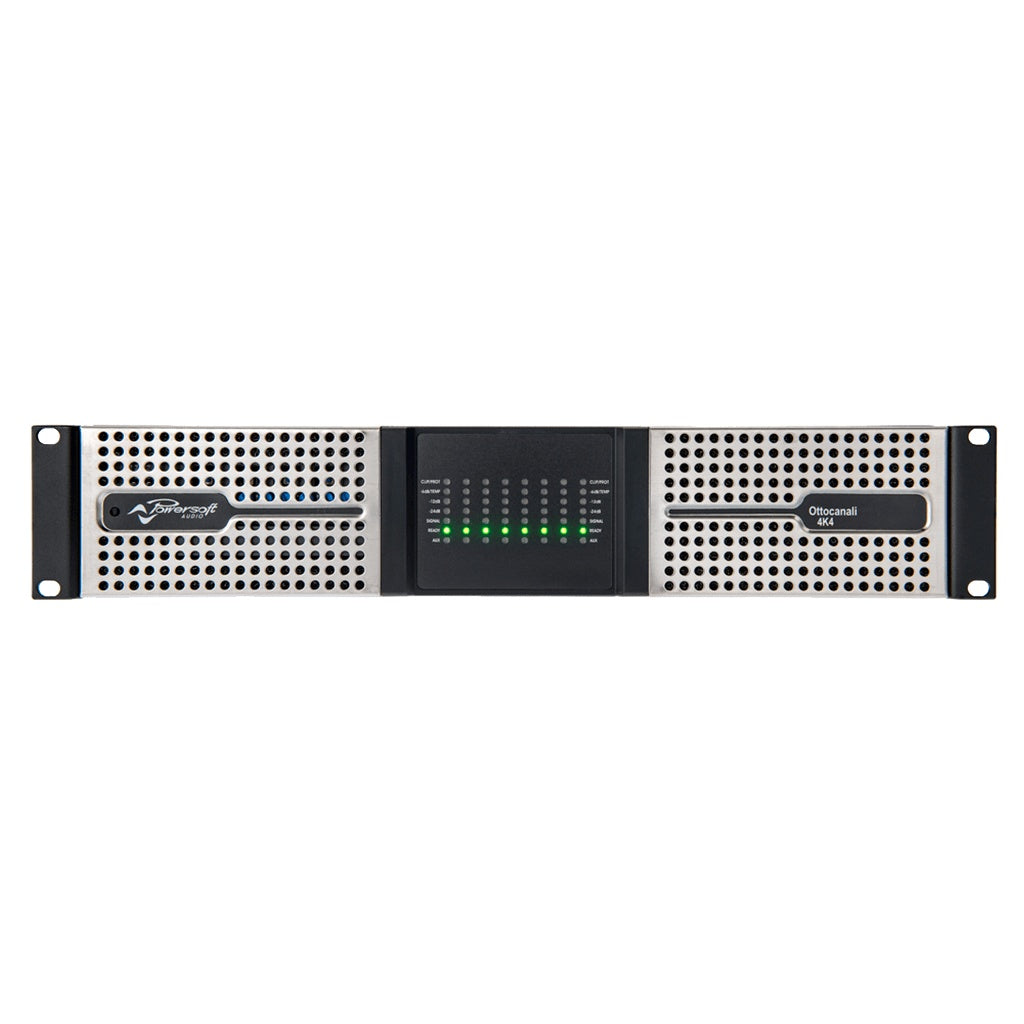

Powersoft Ottocanali DSP+D 8-Channel Power Amplifier With Dante | 4K4

Powersoft Ottocanali DSP+D 8-Channel Power Amplifier With Dante | 4K4

SoundPro Item: 58436 | Part Number: Ottocanali 4K4 DSP+D

$5,551.80
$5,844.00 $5,551.80
Your Price Sold out
MSRP: $5,844.00 | MAP: $5,551.80

Usually ships in 5-7 business days

  • Eight Independent Channels With Switchable Main And Aux Signal Inputs Per Channel
  • Dante Networking Inputs For Integration Into IP Audio Distribution Systems
  • Patented SRM Technology Recycles Reactive Energy To Reduce Heat And Operating Costs
  • Lo-Z And Hi-Z Output Support For Flexible Loudspeaker Topology In A Single Platform
  • Mono-Bridgeable Channel Pairs Expand Output Options Within The Same Frame
  • Onboard GPI/O, Alarm, And System Monitoring For Supervised Installation Environments
  • Universal Switch-Mode Power Supply With PFC For Stable Performance Across Mains Conditions
Log in or register for YOUR best price

The Powersoft Ottocanali DSP+D series is built for systems integrators and AV engineers managing medium- to large-scale installed audio environments where reliability, efficiency, and network integration are non-negotiable. Each platform delivers eight channels of Class D amplification with support for any combination of Lo-Z and Hi-Z output connections, making it adaptable across a wide range of loudspeaker topologies within a single rack unit. The series is available in multiple power ratings to match system requirements without over-specifying the amplification stage.

The DSP+D designation indicates onboard DSP combined with Dante inputs by Audinate, enabling seamless integration into Dante-based audio networks for centralized routing, monitoring, and control. This positions the Ottocanali DSP+D as a practical choice for airport terminals, convention centers, houses of worship, and performing arts venues where networked audio distribution and zone management are core system requirements.

Powersoft's patented SRM (Smart Rail Management) technology differentiates the Ottocanali platform from conventional Class D designs. By recycling reactive energy returning from loudspeakers back into the power supply rail, SRM actively reduces heat dissipation and lowers overall power draw, which translates to lower operating costs over the lifetime of a permanent install. Switchable main and aux signal inputs per channel, mono-bridgeable channel pairs, and onboard GPI/O, alarm, and system monitoring functions give integrators the control infrastructure needed for complex, supervised installations.

Downloads

View full details

Specifications

General
Model
Ottocanali 4K4 DSP+D
Channel Count
8
Amplifier Class
Class D
Audio
Maximum Power Output
4,000 W
Output Configuration
Lo-Z and Hi-Z
Channel Bridging
Mono-bridgeable channel pairs
Connectivity
Network Audio
Dante by Audinate
Signal Inputs
Switchable main/aux per channel
Control I/O
GPI/O
Power
Power Supply
Universal switch-mode with PFC
