Specifications
Electrical
Voltage
120V
Wattage
140W
Audio
Audio Switches
Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls
Volume - High Frequency (±6 dB, center 10 kHz, continuously variable); Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL
108 dB (@ 1 Meter)
Crossover Frequency
3.1 kHz
Frequency Response
35 Hz - 20 kHz
Input Impedance
10 kΩ
Connectivity

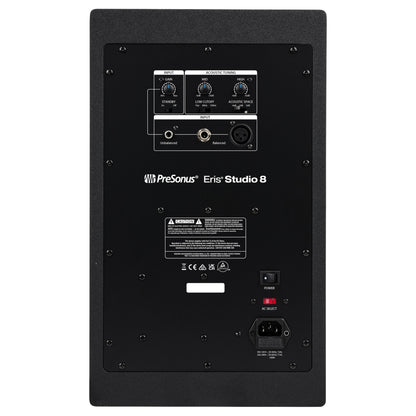

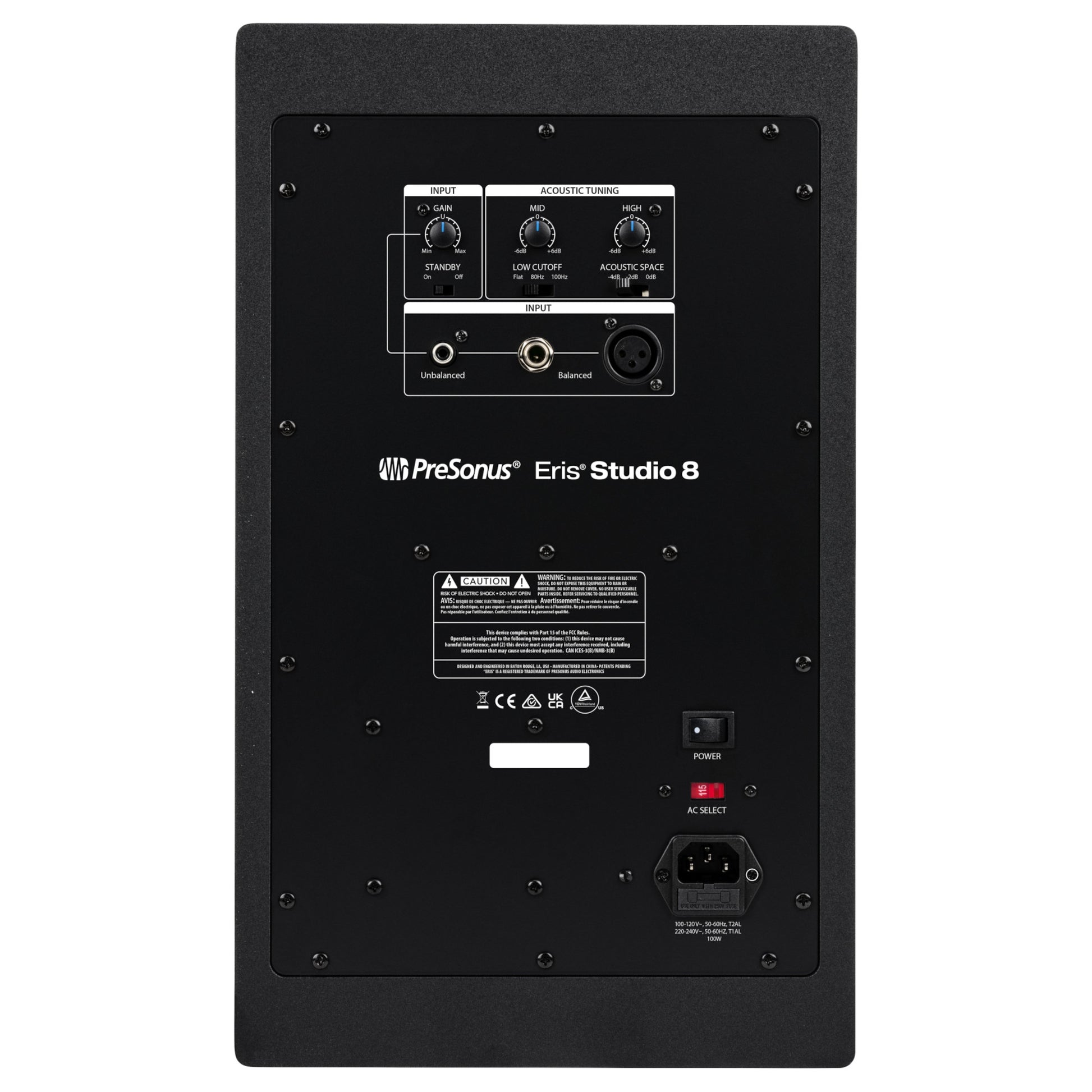

Monitor Inputs
1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
Construction
Hardware
Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
Identifiers
Connection Type
IEC
General
Monitors
Protections RF interferenceOutput-current limitingOver-temperatureTurn-on/off transientSubsonic filter
HF Transducers
1.25” Silk Dome Tweeter (Coaxial)
LF Transducers
8" Woven Glass Fiber Composite (Coaxial)
Monitor Amplifier Power
LF Amplifier - 75W, HF Amplifier - 65W
