Specifications
Dimensions
Height
2.25" (57.2 mm)
Depth
11.85" (301 mm)
Width
13.15" (334 mm)
Connectivity
Input / Output

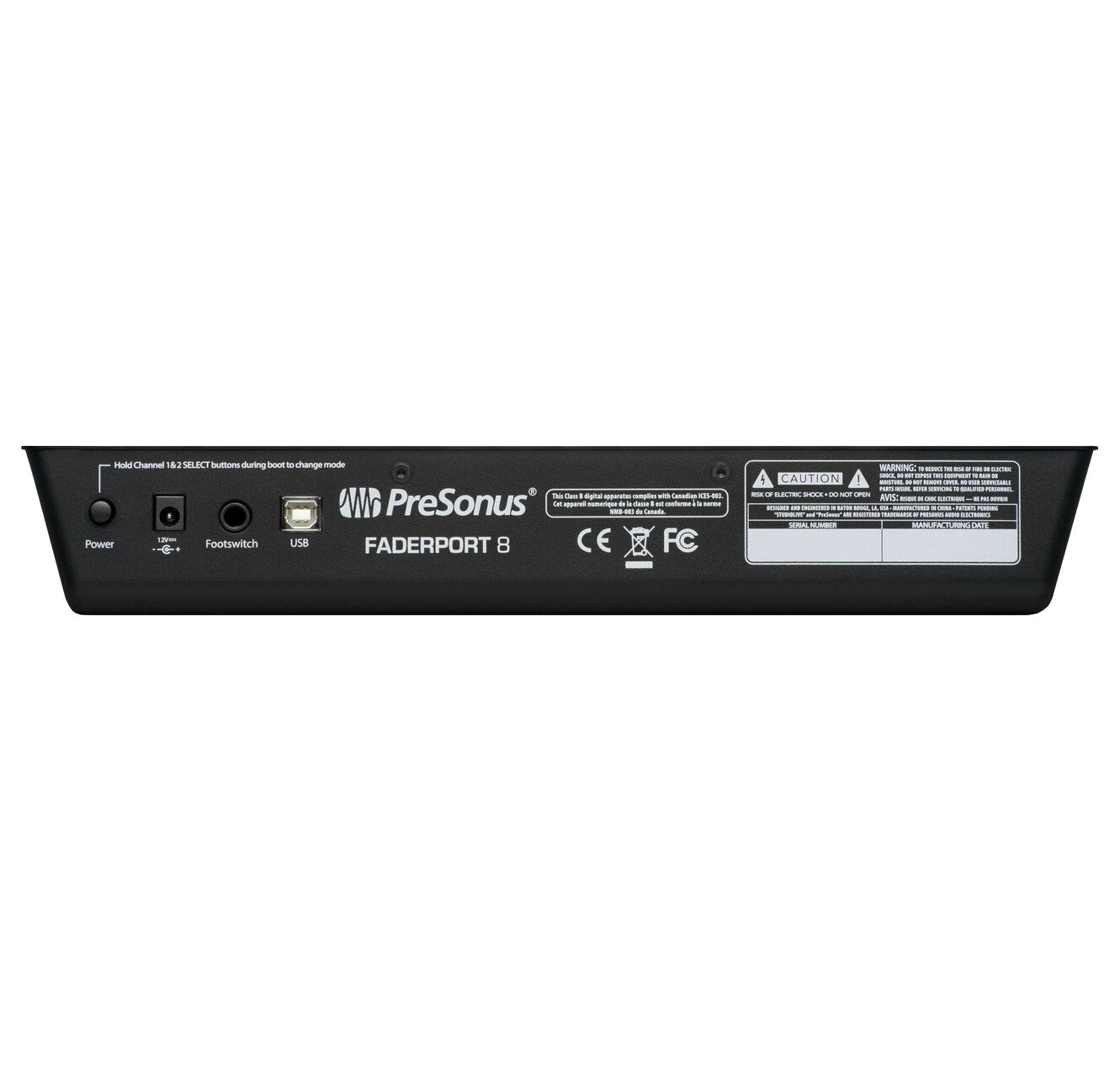

1 USB 2.0 port, 1 Footswitch jack for hands-free stop/start
Controls
Displays
8 digital scribble strip displays, timecode display, channel meters
Shipping
Weight
5 lbs (2.3 kg)
General
Faders

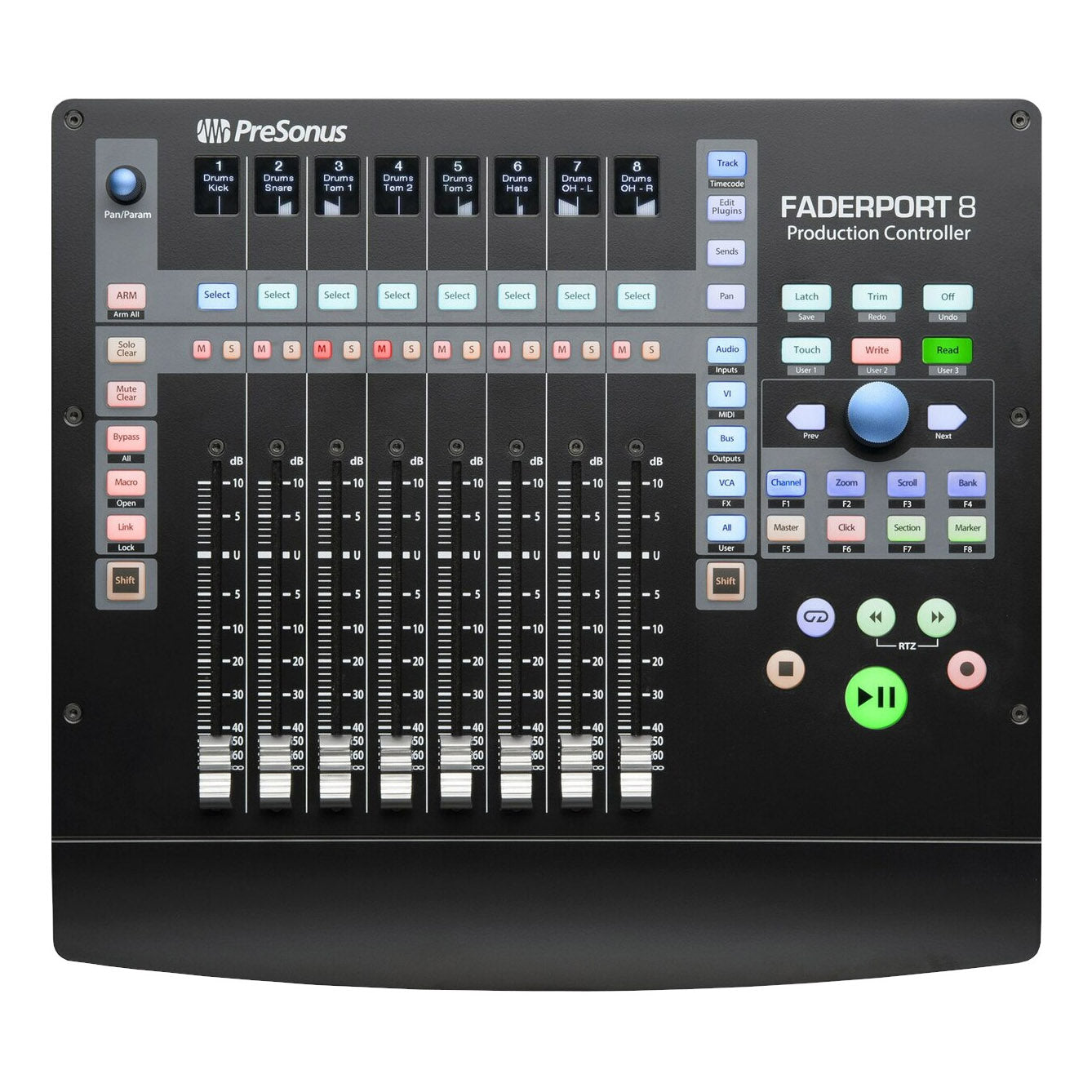

8 100 mm long-throw, touch-sensitive, motorized faders, Dual-servo motorized drive belt system for fast and quiet operation, Ultra-smooth feel and lightning fast, Heavy-duty construction
Resolution
10-bit, 1,024 steps
General Controls
Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls
Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls
Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality
Plug-in Edit, Bus Sends, Pan
Window View
Mix, Project, Transport, Undo
Navigation
Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Nudge
Console Management
Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
Kit Contents
Transport
Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
Power
Power
12 VDC, 2A external power supply
