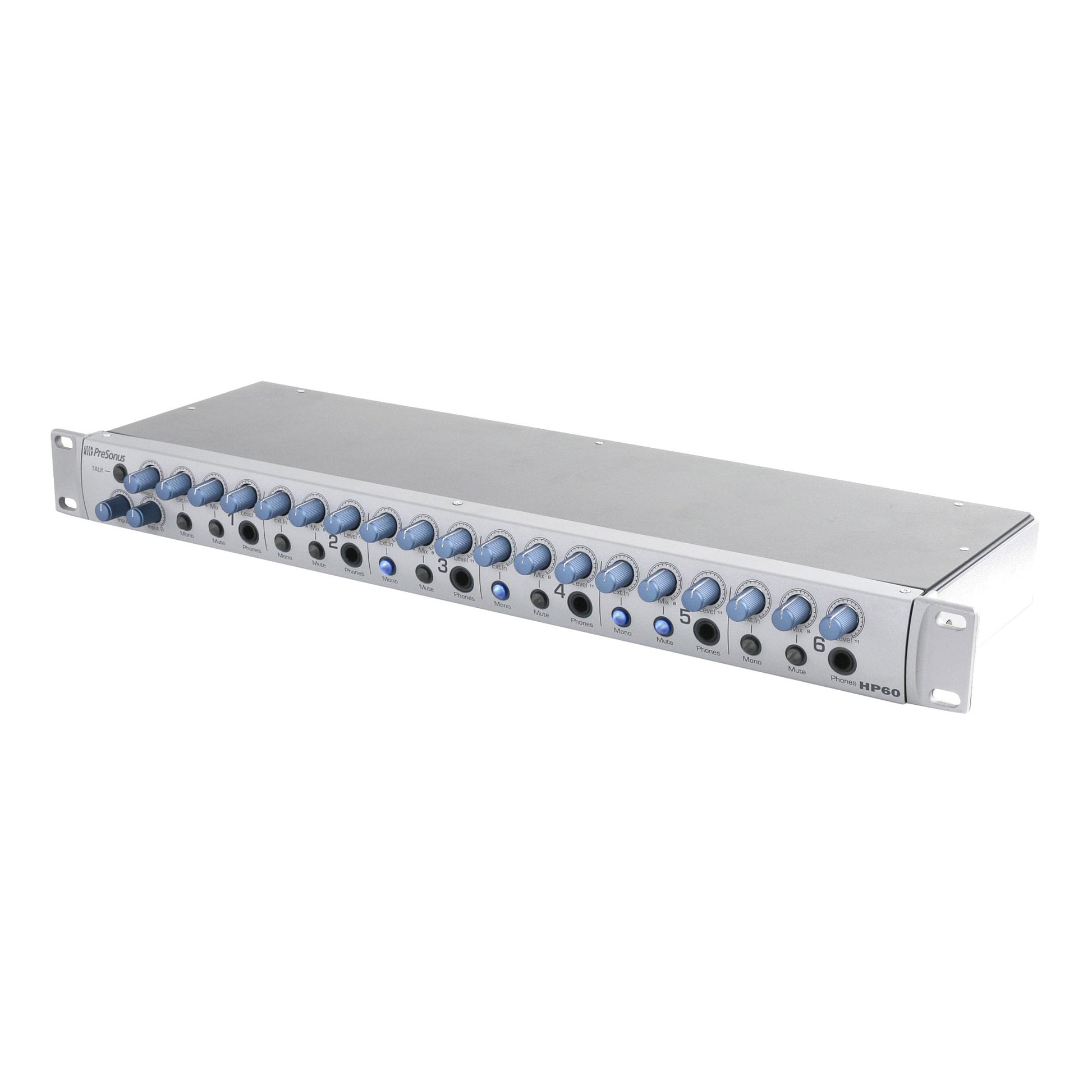

PreSonus HP60 Headphone Amplifier
PreSonus HP60 Headphone Amplifier
SoundPro Item: 47428 | Part Number: HP60
Usually ships in 5-7 business days
- 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
- 6 unbalanced stereo ¼" line outputs (1 per channel); carries a copy of the channel mix
- 6 unbalanced stereo ¼" external analog line inputs (1 per channel) for "more me," with trim controls
- 4 balanced ¼" analog line inputs (L/R Mix input pairs A and B)
- 1 balanced XLR Talkback input for external dynamic microphone
- 1 ¼" footswitch jack for hands-free Talkback operation
- 2 stereo input channels (A and B)
- 1U 19" rack-mountable, rugged steel chassis
- Internal power supply with standard IEC connector
Take command of your headphone system with the HP600 Headphone Amplifier from PreSonus®. The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones and a Mix control that sets relative levels for each headphone output. You also get an external stereo input with level control, mono, and mute for each channel so you can send each musician a feed of just their instrument or voice and separately control the levels for each. Field-tested and easy-to-use, the HP600 is an ideal solution to a host of common headphone-monitoring issues that simultaneously provides headphone mixes musicians will love.
- Inputs
- Inputs A and B Connector Type (2 ea.): ¼” TRS balanced
- External Input Connector Type: ¼” TRS stereo unbalanced
- Input Impedance: 10 kΩ
- Headphone Outputs
- Connector type: ¼” TRS stereo unbalanced
- Max Output Power: 150 mW/Ch.
- Frequency Response: 20 Hz - 20 kHz, ±0.5 dB, 60Ω load
- Headphone Impedance Working Range: 32Ω - 600Ω
- Power
- Internal supply, standard IEC connector: 115 or 230 VAC
- Physical
- Dimensions: 1/3U rack-mount (with standard rack tray, not included)
- Height: 1.75” (44.45 mm)
- Depth: 5.5” (139.7 mm)
- Width: 19” (482.6 mm)
- Weight: 8 lbs (3.63 kg)
