• PreSonus Studio Channel Vacuum-Tube Channel Strip
1 1

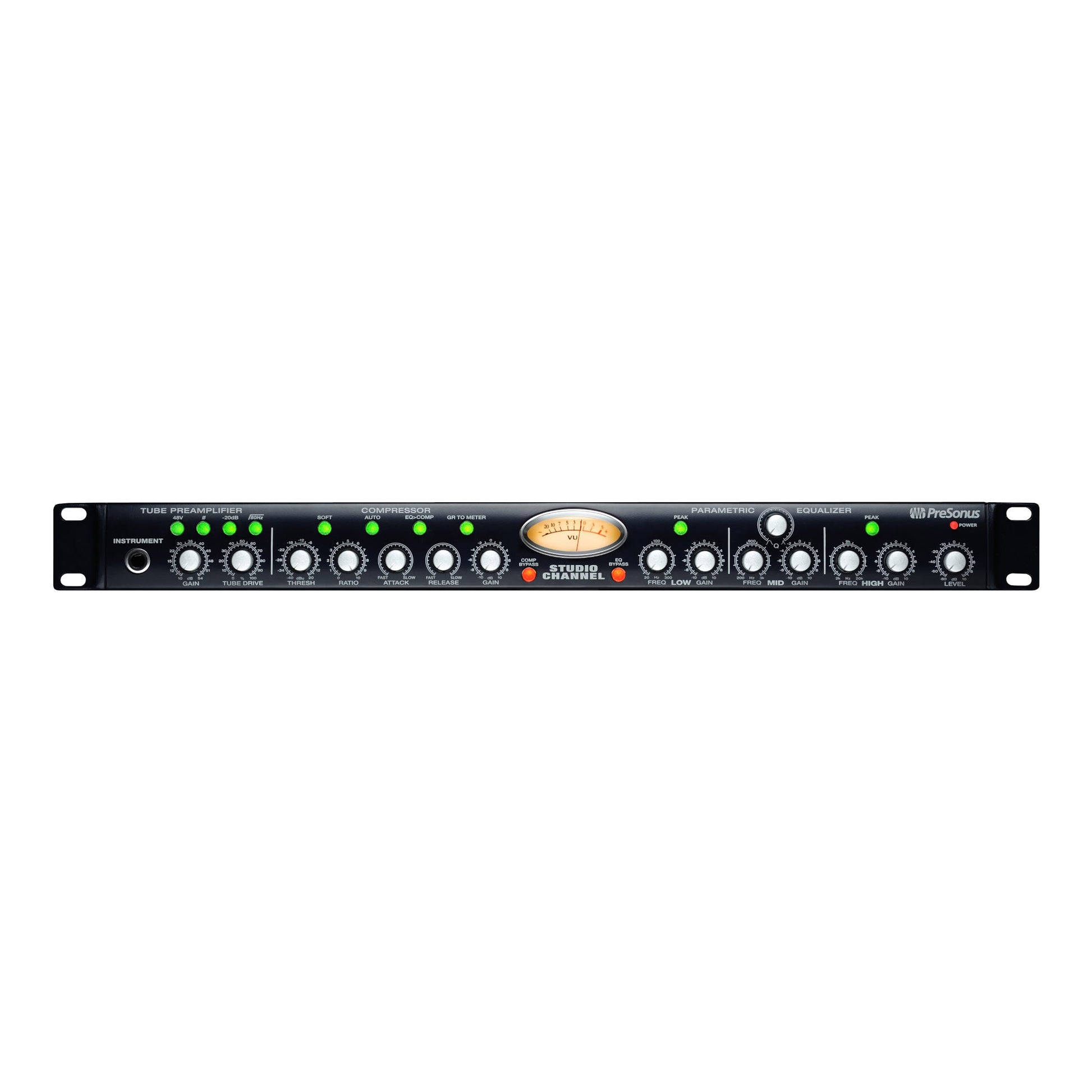

PreSonus Studio Channel Vacuum-Tube Channel Strip

PreSonus Studio Channel Vacuum-Tube Channel Strip

SoundPro Item: 47743 | Part Number: STUDIO CHANNEL

$419.99
$524.99 $419.99
Your Price Sold out
MSRP: $524.99 | MAP: $419.99

Usually ships in 5-7 business days

  • 1 channel with Class A 12AX7 vacuum-tube mic/instrument preamplifier
  • Gain control with +10 dB to +54 dB gain range
  • Tube Drive control
  • 48V phantom power switch
  • 80 Hz high-pass filter
  • -20 dB pad
  • Polarity-reverse switch
  • Fully Variable VCA compressor
  • Attack, Release, Ratio, Threshold, and (makeup) Gain
  • Auto Attack/Release switch
  • Soft/Hard Knee switch
  • Bypass switch
  • 3-band parametric equalizer
  • Gain, Frequency, and Q controls (mid band)
  • Gain and Frequency controls (low and high bands)
  • Shelving/peak switches (low and high bands)
  • Switchable pre-/post-compressor
  • Bypass switch
  • Master level control
  • Backlit VU meter - Gain Reduction to Meter switch (selects gain reduction or output gain)
  • 1 unbalanced 1/4” instrument input (front panel)
  • 1 balanced 1/4” line input
  • 1 balanced XLR mic input
  • 1 balanced 1/4” line output
  • 1 balanced XLR line output
  • 1U 19” rack-mountable, rugged steel chassis
  • Sealed, detented, metal rotary controls
  • External 16 VAC power supply
Log in or register for YOUR best price

The Studio Channel from PreSonus delivers great sound for virtually any type of recording or live music. Featuring tube preamplification, a VCA-based compressor, and three-band EQ, this channel strip delivers a huge variety of timbres. Produce luscious, in-your-face vocals, dynamic acoustic piano, and fat, solid bass guitar, not to mention crystal-clear acoustic guitars and cracking snare.

From slap bass, to snare drum, to vocals, the Studio Channel’s compressor allows you to record blazing-hot signals with accurate dynamics control. This channel strip’s three-band equalizer gives you the precision to carve out unwanted frequencies as well as tailor your tone to enhance your sound. Custom-designed amplifiers deliver sweet-sounding gain and cut for smooth highs; deep, solid lows; and clear midrange.

View full details
  • Channels1
  • Dynamic Range>115dB
  • Frequency Response10Hz to 50kHz
  • Internal Operating Level0dBu = 0dB
  • Microphone Preamp
    • Gain: -6dB to +66dB (±10dB trim on line input)
    • Noise Floor: -96dBu
    • EIN: -126dB
    • THD+Noise
      • 0% Tube Drive: <0.050%
      • 100% Tube Drive: <0.10%
    • Microphone Input Connector: XLR
    • Microphone Input Impedance: 1.3kΩ
    • Instrument Input Connector: 1/4" TS
    • Instrument Input Impedance: 1MΩ
    • Line Input Connector: 1/4" TRS
    • Line Input Impedance: 10kΩ
    • Phantom Power (switchable): +48V
    • Pad (switchable): 0dB / -20dB
    • Phase (switchable): 0°, 180°
    • High-Pass Filter (switchable): -3dB at 80Hz
  • Compressor
    • Threshold (variable): -40dBu to +-2dBu
    • Ratio (variable): 1-10 (1:1 to 10:1)
    • Attack (variable): 0.1 to 200 ms
    • Release (variable): 0.05 ms to 3S
    • Gain Makeup: -10dB to +10dB
    • Metering: Analog VU (Gain Reduction/Output)
  • Equalizer
    • LF Band Controls
      • Frequency: variable from 40Hz to 500kHz
      • Gain: variable between ±10dB
      • Q: 0.7 (on Peak setting)
    • MF Band Controls
      • Frequency: variable from 200Hz to 3kHz
      • Gain: variable from -10dB to +10dB
      • Q: variable from 0.7 to 2.5
    • HF Band Controls
      • Frequency: variable from 2kHz to 20kHz
      • Gain: variable between ±10dB
      • Q: 0.7 (on Peak setting)
  • Master
    • Output Fader: -80dB to +10dB
    • Output Connectors: XLR balanced and 1/4" TRS balanced/unbalanced
    • Output Impedance: 51Ω
    • Metering (Output level): Analog VU (-20dBu to +6dBu)
    • Metering (Gain Reduction): Analog VU -20dB to 0dB
    • Output Headroom: +22dBu
  • Power Supply
    • Type: linear
    • Input: 12 VAC/1000mA
    • Power Requirements (continuous): 16W
    • Transformer: external
  • Dimensions (HxDxW)1.75" x 5.5" x 19" (1U rackmount)
  • Weight5 pounds
