• PreSonus StudioLive AR12c 12-Channel Analog Mixer
1 1

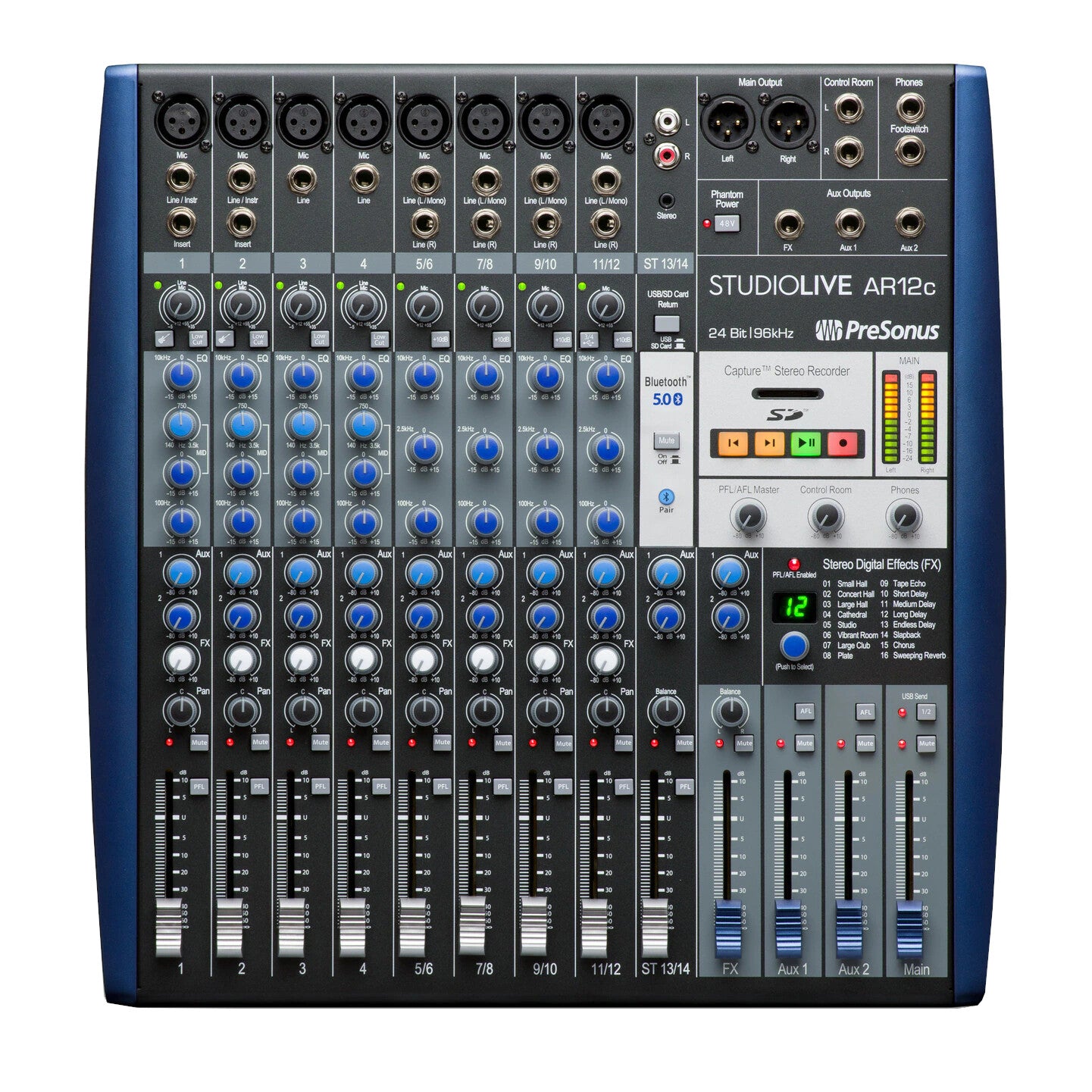

PreSonus StudioLive AR12c 12-Channel Analog Mixer

PreSonus StudioLive AR12c 12-Channel Analog Mixer

SoundPro Item: 44209 | Part Number: 2779200101

$499.99
$944.99 $499.99
Your Price Sold out
MSRP: $944.99 | MAP: $499.99

Usually ships in 5-7 business days

  • 14x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface
  • Record every channel plus the main mix
  • 2x2 SD recorder to capture the main mix
  • Supports SD™ and SDHD™ formats up to 32 GB
  • 14-channel analog mixer
  • 8 balanced microphone inputs with XMAX mic preamps
  • 2 insert points
  • 2 instrument/line inputs
  • 12 balanced line level inputs
  • 4 mono
  • 4 stereo pairs
  • Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
  • 4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
  • 2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
  • L/R Control Room outputs with level control
  • Headphone output with level control
  • Highpass filter on every channel
  • 3-band quasi-parametric EQ with sweepable mid-band on each mono channel
  • 3-band semi-parametric EQ on each stereo channel
  • Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
  • Mic/line boost on stereo channels for low-level input sources and consumer devices
  • Internal power supply
  • Standard IEC power connector
  • Sturdy metal construction
  • 60 mm faders
  • Optional rackmount kit (sold separately)
  • Compatible with iOS and iPadOS devices including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhones
Log in or register for YOUR best price

Packed with all the connections and controls needed to mix and record in the studio and on the stage, the StudioLive AR12c from PreSonus is the ultimate recording solution. A mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators, its hybrid design makes it simple to record studio productions and mix live shows from a single, intuitive console. The StudioLive AR12c operates at up to 96 kHz for high-definition mixing and recording.

View full details

Specifications

Dimensions
Bit Depth
24-bit
Bit Depth Recording
24-bitPlayback: 16- or 24-bit
Electrical
THD + N (min. Gain, A-wtd)
<0.01%
THD + N (1 Khz, -1 dBFS, A-wtd)
<0.01%
THD + N (1 Khz, -1 dBFS, unwtd)
<0.01%
Input Voltage Range
90 to 240 VAC
Audio
Maximum Input Level (unity gain)
+9 dBu ± 1.0 dB
Gain Control Range
43 dB (+12 to +55 dB)
Frequency Response to Analog Outputs
20 Hz to 20 kHz, + 0.5 / -1.5 dB
Frequency Response to USB (Direct)
20 Hz to 20 kHz, + 0.5 / -1.5 dB
Input Impedance
1 kΩ
Phantom Power
+ 48V, ± 3V, Global
Dynamic Range (min. Gain, A-wtd)
> 105 dB
Dynamic Range (mid. Gain, unwtd)
> 108 dB
Channels
0 dB or +10 dB (+10 dB Boost)
Input Impedance (Balanced)
10 kΩ
Frequency Response
20 Hz to 20 kHz, + 0.5/-1.5 dB
Dynamic Range (A-wtd)
> 108 dB
Output Impedance
100 Ω
Maximum Output Level
150 mW / channel @ 60 Ω
Headphone Output
THD + N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): <0.01%
ADC Dynamic Range (Component)
114 dB
Digital Audio
ADC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB, DAC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB
DAC Dynamic Range (Component)
114 dB
Signal-to-Noise (a-weighted)
-96 dB
Connectivity
S / N Ratio to Outputs (+4 dBu)
94 dB
Instrument Inputs
Maximum Input Level (min. Gain, 1 kHz@0.5% THD + N): +9 dBu ±1.0 dB
Line Inputs
Maximum Input Level (min. Gain, 1 kHz@0.5% THD + N): +26 dBu ±1.0 dB, S / N Ratio to Analog Outputs (+4 dBu): 85 dB
Type (Main Outputs)
XLR Male, Impedance Balanced
Type (Control Room, Monitor, FX Outputs)
¼” TRS Female, Balanced
Rated Output Level (Main Outputs)
+24 dBu, ±1.0 dB
Rated Outputs Level (Control Room, Monitor, FX Outputs)
+18 dBu
Main, Control Room, Monitor, and FX Outputs
THD + N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): <0.01%
Connector
IEC
Environmental
Recommended Ambient Operating Temperature
0° to 40° Celsius / 32° to 104° Fahrenheit
General
Type
XLR Female, Class A XMAX
Microphone Preamp
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd): Mono Channels: <128 dBu, Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB
Control Range Mono Channels
40 dB, ± 1 dB (-5 to +35 dB)Stereo
System Crosstalk
Input to Output (Ref = + 4dBu, 20 Hz to 20 kHz, unwtd): -90 dBu, Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -85 dBu
Signal
-30 dBFS (pre-EQ)
Clip
-3.0 dB before clip (pre or post-EQ)
Low Cut
100 Hz, -18 dB/Octave
High Shelving
±15 dB @ 10 kHz
Mid Peaking (Mono Channels)
±15 dB @ 140 Hz to 3.5 kHz (variable)
Mid Peaking (Stereo Channels)
±15 dB @ 2.5 kHz
Mid-Band Q
Boost: 1.0, Cut: 2.5
Low Shelving
±15 dB @ 100 Hz
Host Interface
USB 2.0
Internally Supported Sample Rates
44.1, 48, 88.2, 96 kHz
Jitter
<80 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation
> 60 dB (1 ns in => 1 ps out)
Supported Media Format
FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
Media Storage Capacity
SD card: 2 GB; SDHC card: 32 GB
Recording File Format
Stereo WAV
Playback File Formats
Stereo WAV, MP3 (96-320 kbs, 32/44.1/48 kHz)
Sampling Rate (WAV)
44.1 kHz
Physical
Height 3.5” (89 mm), Width (Chassis only) 15" (381 mm), Depth 15.6” (397 mm), Weight 11.9 lbs (5.4 kg)
